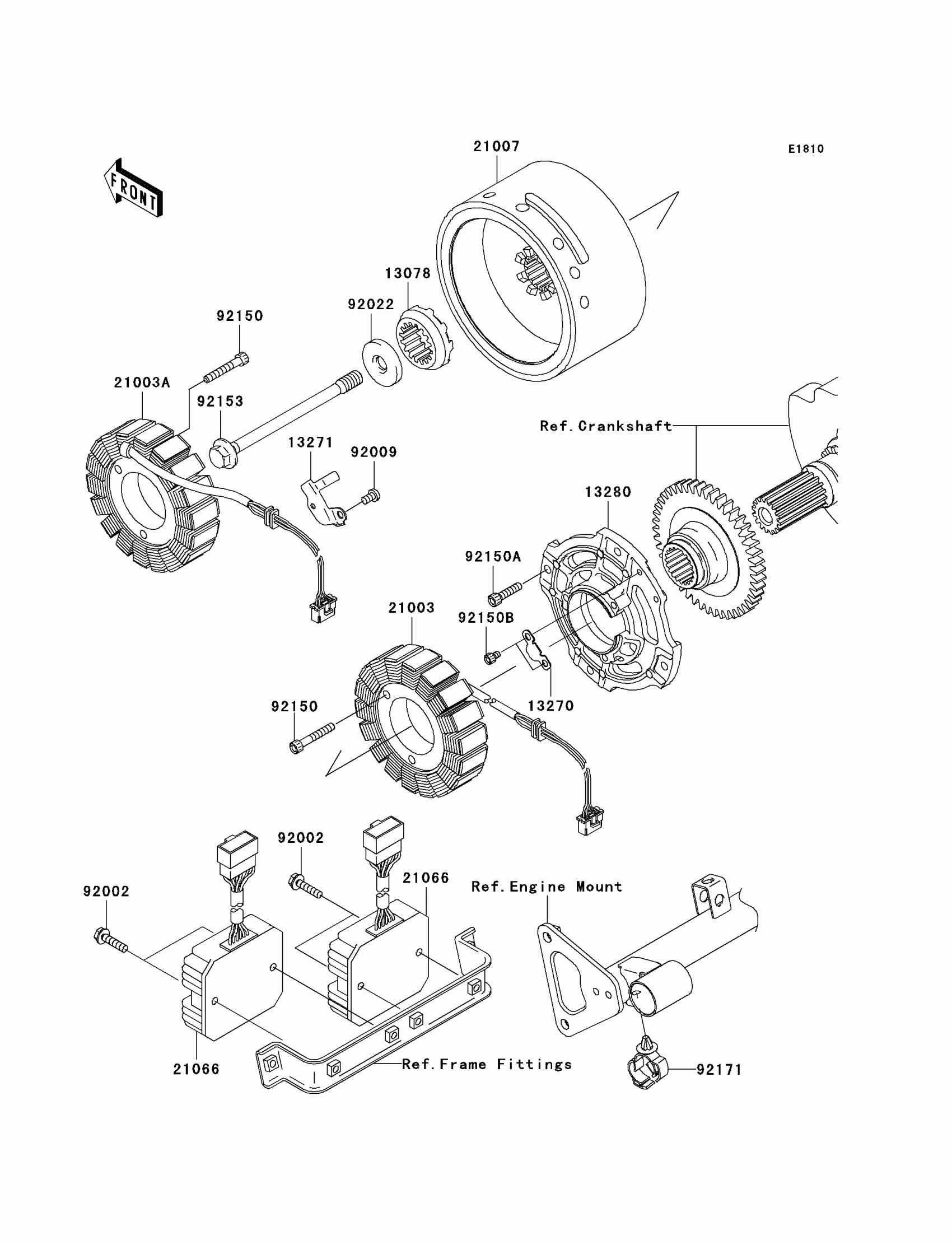

Kawasaki Vulcan 1600 Nomad Generator Diagram

Description

Price

13078

RATCHET

13078-1066

$70.12

13270

PLATE

13270-1925

$2.37

13271

PLATE

13271-1325

$3.32

13280

HOLDER

13280-1069

$85.83

21003

STATOR,INNER

21003-0007

$687.75

21003A

STATOR,OUTER

21003-0008

$687.75

21007

ROTOR

21007-1369

$1,013.14

21066

REGULATOR-VOLTAGE

21066-1106

$266.06

92002

BOLT,FLANGED,6X25

92002-1086

$4.18

92009

SCREW

92009-1768

Unavailable

92022

WASHER,12X40X6

92022-1904

$13.51

92150

BOLT,SOCKET,6X35

92150-1484

$4.67

92150A

BOLT,SOCKET,6X22

92150-1654

Unavailable

92150B

BOLT,5X8

92150-1955

$4.08

92153

BOLT,12X154

92153-1105

$32.33

92171

CLAMP,CLIP,DIA=20

92171-0068

$2.29
