2005 Kawasaki Vulcan 1600 Nomad Air Cleaner Diagram

← All diagrams

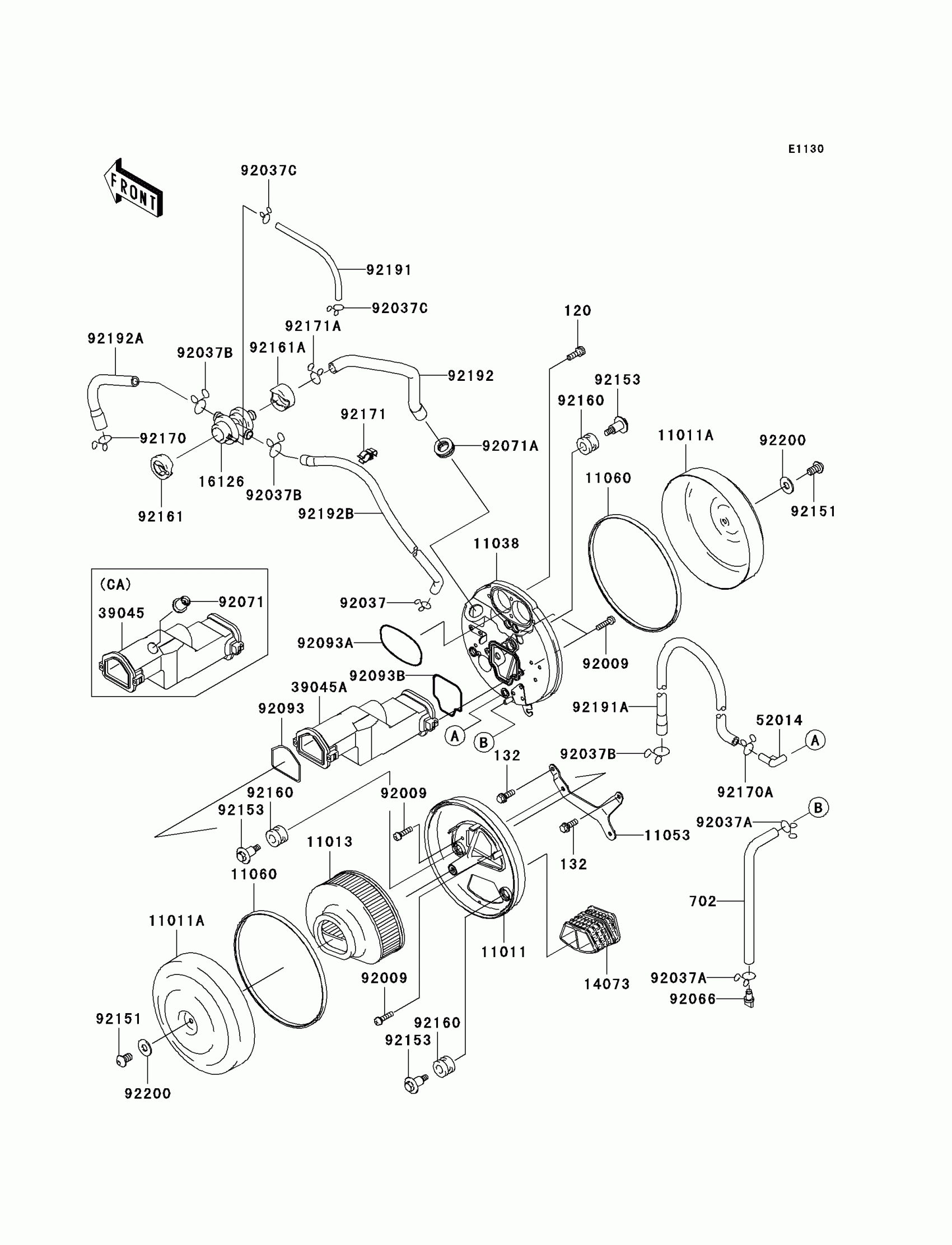

Find the part on the Air Cleaner diagram for your 2005 Kawasaki Vulcan 1600 Nomad, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2005 Kawasaki Vulcan 1600 Nomad Air Cleaner Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11011

CASE-AIR FILTER,LH

11011-1672

1
Out of stock

11011A

CASE-AIR FILTER,COVER

11011-1673

1
Out of stock

11013

ELEMENT-AIR FILTER

11013-1305

1
Out of stock

11038

CASE-ASSY-AIR FILTER,RH

11038-0005

1
Out of stock

11053

BRACKET,AIR FILTER,LH

11053-1208

1
Out of stock

11060

GASKET,AIR FILTER CASE

11060-1968

1
Out of stock

14073

DUCT,INTAKE

14073-1863

1
Out of stock

16126

VALVE,AIR SWITCH

16126-0005

1
Out of stock

52014

ELBOW

52014-1083

1
Out of stock

92009

SCREW,PAN-WP-CROS,5X20

92009-1905

1
Out of stock

92037

CLAMP

92037-1468

1
Out of stock

92037A

CLAMP,TUBE

92037-147

1
Out of stock

92037B

CLAMP

92037-1593

1
Out of stock

92037C

CLAMP

92037-1712

1
Out of stock

92066

PLUG,DRAIN

92066-1211

1
Out of stock

92071A

GROMMET,AIR FILTER

92071-1028

1
Out of stock

92093

SEAL,DUCT,LH

92093-1459

1
Out of stock

92093A

SEAL

92093-1485

1
Out of stock

92093B

SEAL,DUCT,RH

92093-1491

1
Out of stock

92151

BOLT,8X14

92151-1438

1
Out of stock

92153

BOLT,6X14X9.5

92153-0498

1
Out of stock

92160

DAMPER

92160-1594

1
Out of stock

92161

DAMPER,OUTSIDE

92161-0044

1
Out of stock

92161A

DAMPER,INSIDE

92161-0045

1
Out of stock

92170

CLAMP

92170-1017

1
Out of stock

92170A

CLAMP,TUBE

92170-1445

1
Out of stock

92170B

CLAMP

92170-1695

1
Out of stock

92171

CLAMP

92171-0131

1
Out of stock

92191

TUBE,4X9X230

92191-0033

1
Out of stock

92191A

TUBE,BREATHER

92191-1820

1
Out of stock

92192

TUBE,AIR SWITCH-FILTER CASE

92192-0011

1
Out of stock

92192A

TUBE,FR HEAD-AIR SWITCH

92192-0025

1
Out of stock

92192B

TUBE,AIR SWITCH-RR HEAD

92192-0026

1
Out of stock

92200

WASHER,8.5X20X1.6

92200-1463

1
Out of stock

120

BOLT-SOCKET,6X16

120S0616

1
Out of stock

132

BOLT-FLANGED-SMALL,6X16

132J0616

1
Out of stock

702

TUBE-RUBBER,7X10X230

702A07230

1
Out of stock

39045

DUCT-ASSY,JOINT

39045-0001

1
Out of stock

39045A

DUCT-ASSY,CENTER

39045-0003

1
Out of stock

92071

GROMMET

92071-0003

1
Out of stock
