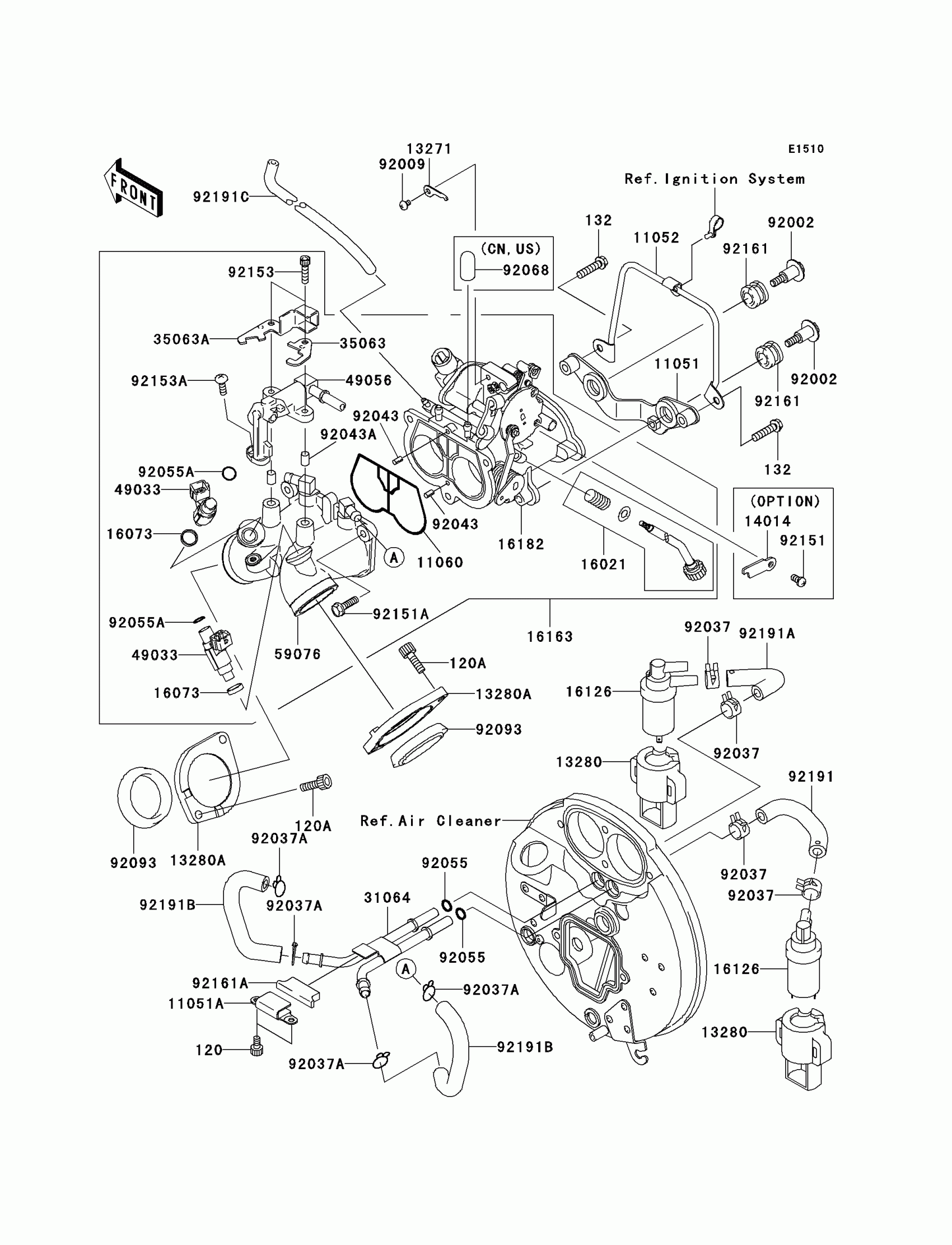

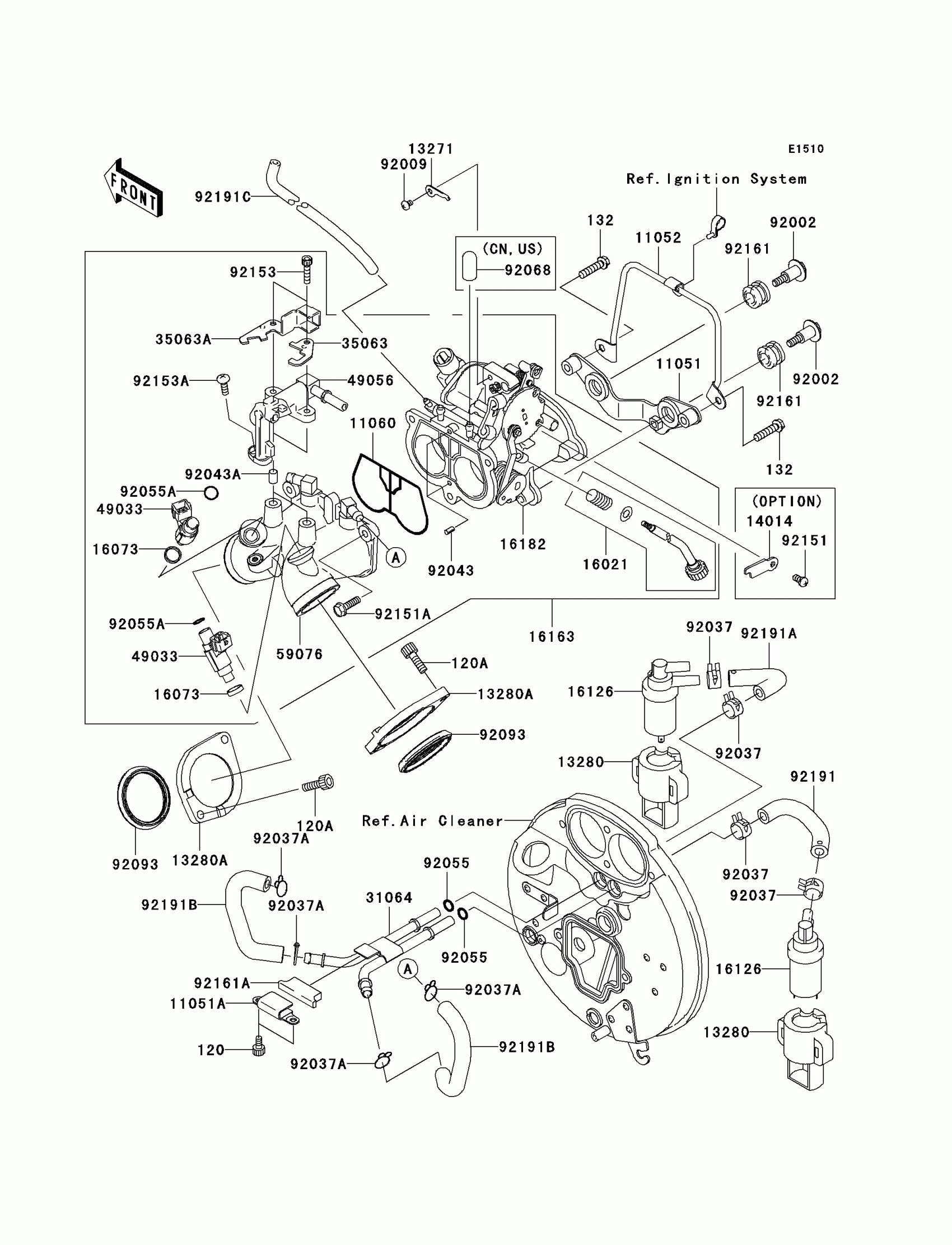

Kawasaki Vulcan 1600 Nomad Throttle Diagram

#

Description
Price

11051

BRACKET

11051-1333

$42.27

11051A

BRACKET

11051-1345

$7.59

11052

BRACKET,HIGH TENSHION CORD

11052-1067

$58.07

11060

GASKET,THROTTLE BODY

11060-1928

$49.92

13271

PLATE,STARTER CABLE

13271-1314

$2.39

13280

HOLDER

13280-1139

$30.34

13280A

HOLDER

13280-1154

$22.39

14014

PLATE-POSITION,25KW

14014-1142

$12.71

16021

SCREW-THROTTLE STOP

16021-1227

$103.93

16073

INSULATOR

16073-3707

$4.65

16126

VALVE

16126-1372

$76.34

16163

THROTTLE-ASSY

16163-1126

$1,816.27

16182

BODY-THROTTLE

16182-0001

$1,331.44

31064

PIPE-COMP

31064-1242

$56.56

35063

STAY

35063-0030

$19.92

35063A

STAY

35063-0038

$19.92

49033

NOZZLE-INJECTION

49033-3707

$112.51

49056

PIPE-INJECTION

49056-0002

$206.39

59076

MANIFOLD-INTAKE

59076-0002

$513.90

92002

BOLT,FLANGED,6X14X13.5

92002-1595

$9.94

92009

SCREW,4X6

92009-1903

$1.80

92037

CLAMP,HOSE CLIP

92037-1181

$2.31

92037A

CLAMP,12.5MM

92037-1271

$1.73

92043

PIN,THROTTLE BODY

92043-1600

$2.75

92043A

PIN,DELIVERY PIPE

92043-1601

$2.75

92055

RING-O,7.8X3.5

92055-029

$3.51

92055A

RING-O,INJECTION NOZZLE

92055-1622

$1.42

92093

SEAL

92093-1484

Unavailable

92151

BOLT,5X10,25KW

92151-1528

$4.39

92151A

BOLT,THROTTLE BODY

92151-1587

$3.73

92153

BOLT,5X20

92153-0378

$7.41

92153A

BOLT

92153-0379

$5.10

92161

DAMPER

92161-1058

$5.10

92161A

DAMPER

92161-1062

$9.56

92191

TUBE,REAR VALVE,RED

92191-1367

Unavailable

92191A

TUBE,FRONT VALVE,BLUE

92191-1368

Unavailable

120

BOLT-SOCKET,5X10

120S0510

Unavailable

120A

BOLT-SOCKET,6X20

120Z0620

Unavailable

132

BOLT-FLANGED-SMALL,6X25

132J0625

Unavailable

92191B

TUBE

92191-1608

Unavailable

92191C

TUBE,THROTTLE-BOOST SENSOR

92191-1821

$10.80

92068

PLUG,12X25

92068-006

$3.25
