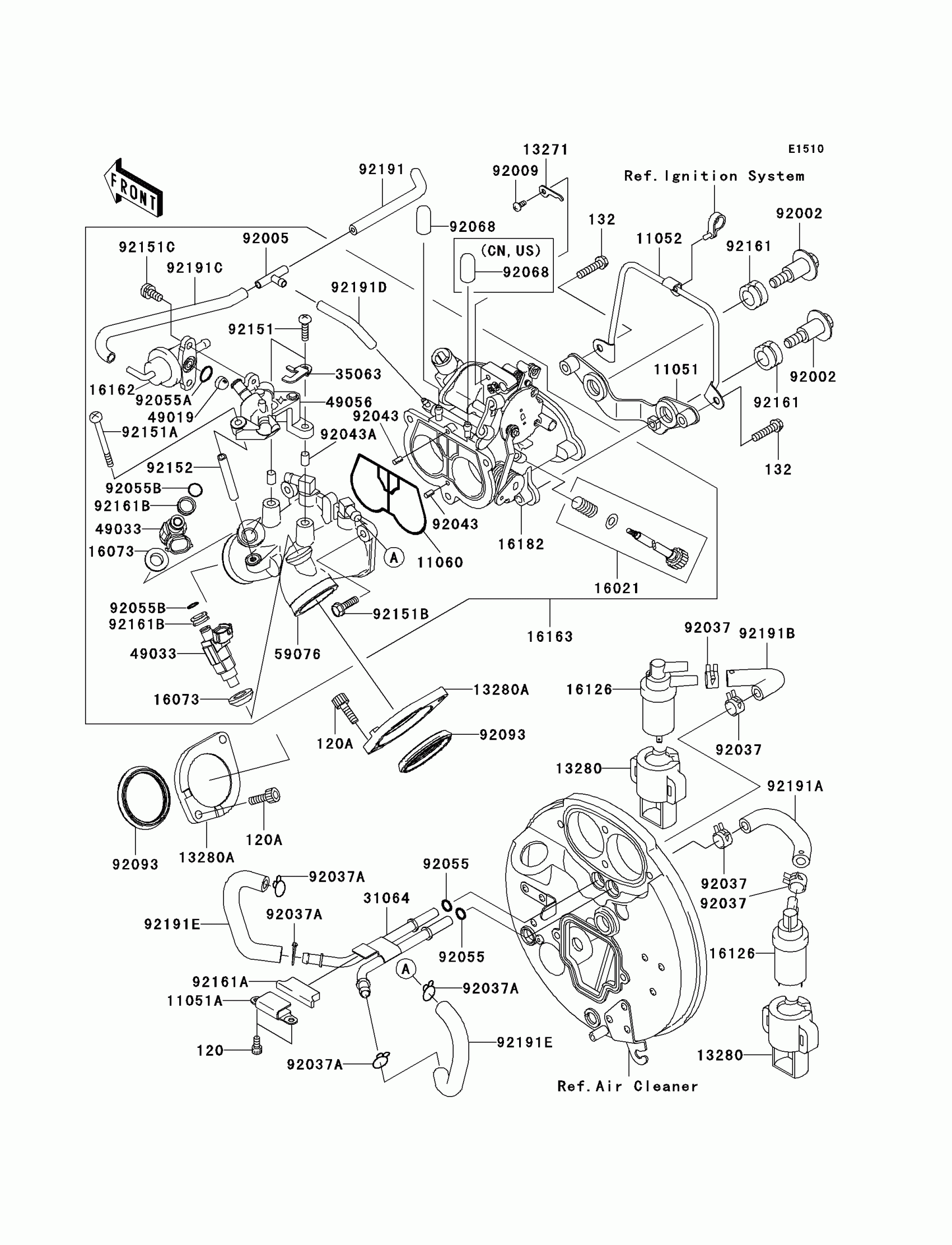

Find the part on the Throttle diagram for your 2005 Kawasaki Vulcan 1600 Mean Streak, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2005 Kawasaki Vulcan 1600 Mean Streak Throttle Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11051

BRACKET

11051-1333

1
Out of stock

11051A

BRACKET

11051-1345

1
Out of stock

11052

BRACKET,HIGH TENSHION CORD

11052-1067

1
Out of stock

11060

GASKET,THROTTLE BODY

11060-1928

1
Out of stock

13271

PLATE,STARTER CABLE

13271-1314

1
Out of stock

13280

HOLDER

13280-1139

1
Out of stock

13280A

HOLDER

13280-1154

1
Out of stock

16021

SCREW-THROTTLE STOP

16021-1227

1
Out of stock

16073

INSULATOR

16073-1119

1
Out of stock

16126

VALVE

16126-1372

1
Out of stock

16162

REGULATOR-FUEL

16162-1054

1
Out of stock

16163

THROTTLE-ASSY

16163-1113

1
Out of stock

16182

BODY-THROTTLE

16182-1003

1
Out of stock

31064

PIPE-COMP

31064-1242

1
Out of stock

35063

STAY

35063-1148

1
Out of stock

49019

FILTER-FUEL,STRAINER

49019-3707

1
Out of stock

49033

NOZZLE-INJECTION

49033-1057

1
Out of stock

49056

PIPE-INJECTION

49056-1054

1
Out of stock

59076

MANIFOLD-INTAKE

59076-1113

1
Out of stock

92002

BOLT,FLANGED,6X14X13.5

92002-1595

1
Out of stock

92005

FITTING

92005-1366

1
Out of stock

92009

SCREW,4X6

92009-1903

1
Out of stock

92037

CLAMP,HOSE CLIP

92037-1181

1
Out of stock

92037A

CLAMP,12.5MM

92037-1271

1
Out of stock

92043

PIN,THROTTLE BODY

92043-1600

1
Out of stock

92043A

PIN,DELIVERY PIPE

92043-1601

1
Out of stock

92055

RING-O,7.8X3.5

92055-029

1
Out of stock

92055A

RING-O,FUEL REGULATOR

92055-1620

1
Out of stock

92055B

RING-O,INJECTION NOZZLE

92055-1622

1
Out of stock

92068

PLUG,12X25

92068-006

1
Out of stock

92093

SEAL

92093-1484

1
Out of stock

92151

BOLT,5X20

92151-1585

1
Out of stock

92151A

BOLT,5X75

92151-1586

1
Out of stock

92151B

BOLT,THROTTLE BODY

92151-1587

1
Out of stock

92151C

BOLT,6X12

92151-1588

1
Out of stock

92152

COLLAR,DELIVERY PIPE

92152-1206

1
Out of stock

92161

DAMPER

92161-1058

1
Out of stock

92161A

DAMPER

92161-1062

1
Out of stock

92161B

DAMPER,INJECTION NOZZLE

92161-1083

1
Out of stock

92191

TUBE,THROTTLE-BOOST

92191-1298

1
Out of stock

120

BOLT-SOCKET,5X10

120S0510

1
Out of stock

120A

BOLT-SOCKET,6X20

120Z0620

1
Out of stock

132

BOLT-FLANGED-SMALL,6X25

132J0625

1
Out of stock

92191A

TUBE,REAR VALVE,RED

92191-1367

1
Out of stock

92191B

TUBE,FRONT VALVE,BLUE

92191-1368

1
Out of stock

92191C

TUBE,L=130

92191-1402

1
Out of stock

92191D

TUBE,L=55

92191-1403

1
Out of stock

92191E

TUBE

92191-1608

1
Out of stock
