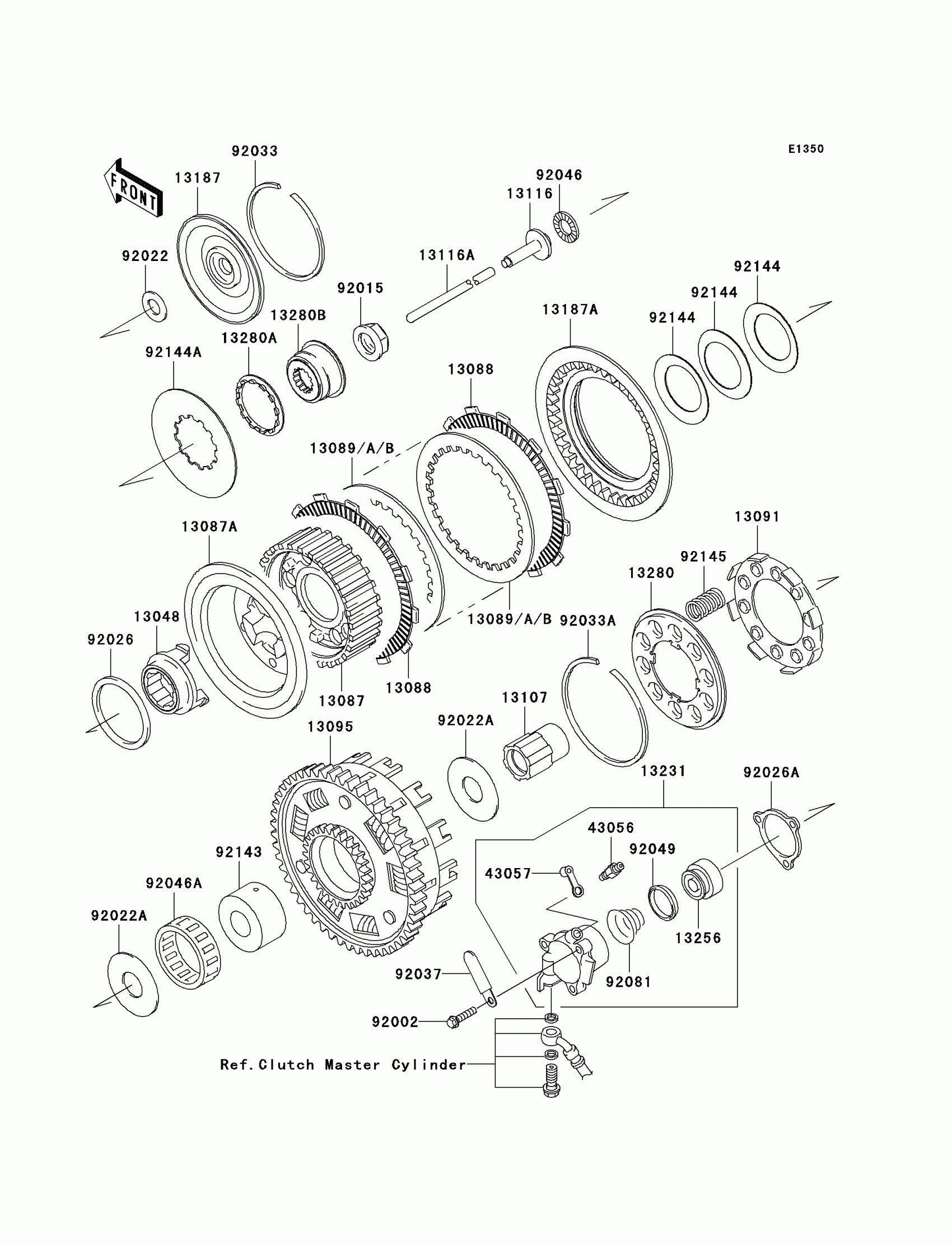

Kawasaki Vulcan 1600 Mean Streak Clutch Diagram

#

Description
Price

13048

CAM-DAMPER

13048-1087

Unavailable

13087

HUB-CLUTCH,OUTER

13087-1103

$251.85

13087A

HUB-CLUTCH,INNER

13087-1110

$321.81

13088

PLATE-FRICTION

13088-1146

$13.33

13089

PLATE-CLUTCH,T=2.0

13089-1075

Unavailable

13089A

PLATE-CLUTCH,T=1.6

13089-1080

Unavailable

13089B

PLATE-CLUTCH,T=2.3

13089-1081

Unavailable

13091

HOLDER,DAMPER SPRING

13091-1495

$102.58

13095

HOUSING-COMP-CLUTCH

13095-1395

$1,023.70

13107

SHAFT,CLUTCH CAM DAMPER

13107-1237

$104.77

13116

ROD-PUSH,CLUTCH

13116-1102

$37.48

13116A

ROD-PUSH

13116-1132

$27.39

13187

PLATE-CLUTCH OPERATING

13187-1063

$49.66

13187A

PLATE-CLUTCH OPERATING

13187-1066

$97.66

13231

RELEASE-ASSY-CLUTCH

13231-1071

$148.86

13256

PISTON

13256-1052

$52.02

13280

HOLDER,DAMPER SPRING

13280-1303

$109.29

13280A

HOLDER

13280-1306

$109.29

13280B

HOLDER

13280-1307

$59.05

43056

BREATHER

43056-1055

Unavailable

43057

CAP-BREATHER

43057-1001

$3.73

92002

BOLT,6X25

92002-1612

$4.46

92015

NUT,20MM

92015-1461

$23.66

92022

WASHER,15.1X29X1.0

92022-1463

$3.44

92022A

WASHER,25.3X56X2.0

92022-1857

$13.51

92026

SPACER,59X70X3.5

92026-1043

$30.12

92026A

SPACER,CLUTCH RELEASE

92026-1263

$12.66

92033

RING-SNAP

92033-1238

$14.81

92033A

RING-SNAP

92033-1239

Unavailable

92037

CLAMP,L=45

92037-1539

$4.42

92046

BEARING-NEEDLE,AXK1102

92046-1052

$10.99

92046A

BEARING-NEEDLE,RS40/29A

92046-1175

$40.50

92049

SEAL-OIL,PISTON

92049-1165

$14.81

92081

SPRING,CLUTCH RELEASE

92081-1644

$6.48

92143

COLLAR,INPUT SHAFT

92143-1076

$54.08

92144

SPRING,LIMITER

92144-1188

$10.12

92144A

SPRING,CLUTCH

92144-1934

$32.08

92145

SPRING

92145-1243

$7.33
