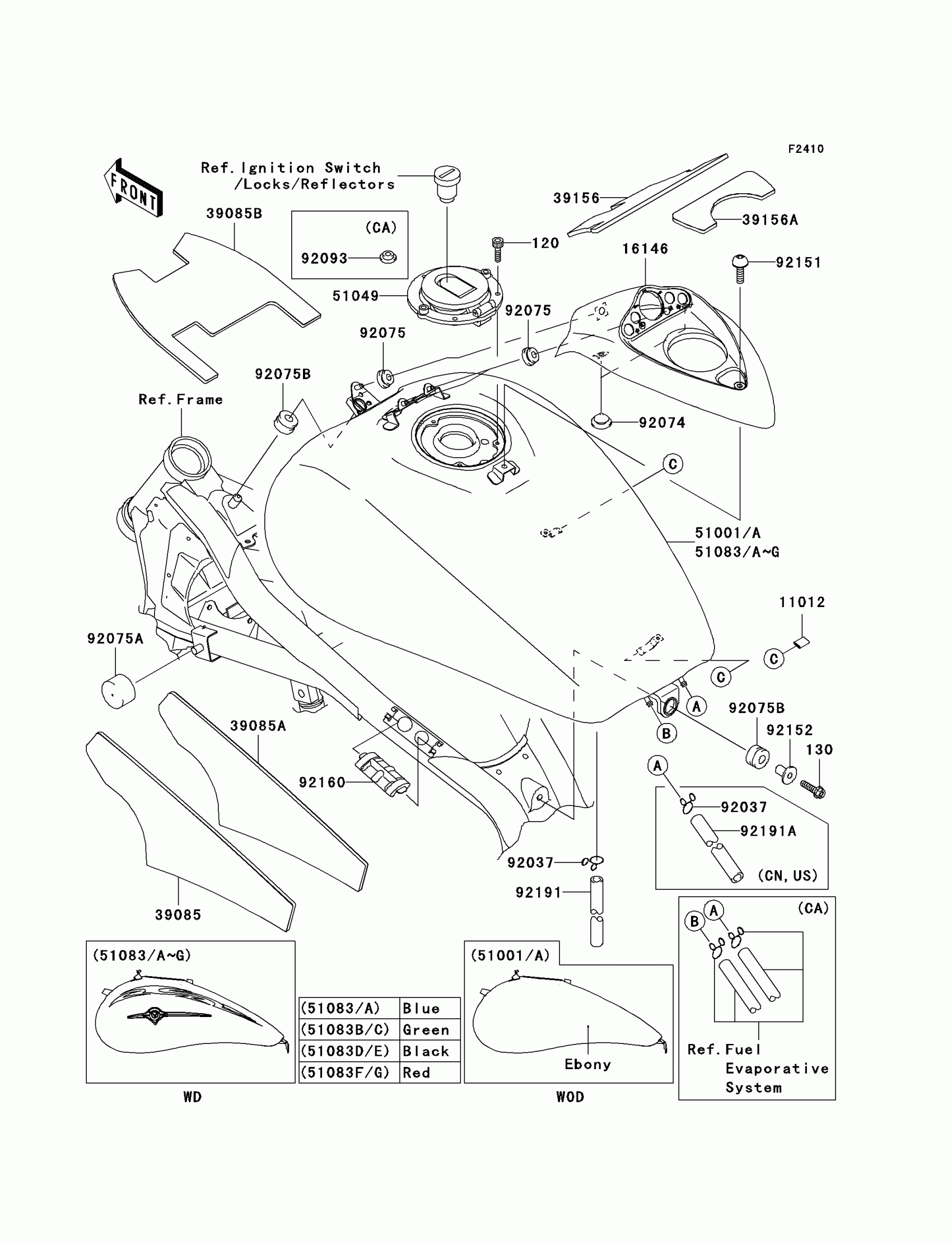

Kawasaki Vulcan 1600 Mean Streak Fuel Tank(4/4) Diagram

Description

Price

11012

CAP

11012-1725

$4.07

16146

COVER-ASSY,FUEL TANK

16146-0006

Unavailable

39085

PAD-TANK,FUEL TANK,LH

39085-1065

$63.97

39085A

PAD-TANK,FUEL TANK,RH

39085-1066

$71.26

39085B

PAD-TANK,FUEL TANK,CNT

39085-1067

$47.31

39156

PAD,FUEL TANK COVER,FR

39156-1700

$43.49

39156A

PAD,FUEL TANK COVER,RR

39156-1701

$35.24

51049

CAP-TANK,FUEL

51049-0009

Unavailable

120

BOLT-SOCKET,5X12

120S0512

Unavailable

130

BOLT-FLANGED,8X30

130H0830

Unavailable

92074

PLUG,7X2

92074-028

$3.81

92075

DAMPER,6X16X7

92075-1011

$5.84

92075A

DAMPER,FUEL TANK

92075-125

$4.93

92075B

DAMPER

92075-1736

$5.21

92151

BOLT,SOCKET,6X12

92151-1940

$2.97

92152

COLLAR

92152-1393

Unavailable

92160

DAMPER,FUEL TANK

92160-1751

$13.83

92191

TUBE,DRAIN

92191-1272

$23.59

51001

TANK-COMP-FUEL,EBONY

51001-1681-H8

$912.54

51001A

TANK-COMP-FUEL,EBONY

51001-1682-H8

$1,227.73

51083F

TANK-COMP-FUEL,P.M.RED

51083-5349-724

$1,560.78

51083G

TANK-COMP-FUEL,P.M.RED

51083-5350-724

$1,658.58

92037

CLAMP,TUBE

92037-147

$5.84

92037

CLAMP,TUBE

92037-147

$5.84

92093

SEAL,FUEL TANK CAP

92093-1030

$6.18

92191A

TUBE,5X10X650

92191-1529

Unavailable
