2005 Kawasaki Vulcan 1600 Classic Turn Signals Diagram

← All diagrams

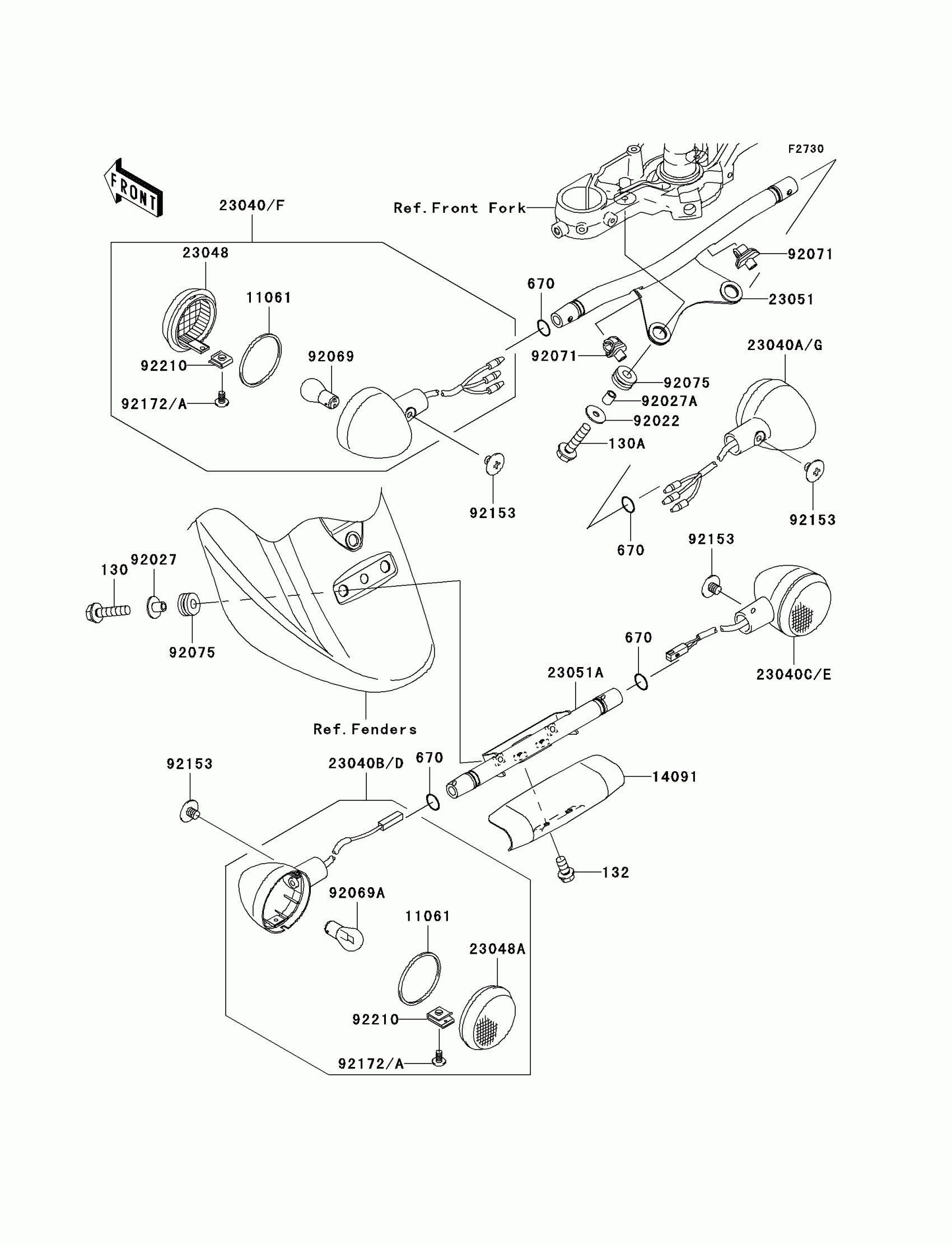

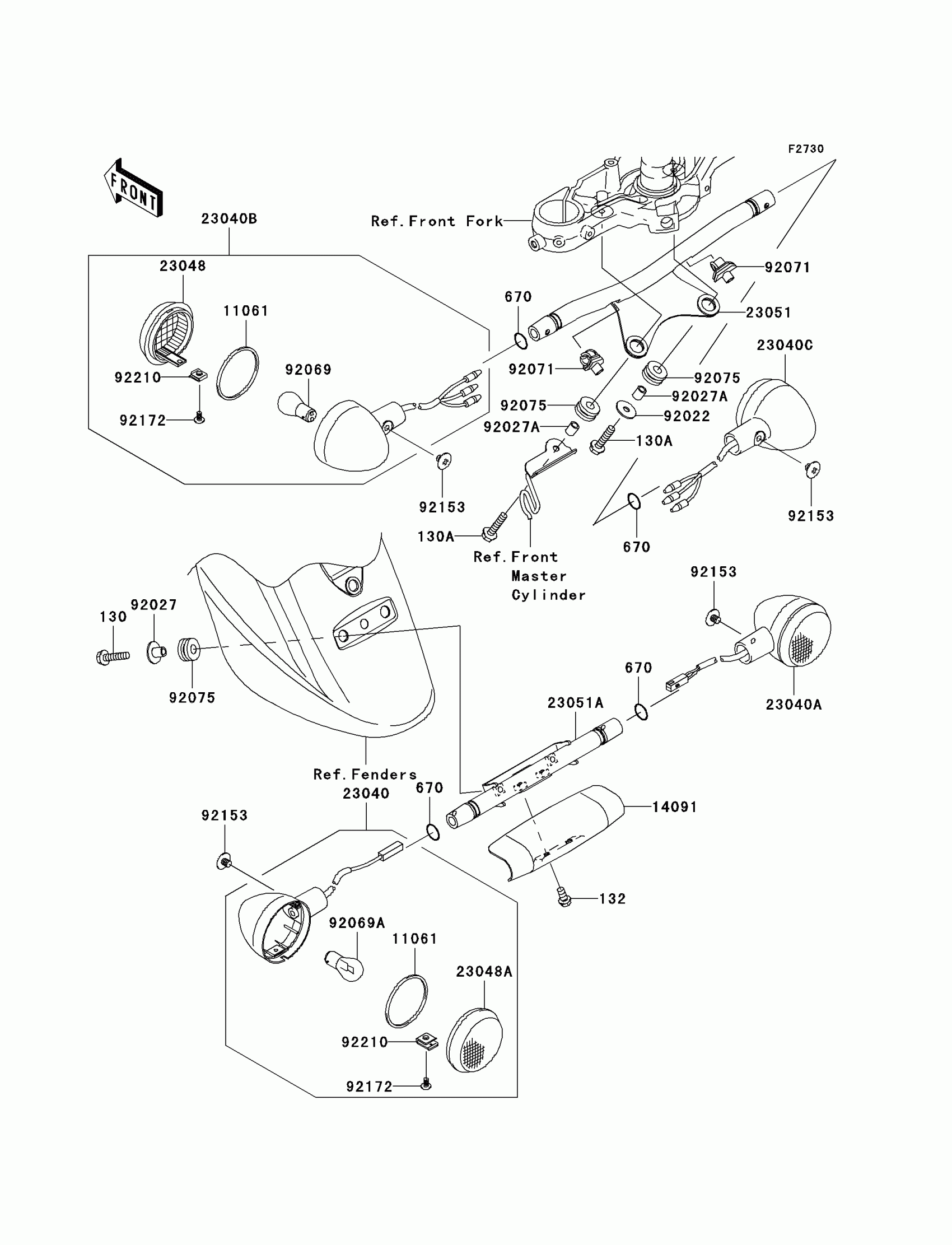

Find the part on the Turn Signals diagram for your 2005 Kawasaki Vulcan 1600 Classic, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2005 Kawasaki Vulcan 1600 Classic Turn Signals Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

130

BOLT-FLANGED,6X25

130J0625

1
Out of stock

130A

BOLT-FLANGED,6X25

130L0625

1
Out of stock

132

BOLT-FLANGED-SMALL,6X12

132J0612

1
Out of stock

670

O RING,16MM

670B2016

1
Out of stock

11061

GASKET,SIGNAL LAMP

11061-0005

1
Out of stock

14091

COVER,REAR SIGNAL LAMP

14091-1572

1
Out of stock

23040D

LAMP-SIGNAL,RR,LH

23040-0036

1
Out of stock

23040E

LAMP-SIGNAL,RR,RH

23040-0037

1
Out of stock

23040F

LAMP-SIGNAL,FR,LH

23040-0042

1
Out of stock

23040G

LAMP-SIGNAL,FR,RH

23040-0043

1
Out of stock

23048

LENS-SIGNAL LAMP,FR

23048-0001

1
Out of stock

23048A

LENS-SIGNAL LAMP,RR

23048-0002

1
Out of stock

23051

BRACKET-SIGNAL LAMP,FR

23051-0001

1
Out of stock

23051A

BRACKET-SIGNAL LAMP,RR

23051-0002

1
Out of stock

92022

WASHER,7X24X1.6

92022-1160

1
Out of stock

92027

COLLAR,L=13.1,BLACK

92027-1450

1
Out of stock

92027A

COLLAR,6.8X10X12

92027-162

1
Out of stock

92069

BULB,12V 21/5W

92069-063

1
Out of stock

92069A

Not Available As Spare Part - Friction Washer

1
Out of stock

92071

GROMMET,SIGNAL LAMP

92071-0007

1
Out of stock

92075

DAMPER,10X24X12

92075-1690

1
Out of stock

92153

BOLT,6MM

92153-0396

1
Out of stock

92172A

SCREW,4X8

92172-0146

1
Out of stock

92210

NUT,4MM

92210-0155

1
Out of stock
