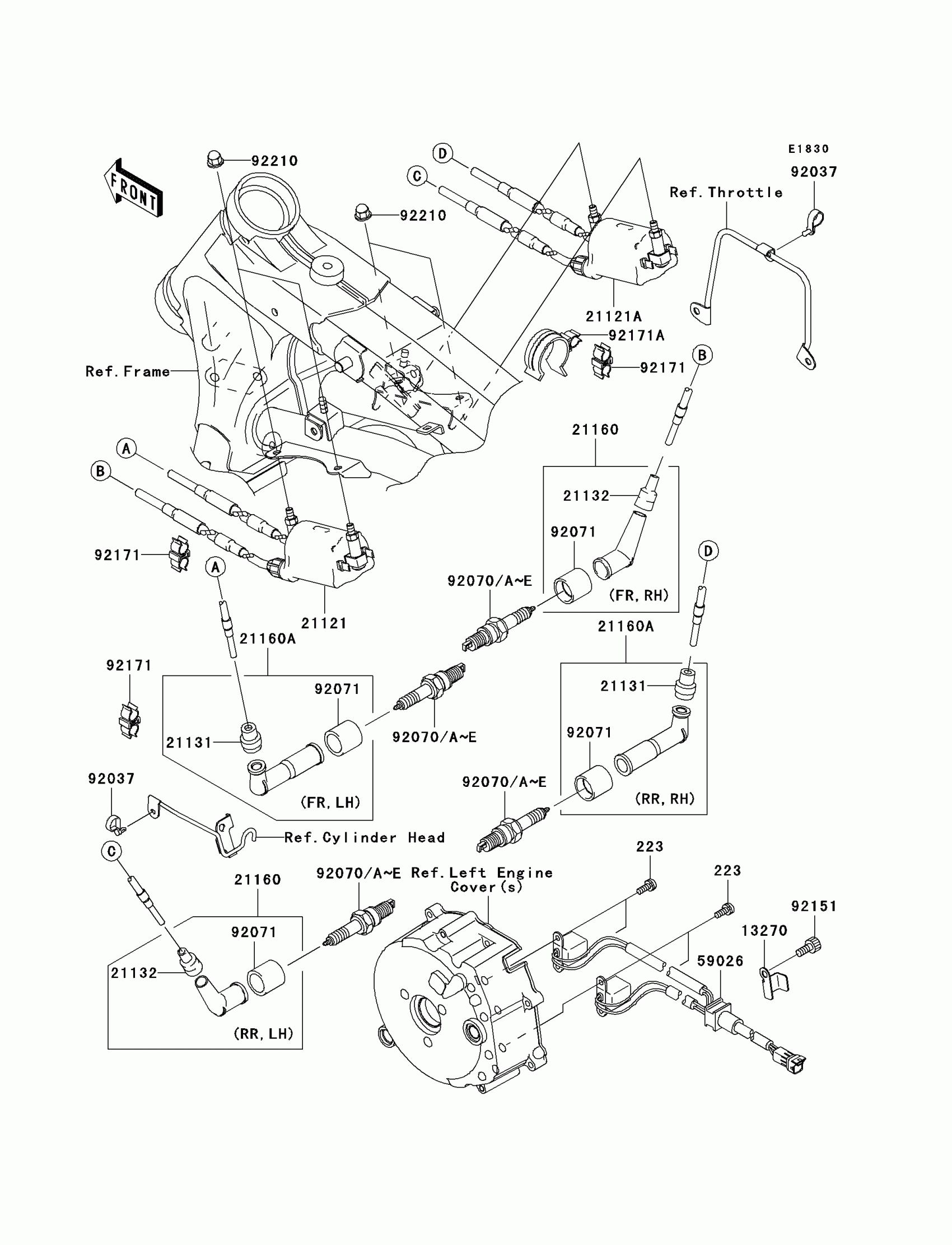

Kawasaki Vulcan 1600 Classic Ignition System Diagram

Description

Price

223

SCREW-PAN-WS-CROS,5X16

223B0516

Unavailable

13270

PLATE

13270-1979

$3.22

21121

COIL-IGNITION,FR

21121-0003

$230.40

21121A

COIL-IGNITION,RR

21121-0004

$230.40

21131

GROMMET,HIGH TENSION

21131-005

$4.64

21132

GROMMET,HIGH TENSION

21132-005

$3.25

21160

CAP-ASSY-PLUG

21160-0004

$35.78

21160A

CAP-ASSY-PLUG

21160-1091

$28.00

59026

COIL-PULSING

59026-1157

$138.19

92037

CLAMP,SPEED,L=43

92037-1290

$7.25

92070

Not Available As Spare Part - Friction Washer

Unavailable

92070A

PLUG-SPARK,DPR7EA9(NGK)

92070-1125

Unavailable

92070B

PLUG-SPARK,DPR6EA9(NGK)

92070-1138

$2.80

92070C

Not Available As Spare Part - Friction Washer

Unavailable

92070D

PLUG-SPARK,DPR5EA9(NGK)

92070-1250

Unavailable

92070E

Not Available As Spare Part - Friction Washer

Unavailable

92071

GROMMET,PLUG CAP

92071-1184

$5.37

92151

BOLT,6X10

92151-3704

$3.35

92171

CLAMP

92171-0129

$3.75

92171A

CLAMP

92171-0130

$5.63

92210

NUT,CAP,6MM

92210-0003

$0.60
