2005 Kawasaki Vulcan 1600 Classic Taillight Diagram

← All diagrams

Find the part on the Taillight diagram for your 2005 Kawasaki Vulcan 1600 Classic, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

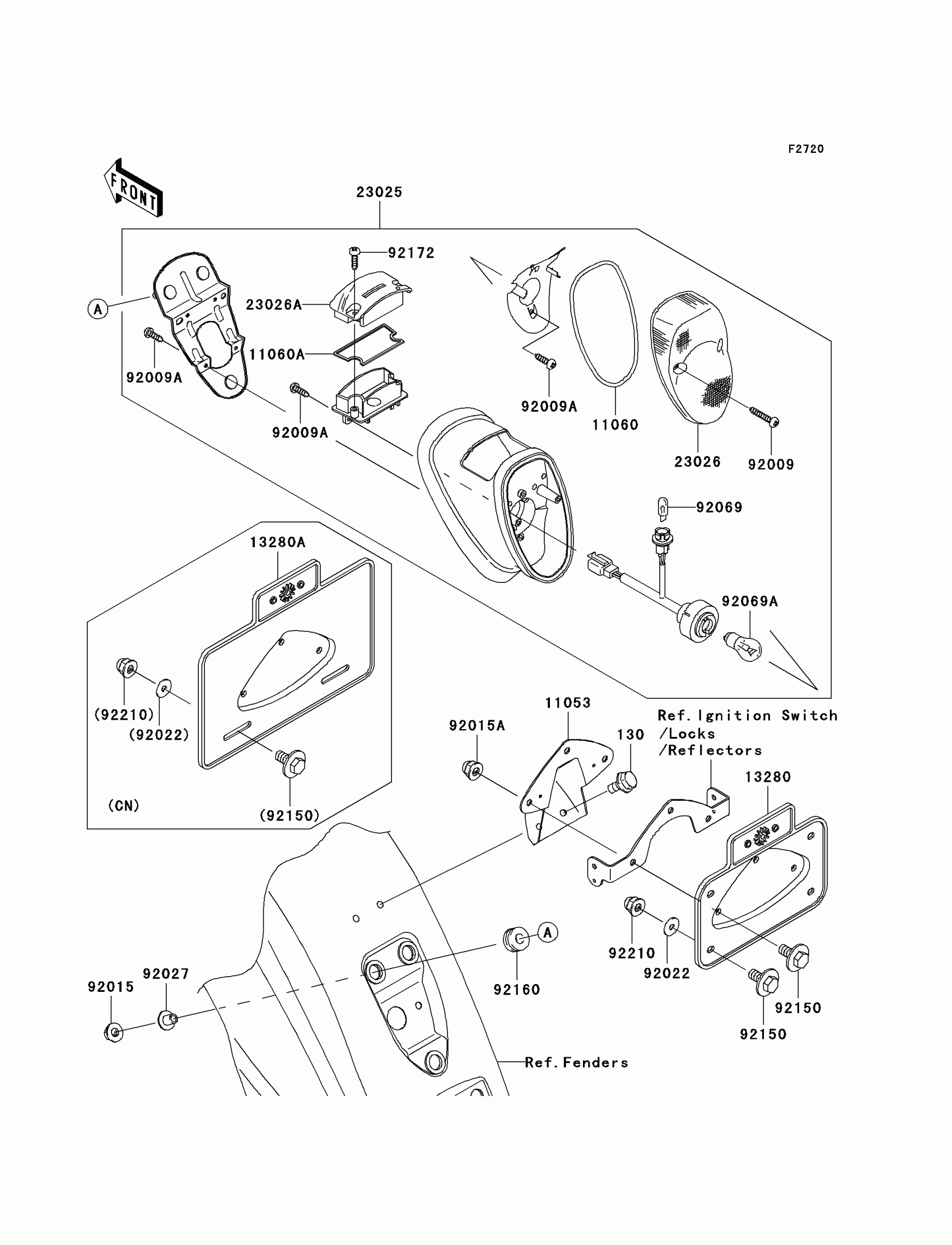

2005 Kawasaki Vulcan 1600 Classic Taillight Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

130

BOLT-FLANGED,6X12

130J0612

1
Out of stock

11053

BRACKET,LICENSE PLATE HOLDER

11053-1220

1
Out of stock

11060

GASKET,TAIL LAMP

11060-1884

1
Out of stock

11060A

GASKET,LICENSE LENS

11060-1939

1
Out of stock

23025

LAMP-TAIL

23025-1333

1
Out of stock

23026

LENS,TAIL

23026-1220

1
Out of stock

23026A

LENS,LICENSE

23026-1224

1
Out of stock

92009

SCREW,TAPPING,4X20

92009-1378

1
Out of stock

92009A

SCREW,TAPPING,4X12

92009-1381

1
Out of stock

92015

NUT,FLANGED,6MM

92015-1367

1
Out of stock

92015A

NUT,CAP,6MM

92015-1385

1
Out of stock

92027

COLLAR,L=13.1,BLACK

92027-1450

1
Out of stock

92069

BULB,12V 5W

92069-1016

1
Out of stock

92069A

BULB,12V 21/5W

92069-1084

1
Out of stock

92160

DAMPER

92160-1162

1
Out of stock

92172

SCREW,TAPPING,4X12

92172-0084

1
Out of stock

13280

HOLDER,LICENSE PLATE

13280-1103

1
Out of stock

13280A

HOLDER,LICENSE PLATE

13280-1130

1
Out of stock

92022

WASHER,6.5X20X1.6,BLACK

92022-1346

1
Out of stock

92022

WASHER,6.5X20X1.6,BLACK

92022-1346

1
Out of stock

92150

BOLT,6X14

92150-1133

1
Out of stock

92150

BOLT,6X14

92150-1133

1
Out of stock

92210

NUT,CAP,6MM

92210-0003

1
Out of stock

92210

NUT,CAP,6MM

92210-0003

1
Out of stock
