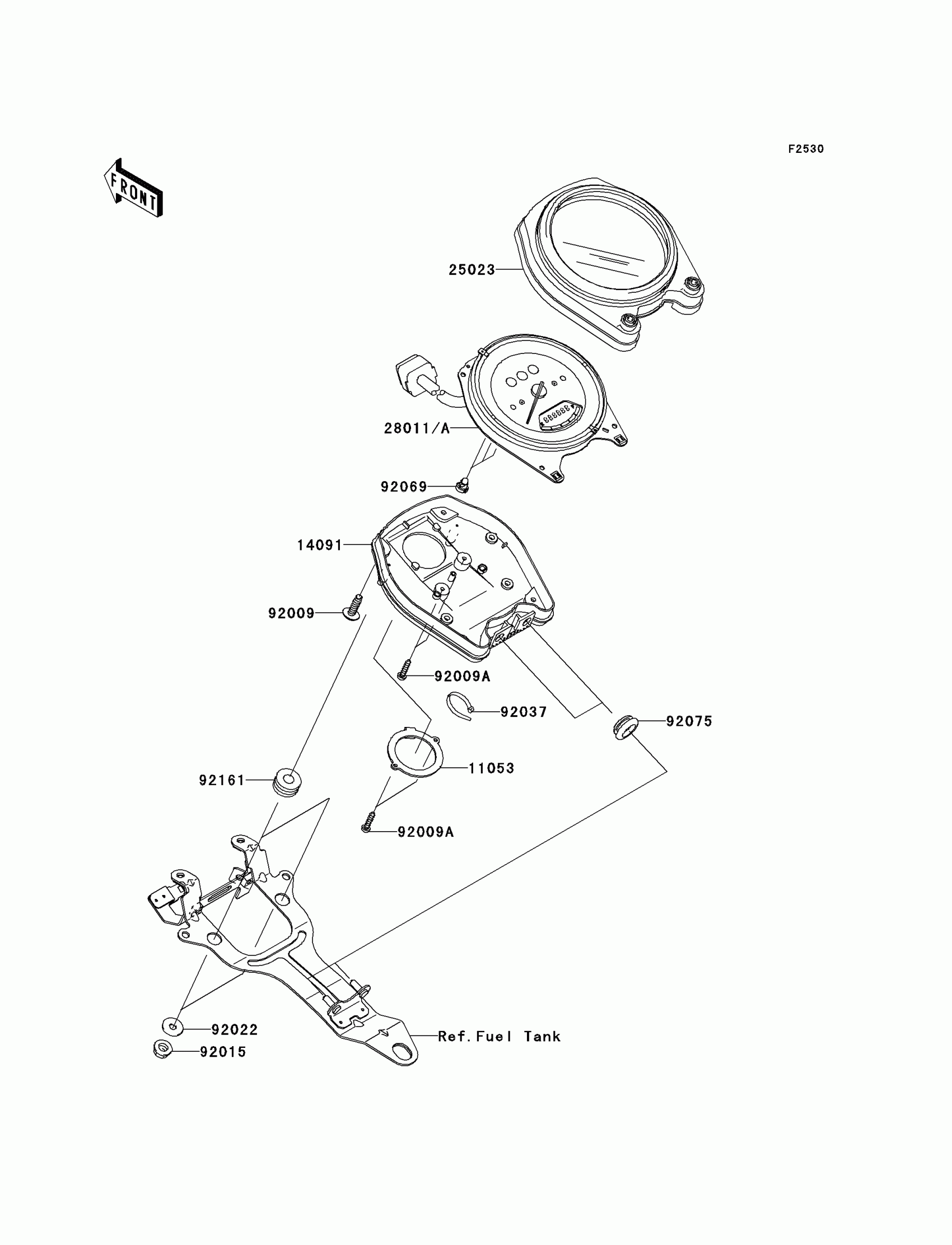

Kawasaki Vulcan 1600 Classic Meter(s) Diagram

Description

Price

11053

BRACKET,METER

11053-0022

$14.02

14091

COVER,METER,LWR

14091-0009

$97.63

25023

COVER-METER CASE,UPP

25023-0002

$189.28

92009

SCREW,TAPPING,4X16

92009-1163

$3.13

92009A

SCREW,TAPPING,3X12

92009-1255

$3.20

92015

NUT,FLANGED,6MM,BLACK

92015-1386

Unavailable

92022

WASHER,6.5X20X1.6,BLACK

92022-1346

$0.48

92037

CLAMP

92037-1173

$2.58

92069

BULB,T3.4,12V1.1W

92069-1110

$5.90

92075

DAMPER,6X16X7

92075-1011

$5.61

92161

DAMPER

92161-0054

$4.15

28011

METER,SPEED,MPH

28011-0003

Unavailable

28011A

METER,SPEED,KPH

28011-0004

Unavailable
