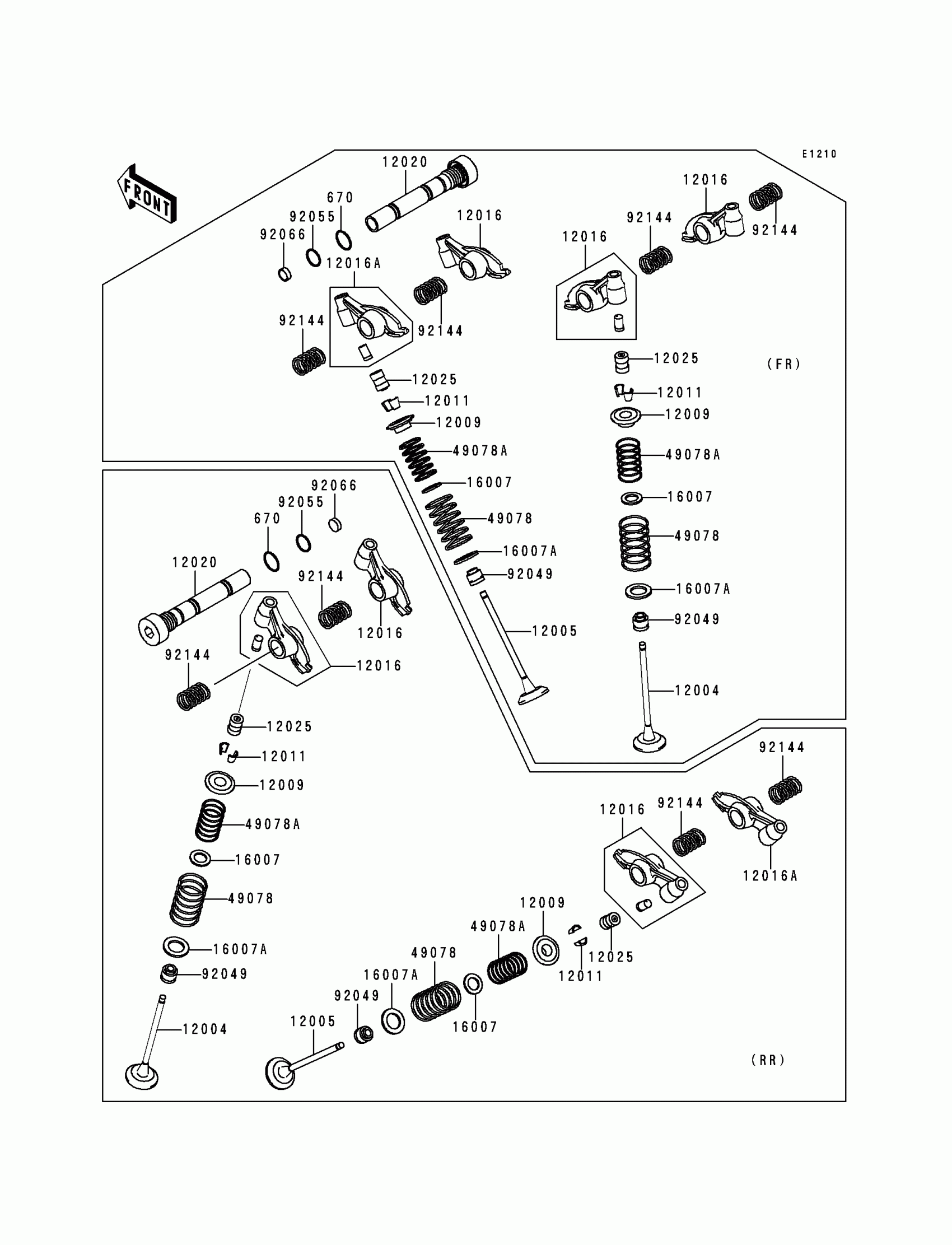

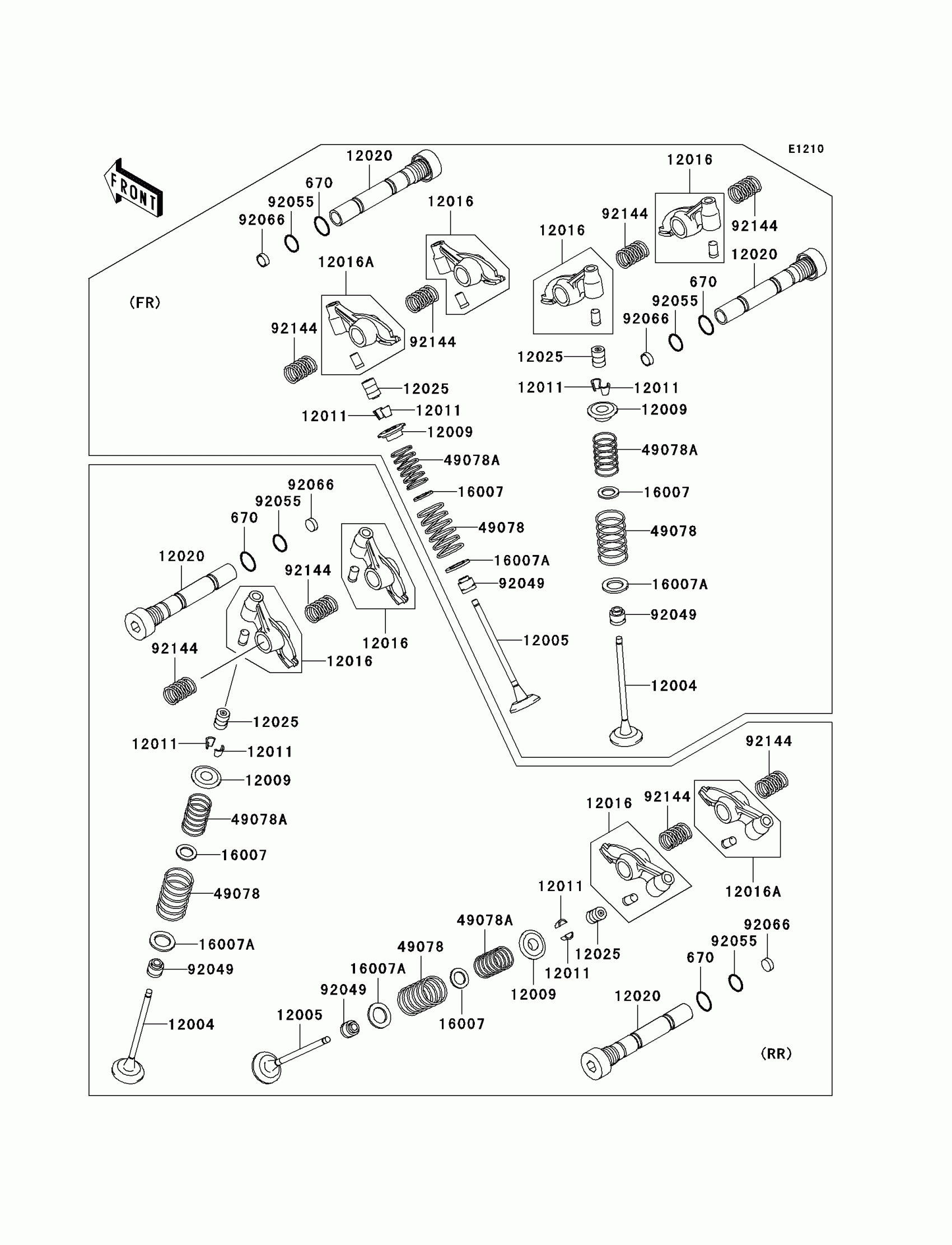

Kawasaki Vulcan 1500 Nomad Fi Valve(s) Diagram

Description

Price

670

O RING,20MM

670B2020

$0.97

12004

VALVE-INTAKE

12004-1072

$54.98

12005

VALVE-EXHAUST

12005-1268

$93.64

12009

RETAINER-VALVE SPRING

12009-005

$9.95

12011

COLLET,RETAINER

12011-004

$4.14

12016

ARM-ROCKER

12016-1112

$141.80

12016A

ARM-ROCKER

12016-1113

$151.55

12020

SHAFT-ROCKER

12020-1061

$91.02

12025

ADJUSTER-LASH

12025-1054

Unavailable

16007

SEAT-SPRING,12X20X0.5

16007-1031

$4.98

16007A

SEAT-SPRING,21X29.5X0.5

16007-1137

$4.98

49078

SPRING-ENGINE VALVE,OUTER

49078-1157

$16.25

49078A

SPRING-ENGINE VALVE,INNER

49078-1158

$16.25

92049

SEAL-OIL,RV37129.5

92049-016

$13.84

92055

RING-O,12X1.5

92055-025

$3.57

92066

PLUG

92066-1198

$4.14

92144

SPRING,ROCKER ARM

92144-1221

$3.72
