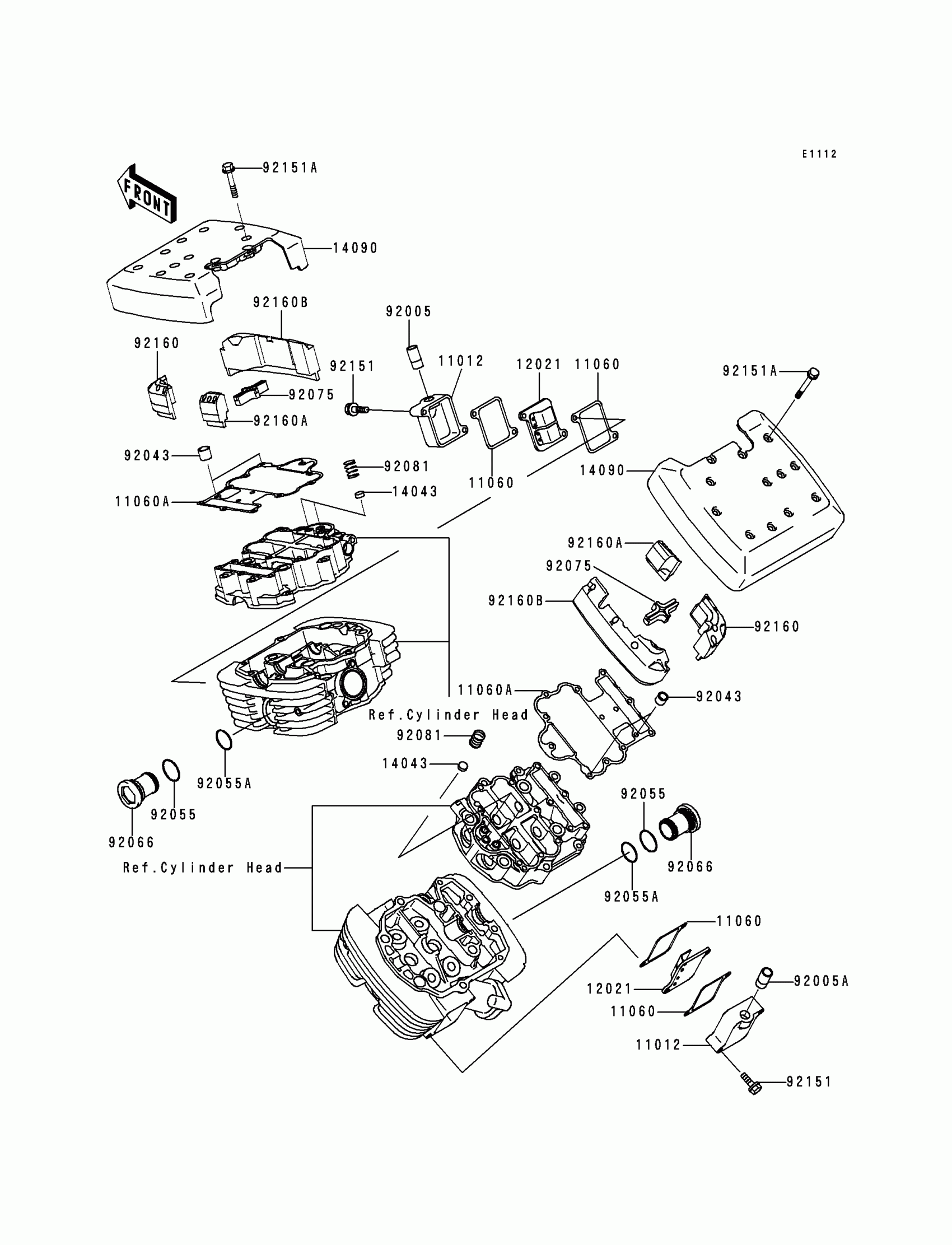

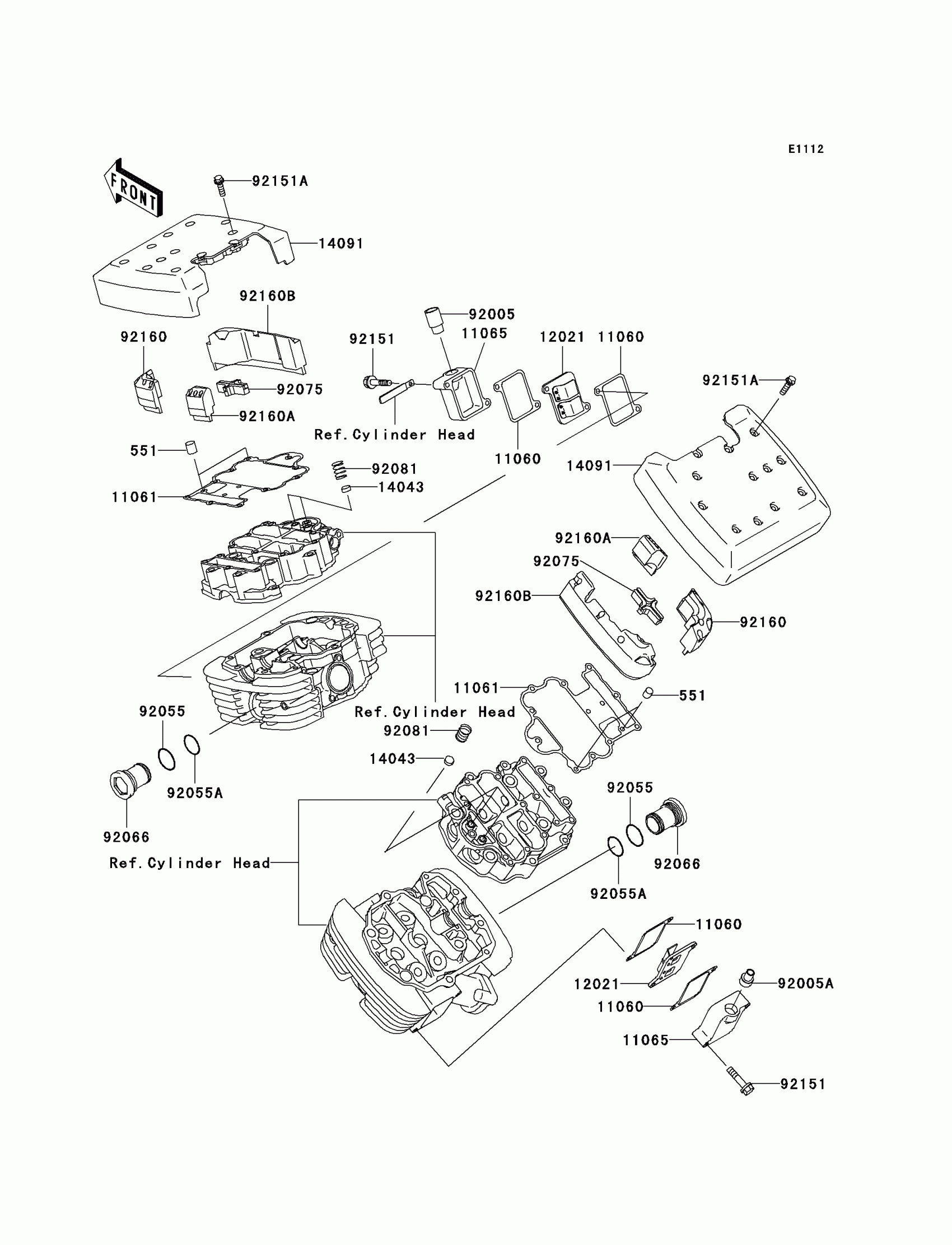

Kawasaki Vulcan 1500 Nomad Fi Cylinder Head Cover Diagram

Description

Price

11012

CAP,REED VALVE

11012-1953

$60.31

11060

GASKET,REED VALVE CAP

11060-1733

Unavailable

11060A

GASKET,ROCKER CASE COVER

11060-1917

Unavailable

12021

VALVE-ASSY-REED

12021-1108

$135.14

14043

FILTER,OIL

14043-1056

$8.20

14090

COVER,ROCKERCASE

14090-1676

$283.28

92005

FITTING,REED VALVE

92005-1006

$7.46

92005A

FITTING

92005-1363

$12.85

92043

PIN,4.2X6X12

92043-1262

$3.29

92055

RING-O,31.5X2.6

92055-049

$3.29

92055A

RING-O,27.7X1.9

92055-1272

$4.18

92066

PLUG,SLEEVE

92066-1445

$34.52

92075

DAMPER

92075-1998

$9.66

92081

SPRING,OIL FILTER

92081-1776

$4.69

92151

BOLT,6X45

92151-1059

$2.34

92151A

BOLT,FLANGED-SMALL,6X20

92151-1252

Unavailable

92160

DAMPER

92160-1698

Unavailable

92160A

DAMPER

92160-1699

Unavailable

92160B

DAMPER

92160-1711

$76.74
