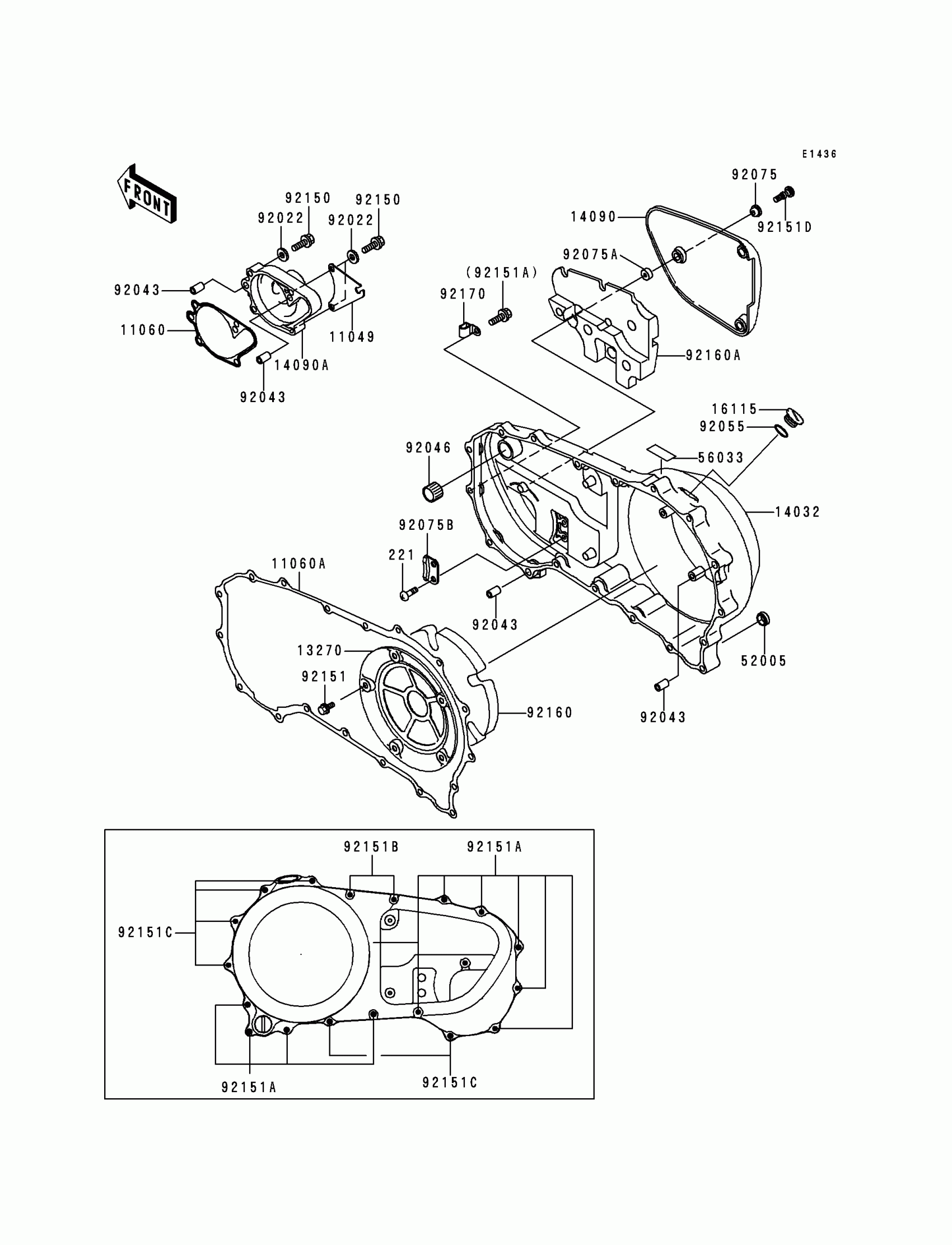

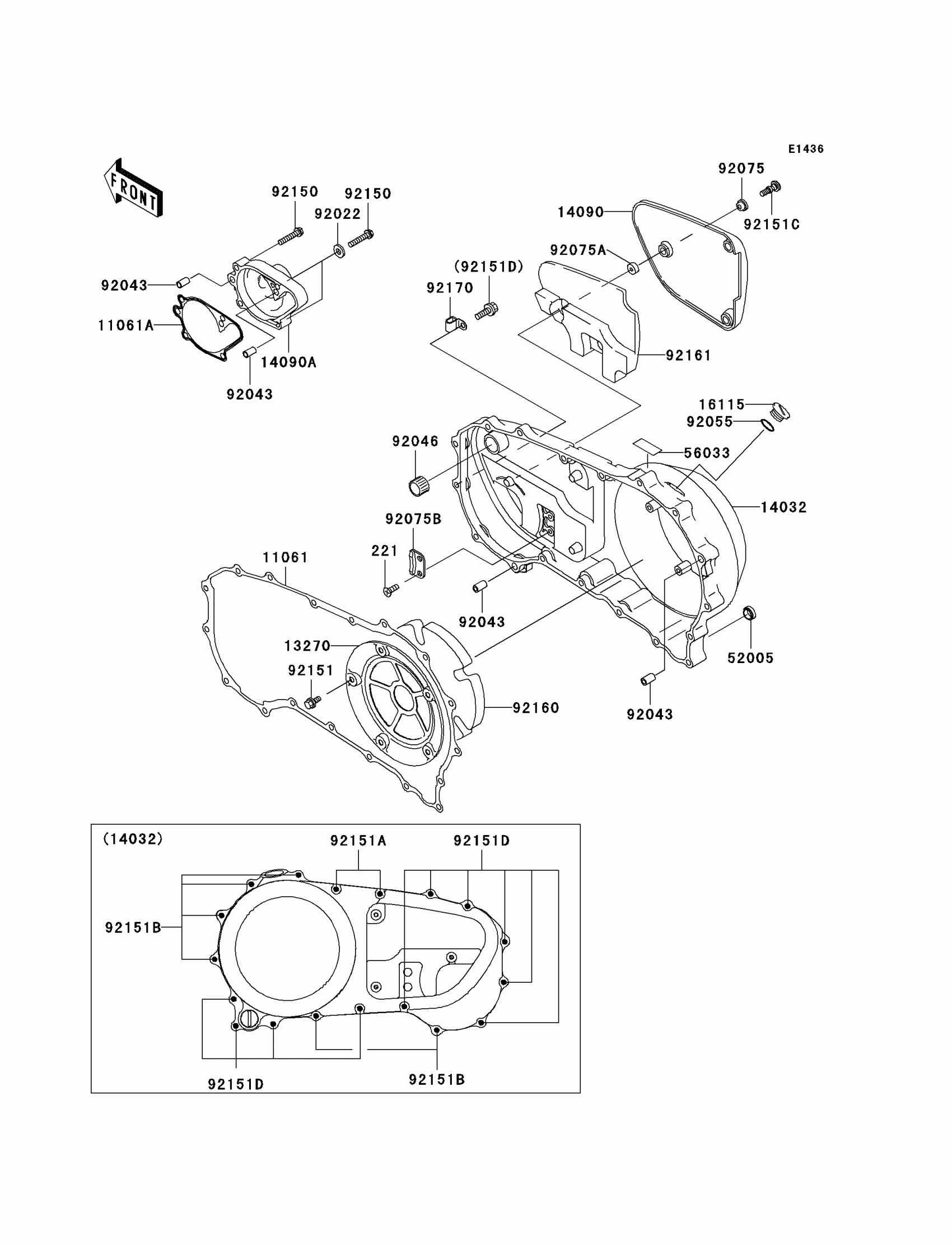

Kawasaki Vulcan 1500 Nomad Fi Right Engine Cover(s) Diagram

Description

Price

221

SCREW-CSK-CROS,6X12

221B0612

$1.49

11049

BRACKET

11049-1789

$7.81

11060

GASKET,WATER PUMP COVER

11060-1124

Unavailable

11060A

GASKET,CLUTCH COVER

11060-1879

Unavailable

13270

PLATE

13270-1592

$21.32

14032

COVER-CLUTCH

14032-1493

$806.32

14090

COVER,CLUTCH OUTER

14090-1678

$197.56

14090A

COVER,WATER PUMP

14090-1932

$75.20

16115

CAP-OIL FILLER

16115-1063

$26.61

52005

GAUGE,OIL LEVEL

52005-1009

$13.87

56033

LABEL-MANUAL,OIL CAPACITY

56033-1156

$5.85

92022

WASHER OIL PUMP BANJO

92022-077

$2.84

92043

PIN,6.2X8X14

92043-1263

$0.46

92046

BEARING-NEEDLE,HK1212

92046-1163

$14.37

92055

RING-O,31.5X2.6

92055-049

$3.29

92075

DAMPER

92075-1855

$7.93

92075A

DAMPER

92075-1856

$7.30

92075B

DAMPER

92075-1905

$11.07

92150

BOLT,6X30

92150-1021

Unavailable

92151

BOLT,6X10

92151-1064

$2.63

92151A

BOLT,6X25

92151-1130

$1.98

92151B

BOLT,6X30

92151-1134

$1.57

92151C

BOLT,6X35

92151-1135

$3.19

92151D

BOLT,SOCKET,6X22.5

92151-1273

$8.27

92160

DAMPER

92160-1716

$36.69

92160A

DAMPER

92160-1717

Unavailable

92170

CLAMP

92170-1804

$4.02
