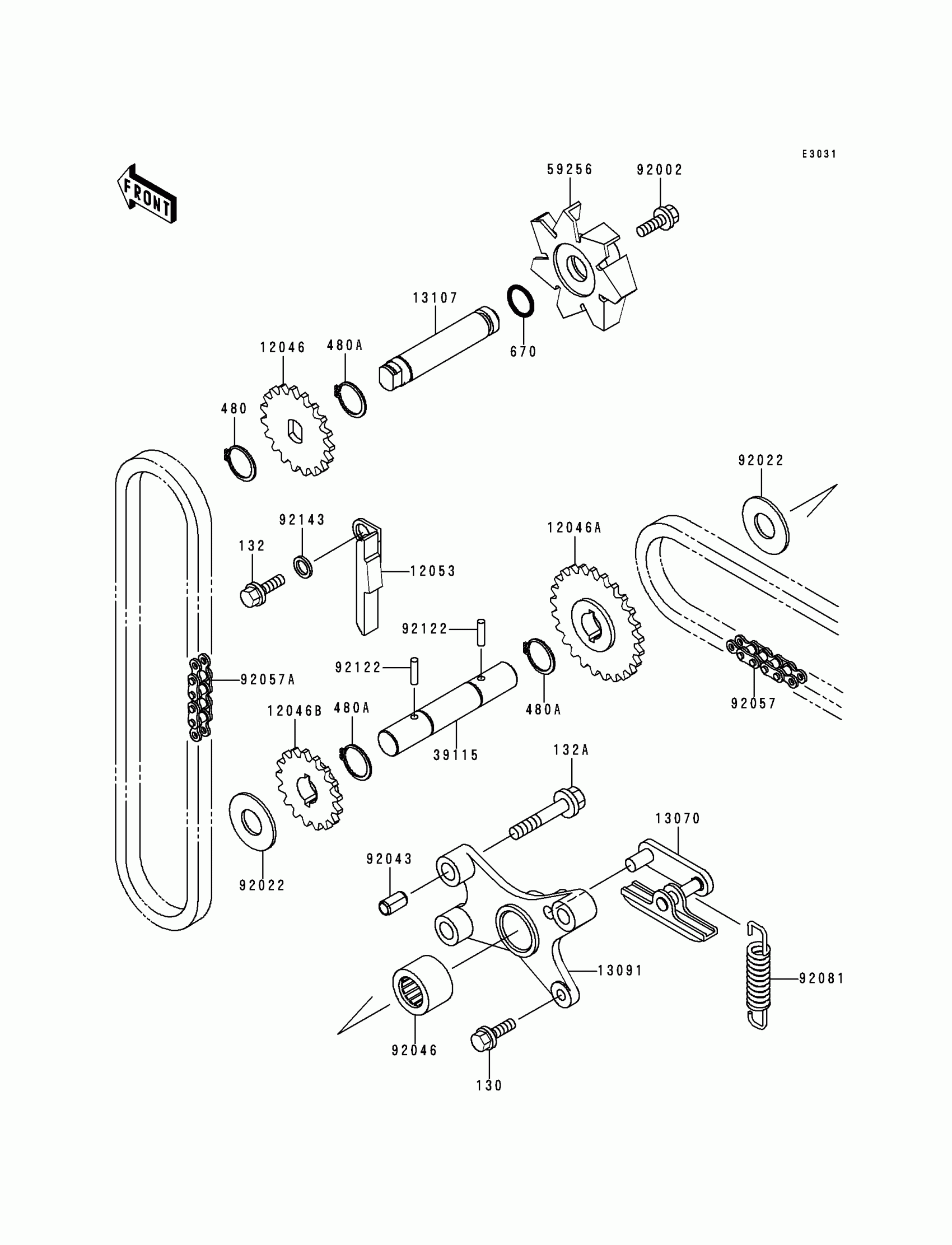

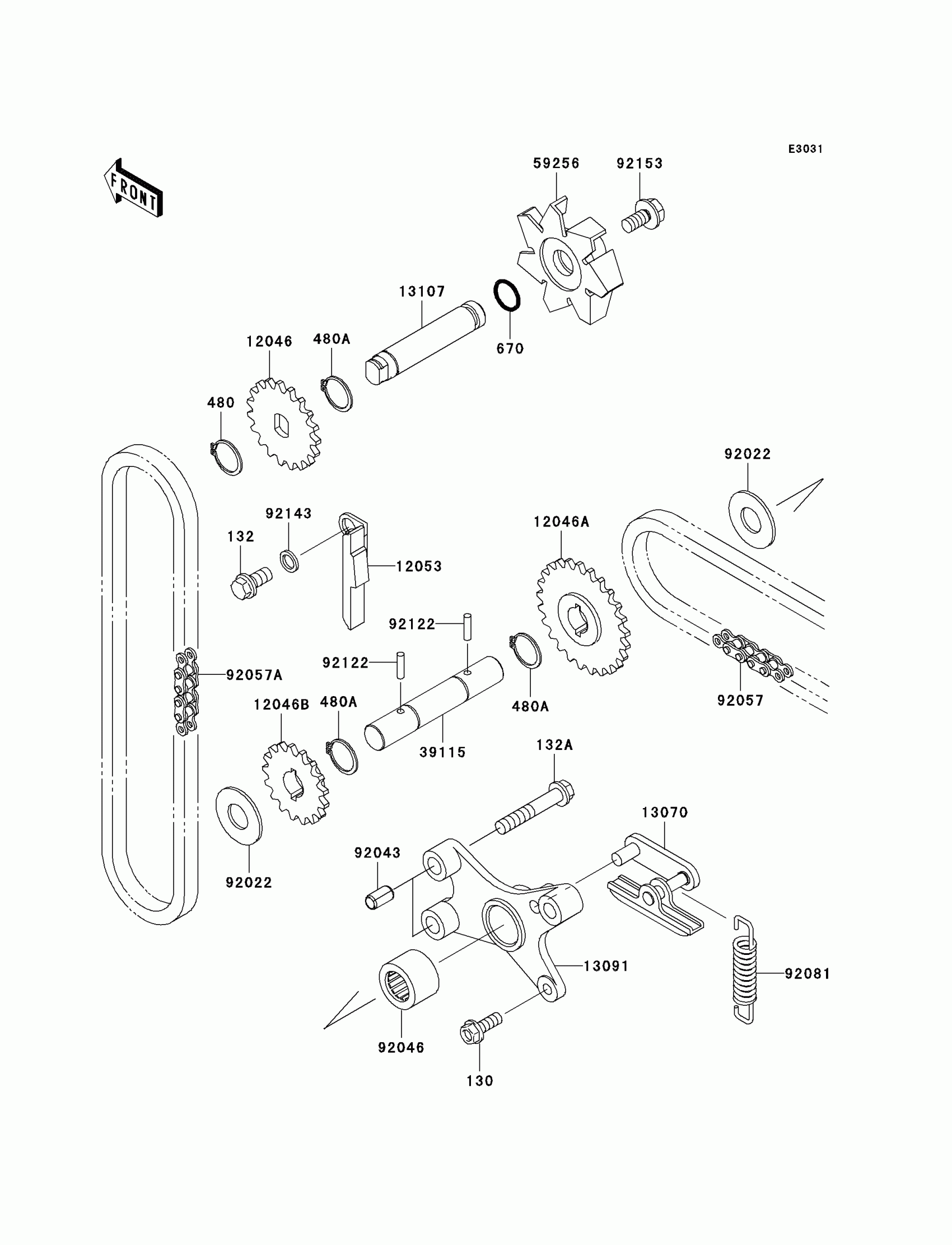

Find the part on the Water Pump diagram for your 2000 Kawasaki Vulcan 1500 Nomad Fi, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2000 Kawasaki Vulcan 1500 Nomad Fi Water Pump Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

130

BOLT-FLANGED,5X14

130D0514

1
Out of stock

132

BOLT-FLANGED-SMALL

132G0612

1
Out of stock

132A

BOLT-FLANGED-SMALL,6X35

132G0635

1
Out of stock

480

CIRCLIP-TYPE-C,11MM

480J1100

1
Out of stock

480A

CIRCLIP-TYPE-C,12MM

480J1200

1
Out of stock

670

O RING,9MM

670D1509

1
Out of stock

12046

SPROCKET,OIL PUMP,19T

12046-1079

1
Out of stock

12046A

SPROCKET,CRANK IDLER,25T

12046-1096

1
Out of stock

12046B

SPROCKET,IDLER,17T

12046-1097

1
Out of stock

12053

GUIDE-CHAIN

12053-1227

1
Out of stock

13070

GUIDE

13070-1178

1
Out of stock

13091

HOLDER

13091-1471

1
Out of stock

13107

SHAFT,IMPELLER

13107-1196

1
Out of stock

39115

SHAFT-IDLER

39115-1058

1
Out of stock

59256

IMPELLER

59256-1066

1
Out of stock

92002

BOLT,6X12

92002-1902

1
Out of stock

92022

WASHER,12X27.5X1.0

92022-1852

1
Out of stock

92043

PIN,6.2X8X14

92043-1263

1
Out of stock

92046

BEARING-NEEDLE,HK1212

92046-1163

1
Out of stock

92057

CHAIN,BS25HX46L

92057-1230

1
Out of stock

92057A

CHAIN,BS25HX44L

92057-1231

1
Out of stock

92081

SPRING,IDLER SHAFT

92081-1791

1
Out of stock

92122

ROLLER,3X15.8

92122-1126

1
Out of stock

92143

COLLAR

92143-1123

1
Out of stock
