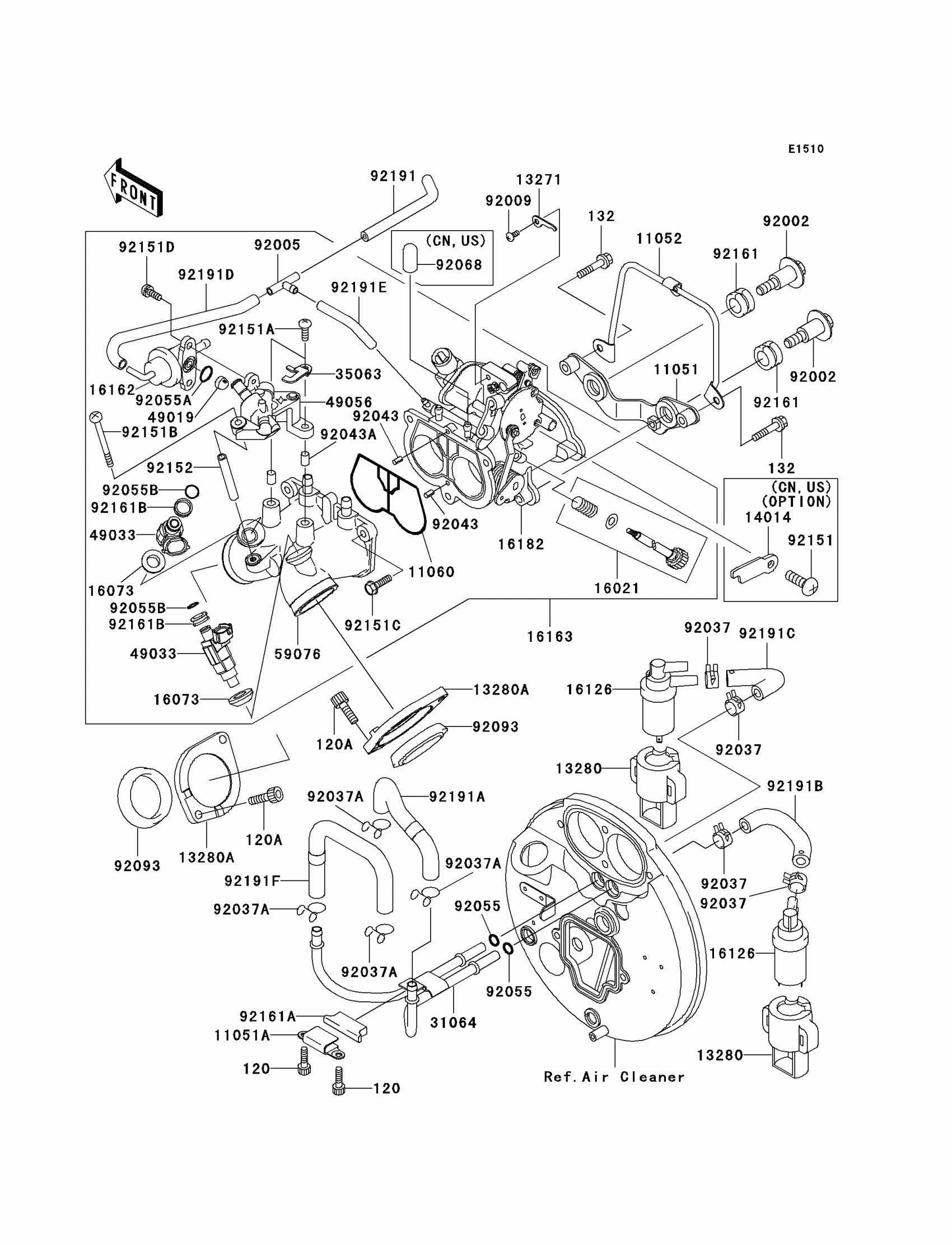

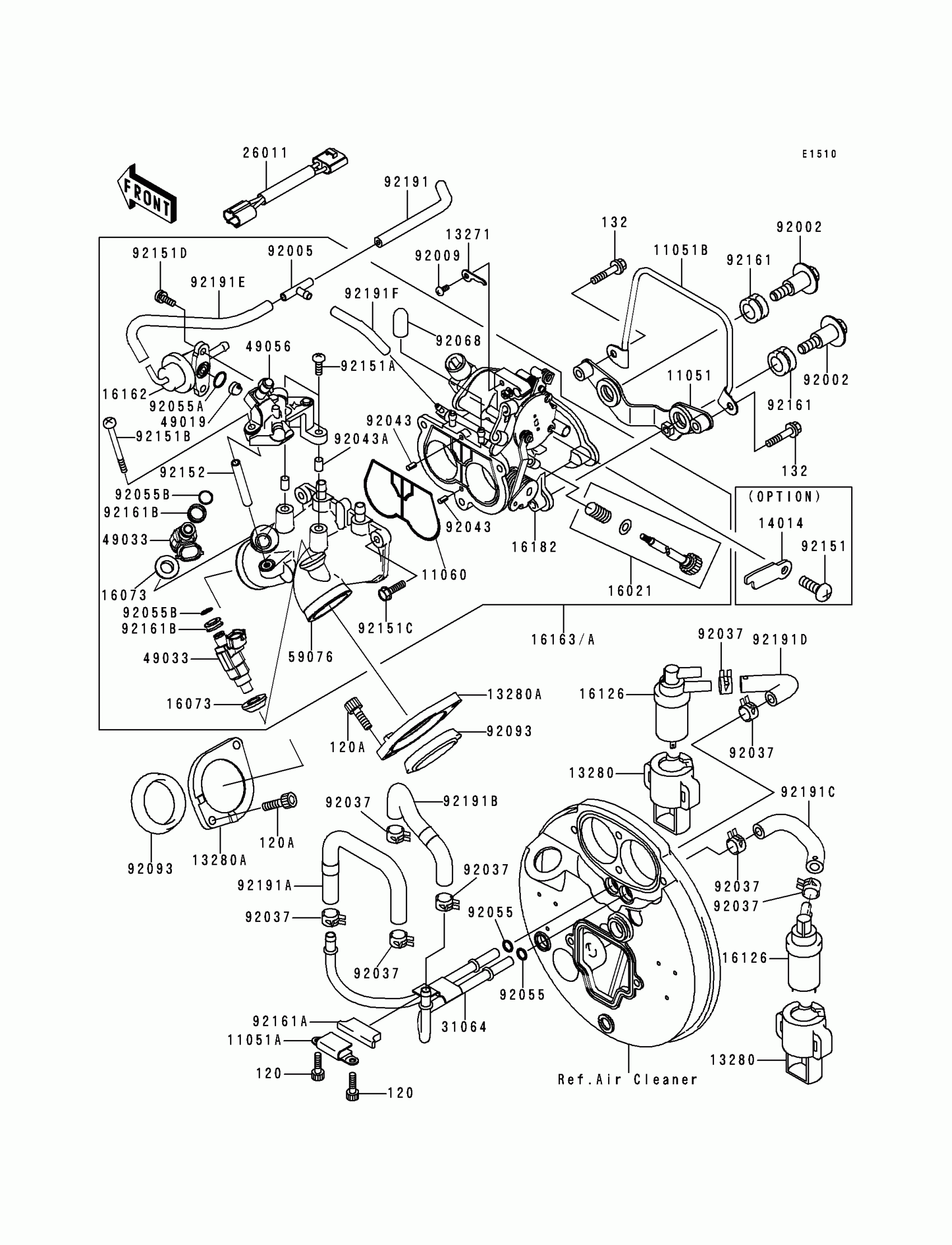

Kawasaki Vulcan 1500 Nomad Fi Throttle Diagram

#

Description
Price

11051

BRACKET

11051-1333

$42.27

11051A

BRACKET

11051-1345

$7.59

11051B

BRACKET,HIGH TENSHION CORD

11051-1471

Unavailable

11060

GASKET,THROTTLE BODY

11060-1928

$49.92

13271

PLATE,STARTER CABLE

13271-1314

$2.39

13280

HOLDER

13280-1139

$30.34

13280A

HOLDER

13280-1154

$22.39

16021

SCREW-THROTTLE STOP

16021-1227

$103.93

16073

INSULATOR

16073-1119

$19.36

16126

VALVE

16126-1372

$76.34

16162

REGULATOR-FUEL

16162-1052

Unavailable

16182

BODY-THROTTLE

16182-1002

$1,296.37

26011

WIRE-LEAD

26011-1707

Unavailable

31064

PIPE-COMP

31064-1227

$54.83

49019

FILTER-FUEL,STRAINER

49019-3707

$6.21

49033

NOZZLE-INJECTION

49033-1057

$147.47

49056

PIPE-INJECTION

49056-1053

Unavailable

59076

MANIFOLD-INTAKE

59076-1110

$497.67

92002

BOLT,FLANGED,6X14X13.5

92002-1595

$9.94

92005

FITTING

92005-1366

$37.73

92009

SCREW,4X6

92009-1903

$1.80

92037

CLAMP,HOSE CLIP

92037-1181

$2.31

92043

PIN,THROTTLE BODY

92043-1600

$2.75

92043A

PIN,DELIVERY PIPE

92043-1601

$2.75

92055

RING-O,7.8X3.5

92055-029

$3.51

92055A

RING-O,FUEL REGULATOR

92055-1620

Unavailable

92055B

RING-O,INJECTION NOZZLE

92055-1622

$1.42

92093

SEAL

92093-1484

Unavailable

92151A

BOLT,5X20

92151-1585

$1.71

120

BOLT-SOCKET,5X10

120S0510

Unavailable

120A

BOLT-SOCKET,6X20

120Z0620

Unavailable

132

BOLT-FLANGED-SMALL,6X25

132J0625

Unavailable

92151B

BOLT,5X75

92151-1586

$2.54

92151C

BOLT,THROTTLE BODY

92151-1587

$3.73

92151D

BOLT,6X12

92151-1588

$1.71

92152

COLLAR,DELIVERY PIPE

92152-1206

$10.63

92161

DAMPER

92161-1058

$5.10

92161A

DAMPER

92161-1062

$9.56

92161B

DAMPER,INJECTION NOZZLE

92161-1083

Unavailable

92191

TUBE,THROTTLE-BOOST

92191-1298

$7.73

92191A

TUBE,REAR PORT,BLUE

92191-1365

Unavailable

92191B

TUBE,FRONT PORT,RED

92191-1366

$12.42

92191C

TUBE,REAR VALVE,RED

92191-1367

$8.64

92191D

TUBE,FRONT VALVE,BLUE

92191-1368

$8.64

92191E

TUBE,L=130

92191-1402

$4.75

92191F

TUBE,L=55

92191-1403

$4.07

14014

PLATE-POSITION,25KW

14014-1142

$12.71

16163

THROTTLE-ASSY

16163-1096

$1,022.52

16163A

THROTTLE-ASSY

16163-1097

Unavailable

92068

PLUG,12X25

92068-006

$3.25

92151

BOLT,5X10,25KW

92151-1528

$4.39
