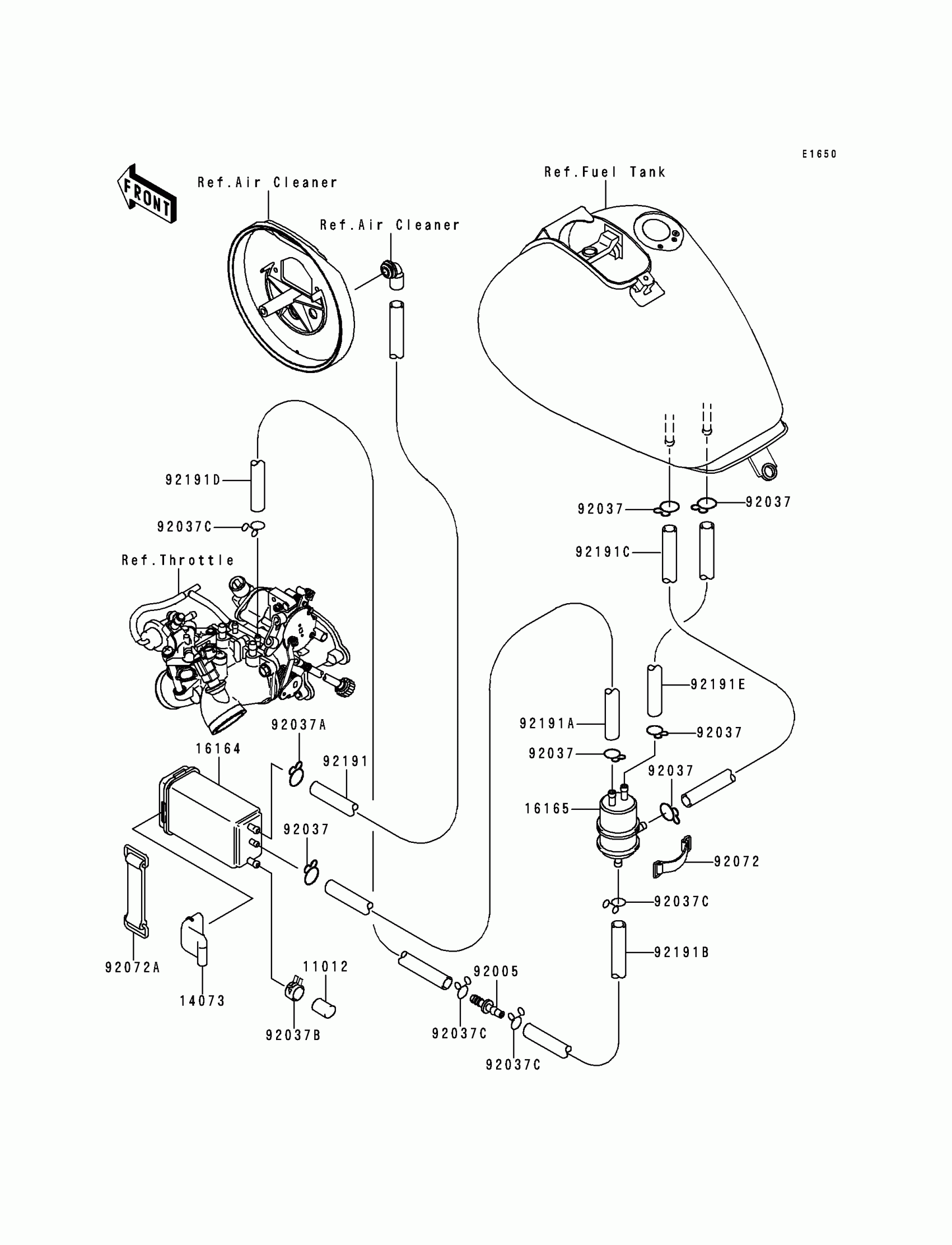

Kawasaki Vulcan 1500 Nomad Fi Fuel Evaporative System Diagram

Description

Price

11012

CAP,CANISTER

11012-1388

$8.31

14073

DUCT,CANISTER

14073-1219

$16.84

16164

CANISTER

16164-1070

$148.49

16165

SEPARATOR

16165-1001

$79.83

92005

FITTING

92005-1206

$6.62

92037

CLAMP,TUBE

92037-010

$2.99

92037A

CLAMP-HOSE

92037-1104

$1.09

92037B

CLAMP,CANISTER

92037-1512

$5.71

92037C

CLAMP

92037-1712

$3.81

92072

BAND,L=50

92072-066

$12.21

92072A

BAND,L=150

92072-1188

$10.92

92191

TUBE,CANISTER-CLEANER,GREEN

92191-1304

Unavailable

92191A

TUBE,SEPARATOR-CANISTER,BLUE

92191-1305

Unavailable

92191B

TUBE,THROTTLE-SEPARATOR,WHITE

92191-1375

$24.05

92191C

TUBE,TANK-SEPARATER,RED

92191-1413

Unavailable

92191D

TUBE,4X9X180,WHITE

92191-1414

$5.05

92191E

TUBE,TANK-SEPARATOR,BLUE

92191-1424

Unavailable
