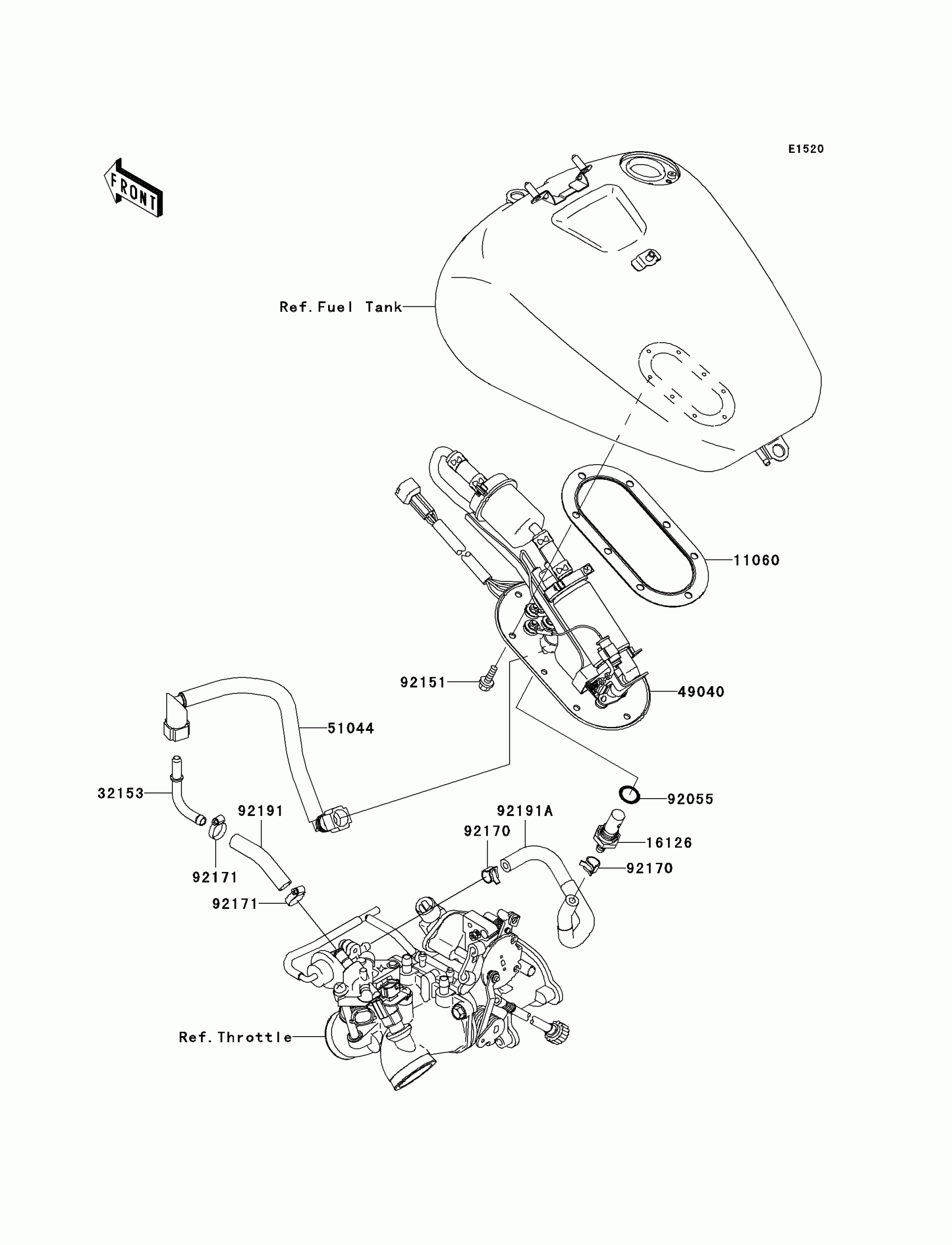

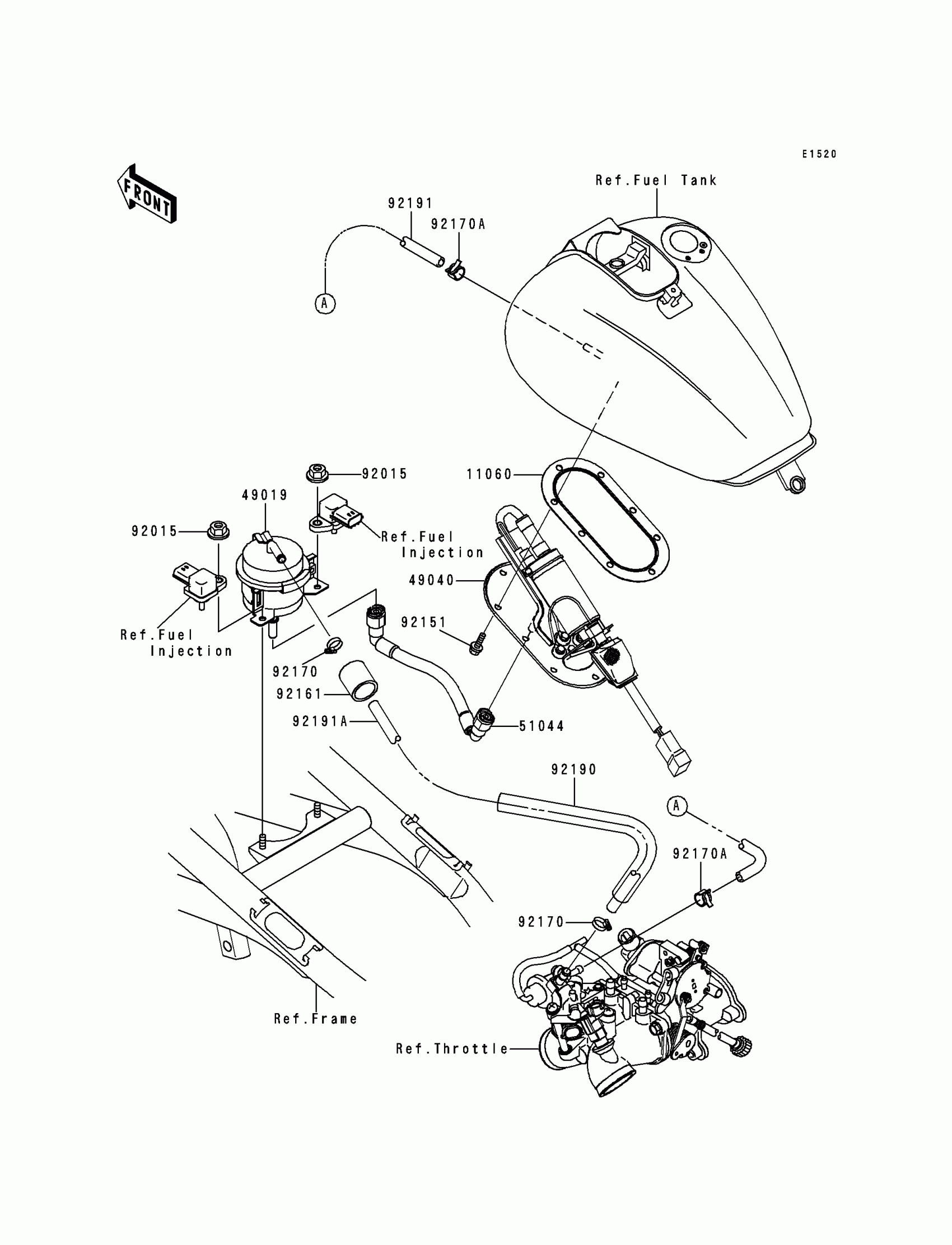

Kawasaki Vulcan 1500 Nomad Fi Fuel Pump Diagram

Description

Price

11060

GASKET

11060-1929

$49.36

49019

FILTER-FUEL

49019-1089

Unavailable

49040

PUMP-FUEL

49040-1066

$745.07

51044

TUBE-ASSY

51044-1209

Unavailable

92015

NUT,FLANGED,6MM,BLACK

92015-1386

Unavailable

92151

BOLT,5X12

92151-1599

$1.23

92161

DAMPER,23X29X30

92161-1080

$3.22

92170

CLAMP

92170-1278

$10.15

92170A

CLAMP

92170-1492

$3.81

92190

TUBE,16.5X20.5X55

92190-1462

$4.80

92191

TUBE,5.8X12.2X381.5

92191-1358

$40.58

92191A

TUBE,7.5X13.5X210

92191-1370

$21.78
