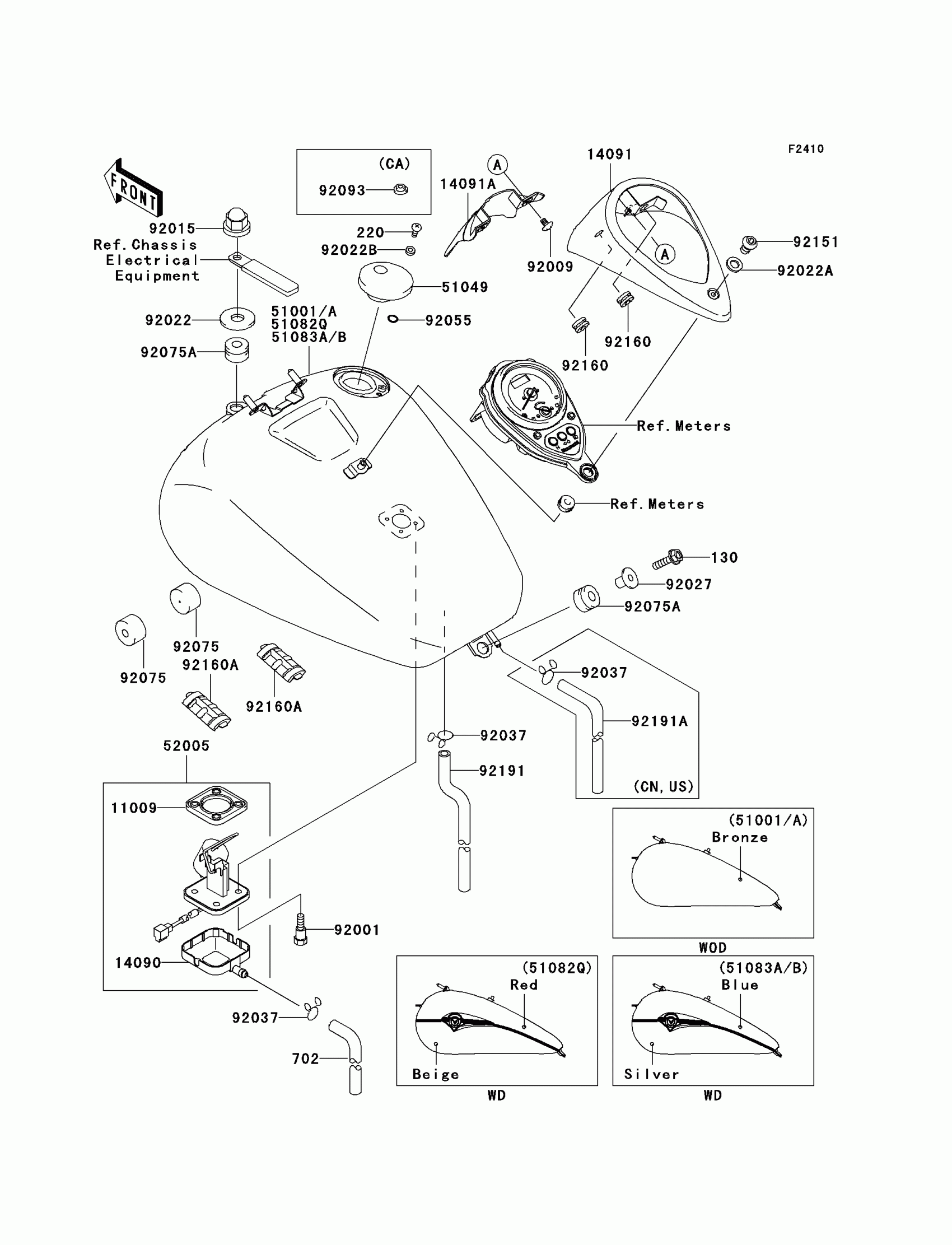

Kawasaki Vulcan 1500 Nomad Fi Fuel Tank Diagram

#

Description
Price

11009

GASKET,FUEL GAUGE

11009-1656

Unavailable

14090

COVER,FUEL GAUGE

14090-1624

$16.00

14091

COVER,METER

14091-1131

Unavailable

51049

CAP-TANK,FUEL

51049-1103

$112.77

52005

GAUGE,FUEL

52005-1129

$118.40

92001

BOLT,FUEL GAUGE

92001-1705

Unavailable

92022

WASHER,5.1X10X1.0

92022-1977

$2.76

92027

COLLAR,L=19.3

92027-1780

$4.93

92055

RING-O

92055-1023

$2.99

92071

GROMMET

92071-1187

$3.78

92075

DAMPER,FUEL TANK

92075-125

$4.67

92075A

DAMPER

92075-1736

$4.93

92075B

DAMPER,RUBBER

92075-261

$3.85

92152

COLLAR

92152-1100

$10.63

92160

DAMPER,FUEL TANK

92160-1907

Unavailable

92160A

DAMPER

92160-1941

$2.34

130

BOLT-FLANGED,8X30

130H0830

Unavailable

130A

BOLT-FLANGED,8X35

130J0835

Unavailable

220

SCREW-PAN-CROS,5X10

220D0510

Unavailable

702

TUBE-RUBBER,7X10X860

702A07860

$10.11

51081D

TANK-COMP-FUEL,RED/GRAY

51081-5216-C3

Unavailable

51081E

TANK-COMP-FUEL,BLACK MICA

51081-5217-20

Unavailable

51081F

TANK-COMP-FUEL,RED/GRAY

51081-5262-C3

Unavailable

51081G

TANK-COMP-FUEL,BLACK MICA

51081-5263-20

Unavailable

92037

CLAMP,TUBE

92037-147

$5.61

92037

CLAMP,TUBE

92037-147

$5.61

92093

SEAL,FUEL TANK CAP

92093-1030

$5.93

92191

TUBE,DRAIN

92191-1272

$23.59
