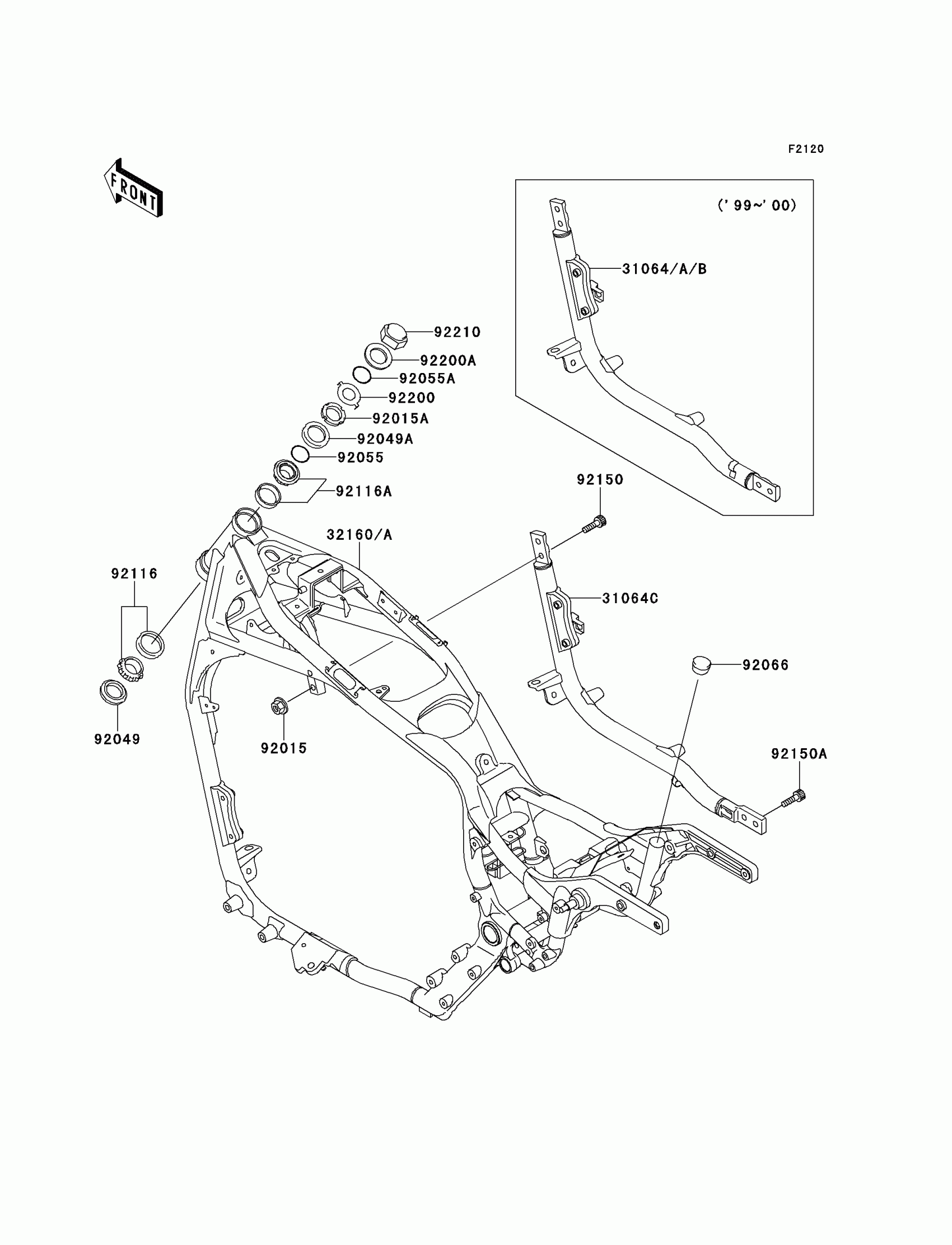

Kawasaki Vulcan 1500 Nomad Frame Diagram

Description

Price

31064C

PIPE-COMP,DOWNTUBU,RH

31064-1237

$499.33

32160A

FRAME-COMP

32160-1678

Unavailable

92015

NUT,FLANGED,10MM

92015-1727

$3.29

92015A

NUT,STEERING STEM,35MM

92015-1848

$44.93

92049

SEAL-OIL,XMHE 43 55 4J

92049-1383

$14.81

92049A

SEAL-OIL,MX043N2

92049-1483

$16.52

92055

RING-O,34.5X2.0

92055-1452

$3.98

92055A

RING-O,ID=24.5

92055-1459

$3.60

92066

PLUG

92066-1444

$6.80

92116

BEARING-ROLLER,32907JR-2

92116-1072

$73.29

92116A

BEARING-ROLLER,32907JR-3

92116-1074

$73.29

92150

BOLT,SOCKET,10X30

92150-1690

$4.67

92150A

BOLT,SOCKET,10X23

92150-1942

$5.61

92200

WASHER,CLAW,25.5X40X2.3

92200-1083

$5.71

92200A

WASHER,25.5X42X2.3

92200-1084

$7.49

92210

NUT,CAP,25MM

92210-1166

$22.58
