2001 Kawasaki Vulcan 1500 Nomad Footrests Diagram

← All diagrams

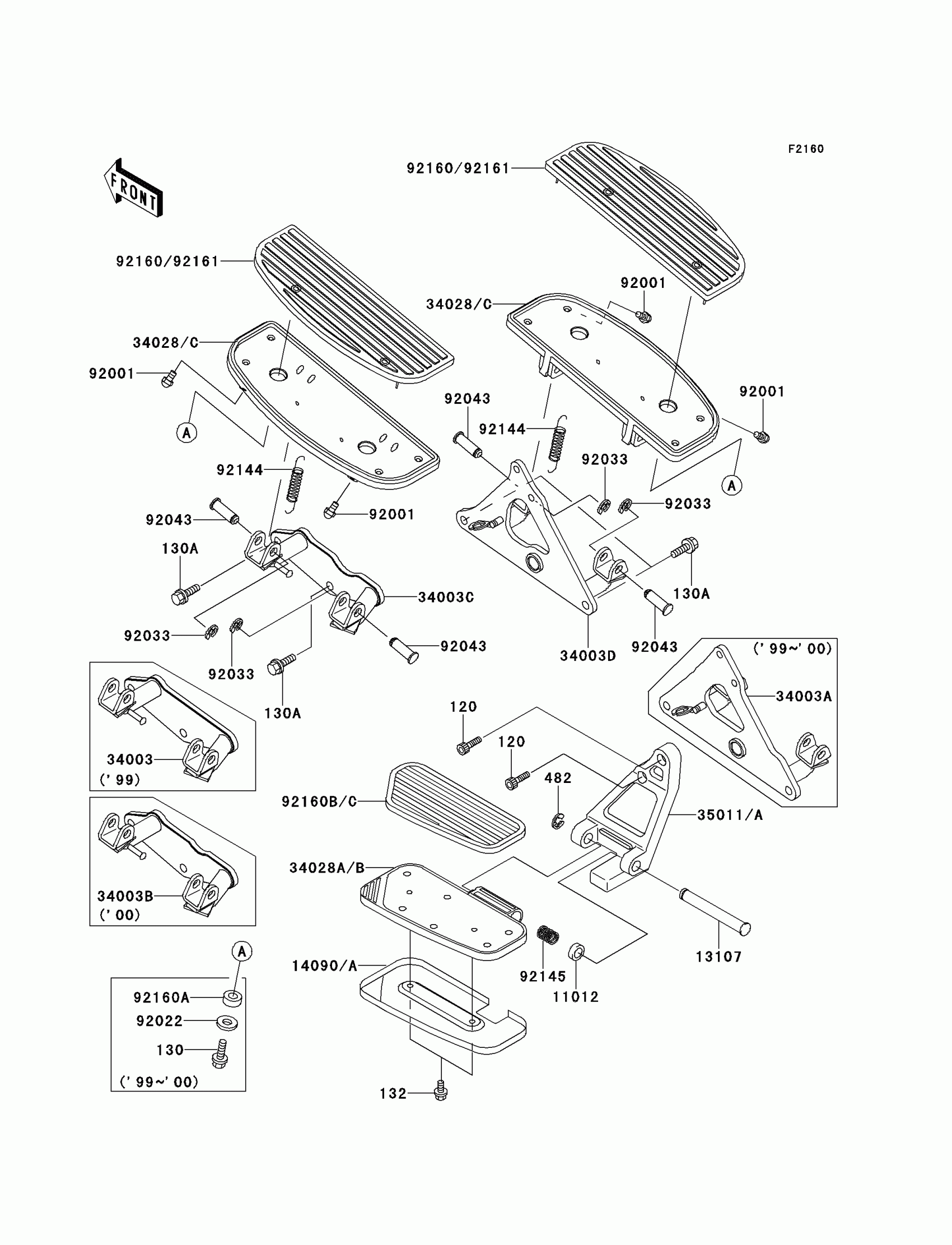

Find the part on the Footrests diagram for your 2001 Kawasaki Vulcan 1500 Nomad, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2001 Kawasaki Vulcan 1500 Nomad Footrests Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

120

BOLT-SOCKET,8X35

120S0835

1
Out of stock

130A

BOLT-FLANGED,10X30

130J1030

1
Out of stock

132

BOLT-FLANGED-SMALL,6X8

132E0608

1
Out of stock

482

CIRCLIP-TYPE-E

482L0200

1
Out of stock

11012

CAP

11012-1498

1
Out of stock

13107

SHAFT,REAR STEP

13107-1174

1
Out of stock

14090

COVER,REAR STEP,LH

14090-1907

1
Out of stock

14090A

COVER,REAR STEP,RH

14090-1908

1
Out of stock

34003C

HOLDER-STEP,FR,LH

34003-1501

1
Out of stock

34003D

HOLDER-STEP,FR,RH

34003-1502

1
Out of stock

34028A

STEP,RR,LH

34028-1459

1
Out of stock

34028B

STEP,RR,RH

34028-1460

1
Out of stock

34028C

STEP,FR

34028-1497

1
Out of stock

35011

STAY,REAR STEP,LH

35011-1897

1
Out of stock

35011A

STAY,REAR STEP,RH

35011-1898

1
Out of stock

92001

BOLT,BANK SENSOR

92001-1905

1
Out of stock

92033

RING-SNAP,10MM

92033-1166

1
Out of stock

92043

PIN,12X37

92043-1358

1
Out of stock

92144

SPRING

92144-1266

1
Out of stock

92145

SPRING,REAR STEP

92145-1130

1
Out of stock

92160B

DAMPER,REAR STEP,LH

92160-1904

1
Out of stock

92160C

DAMPER,REAR STEP,RH

92160-1905

1
Out of stock

92161

DAMPER,FRONT STEP

92161-1154

1
Out of stock
