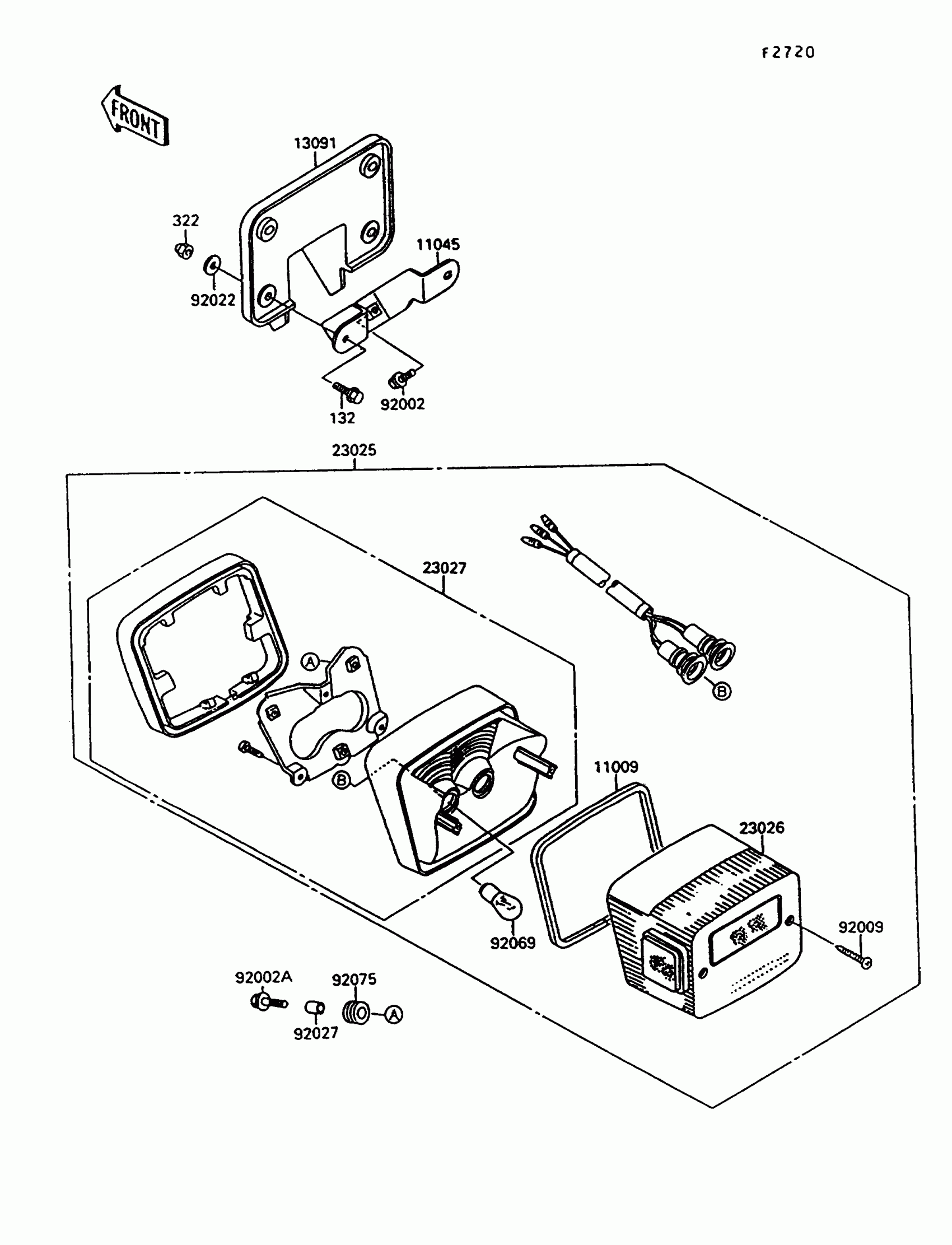

Find the part on the Taillight diagram for your 1997 Kawasaki Vulcan 1500 L, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1997 Kawasaki Vulcan 1500 L Taillight Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

132

BOLT-FLANGED-SMALL

132J0614

1
Out of stock

322

NUT-CAP,6MM,BLACK

322C0600

1
Out of stock

11009

GASKET,TAIL LAMP LENS

11009-1660

1
Out of stock

11045

BRACKET,LICENSE PLATE

11045-1582

1
Out of stock

13091

HOLDER,LICENSE PLATE

13091-1480

1
Out of stock

23025

LAMP-TAIL

23025-1165

1
Out of stock

23026

LENS,TAIL LAMP

23026-1087

1
Out of stock

23027

BODY-COMP-TAIL LAMP

23027-1084

1
Out of stock

92002

BOLT,6X14

92002-1218

1
Out of stock

92002A

BOLT,UPSET-WP,6X22

92002-1262

1
Out of stock

92009

SCREW,TAPPING,4X25

92009-1069

1
Out of stock

92022

WASHER,6.5X20X1.6,BLACK

92022-1346

1
Out of stock

92027

COLLAR,6.8X10X12

92027-162

1
Out of stock

92069

BULB,12V 27/8W

92069-059

1
Out of stock

92075

DAMPER RUBBER,RR FENR

92075-209

1
Out of stock
