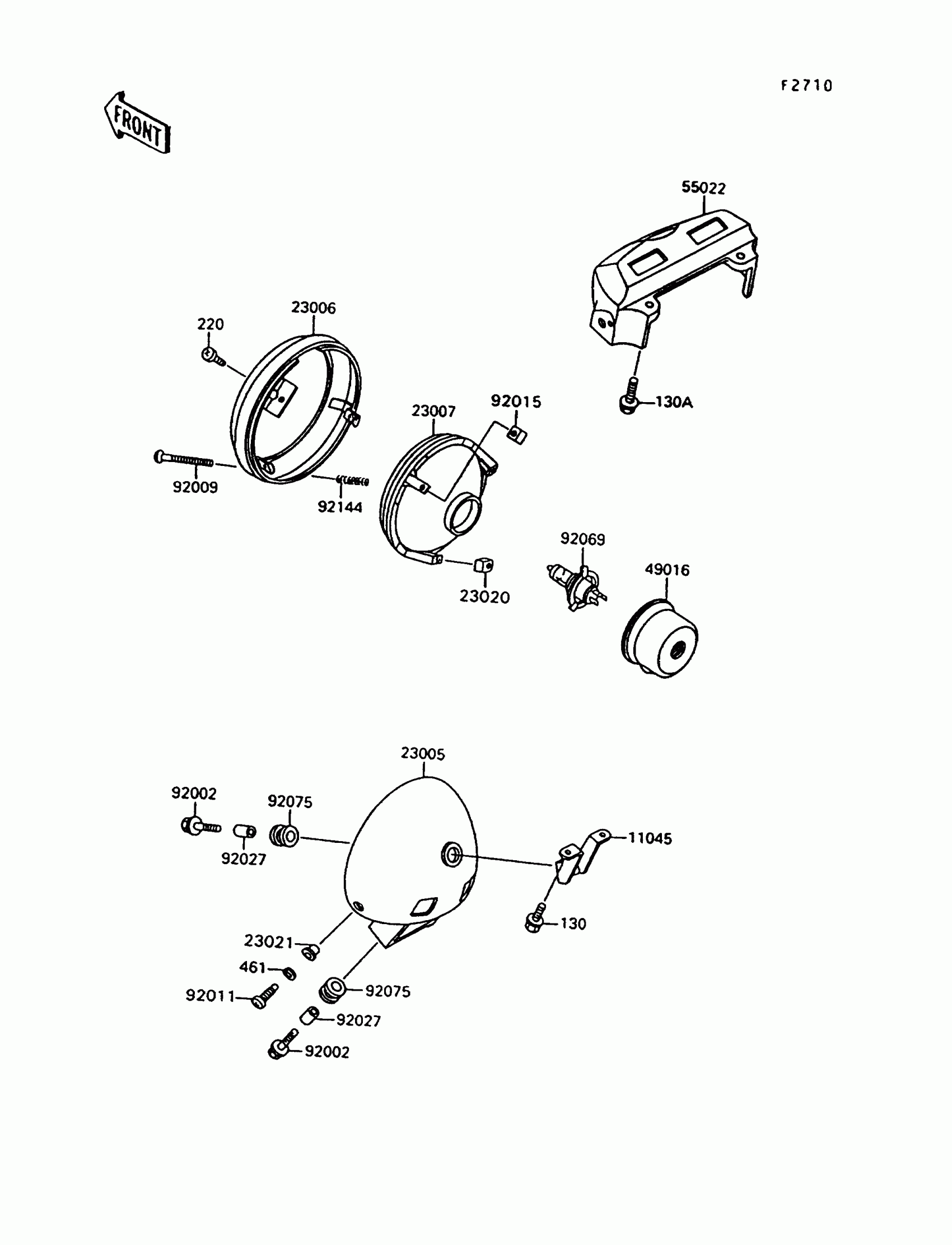

Kawasaki Vulcan 1500 L Headlight(s) Diagram

Description

Price

130

BOLT-FLANGED

130D0612

Unavailable

130A

BOLT-FLANGED,8X25

130N0825

$7.15

220

SCREW-PAN-CROS,5X12

220D0512

$0.47

461

WASHER SPRING 5MM

461F0500

Unavailable

11045

BRACKET,HEAD LAMP

11045-1598

Unavailable

23005

BODY-COMP-HEAD LAMP

23005-1086

Unavailable

23006

RIM-LAMP

23006-1059

$100.81

23007

LENS-COMP,HEAD LAMP

23007-1169

$156.62

23020

NUT,4MM,FOCUS ADJUST

23020-018

$3.54

23021

WASHER

23021-010

$3.29

49016

COVER-SEAL,HEAD LAMP SOCKET

49016-1129

$9.69

55022

COVER-HEAD LAMP

55022-1059

$328.63

92002

BOLT,6X25

92002-1135

$3.85

92009

SCREW,FOCUS ADJUST,4X65

92009-1472

$4.95

92011

SCREW,5MM

92011-024

$1.82

92015

NUT,5MM

92015-1157

$4.32

92027

COLLAR,6.8X10X14.5

92027-156

$3.81

92069

BULB,12V 60/55W,H4

92069-1002

Unavailable

92075

DAMPER

92075-1035

$5.07

92144

SPRING,FOCUS ADJUST

92144-1149

$7.98
