1997 Kawasaki Vulcan 1500 L Ignition Switch/locks/reflectors Diagram

← All diagrams

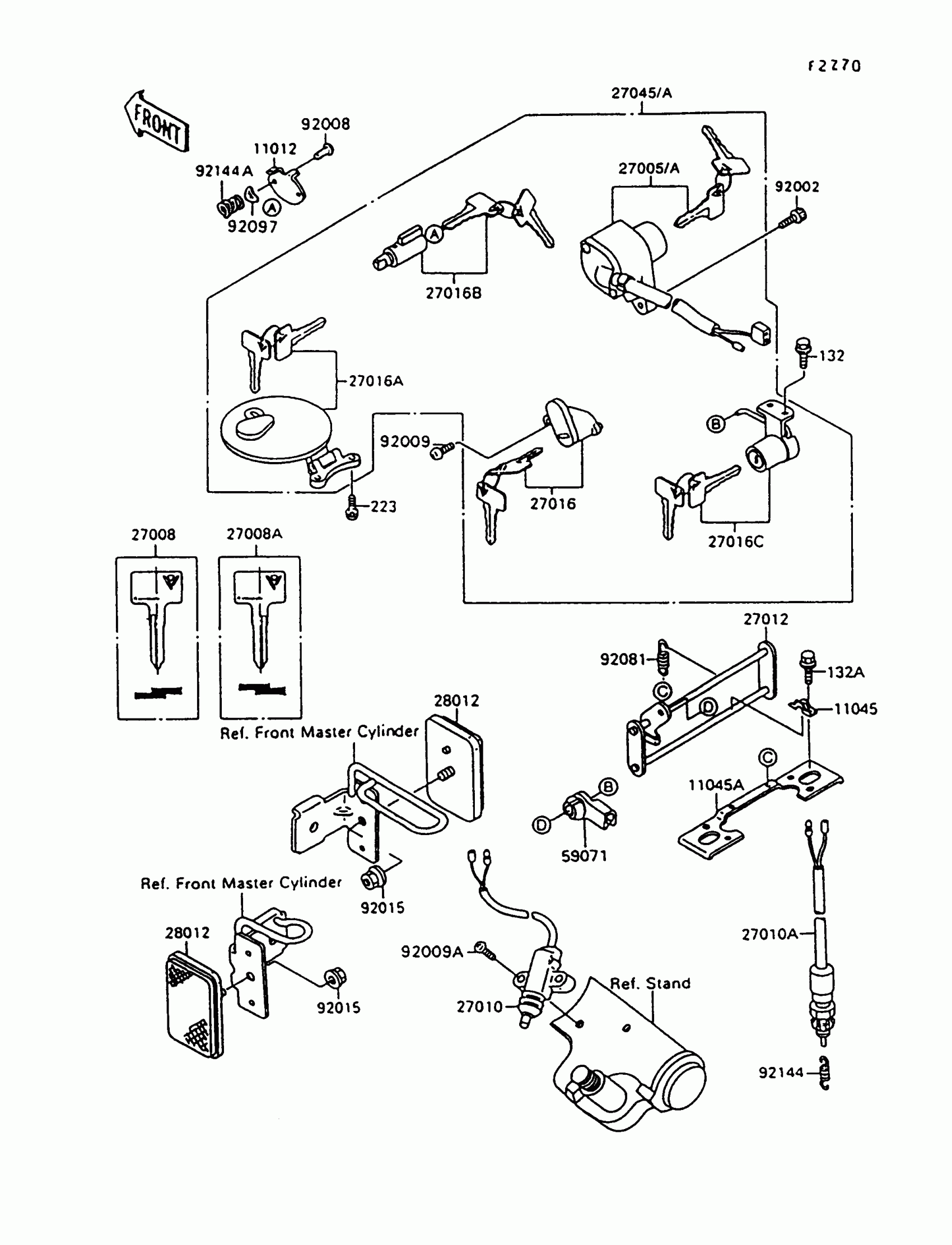

Find the part on the Ignition Switch/locks/reflectors diagram for your 1997 Kawasaki Vulcan 1500 L, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1997 Kawasaki Vulcan 1500 L Ignition Switch/locks/reflectors Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

132

BOLT-FLANGED-SMALL,6X8

132G0608

1
Out of stock

132A

BOLT-FLANGED-SMALL,6X12

132J0612

1
Out of stock

223

SCREW-PAN-WS-CROS

223B0410

1
Out of stock

11012

CAP,STEERING LOCK

11012-1586

1
Out of stock

11045

BRACKET,SEAT HOOK

11045-1700

1
Out of stock

11045A

BRACKET,SEAT HOOK

11045-1701

1
Out of stock

27005A

SWITCH-ASSY-IGNITION

27005-1205

1
Out of stock

27008

KEY-LOCK,BLANK,#A

27008-1138

1
Out of stock

27008A

KEY-LOCK,BLANK,#B

27008-1139

1
Out of stock

27010

SWITCH,SIDE STAND

27010-1223

1
Out of stock

27010A

SWITCH,REAR BRAKE

27010-1238

1
Out of stock

27012

HOOK,SEAT

27012-1371

1
Out of stock

27016

LOCK-ASSY,HELMET

27016-5129

1
Out of stock

27016A

LOCK-ASSY,FUEL TANK COVER

27016-5130

1
Out of stock

27016B

LOCK-ASSY,STEERING

27016-5131

1
Out of stock

27016C

LOCK-ASSY,SEAT

27016-5132

1
Out of stock

27045A

SWITCH-ASSY

27045-5046

1
Out of stock

28012

REFLECTOR-REFLEX,FR

28012-1009

1
Out of stock

59071

JOINT

59071-1103

1
Out of stock

92002

BOLT,SOCKET,5X12

92002-1173

1
Out of stock

92008

SCREW,3.51MM

92008-007

1
Out of stock

92009

SCREW,5X12

92009-1296

1
Out of stock

92009A

SCREW,5X20

92009-1459

1
Out of stock

92015

NUT,FLANGED,5MM

92015-1656

1
Out of stock

92081

SPRING,HOOK RETURN

92081-1466

1
Out of stock

92097

WASHER,WAVE

92097-003

1
Out of stock

92144

SPRING,REAR BRAKE SWITCH

92144-1141

1
Out of stock

92144A

SPRING,STEERING LOCK

92144-1222

1
Out of stock
