1997 Kawasaki Vulcan 1500 L Chassis Electrical Equipment Diagram

← All diagrams

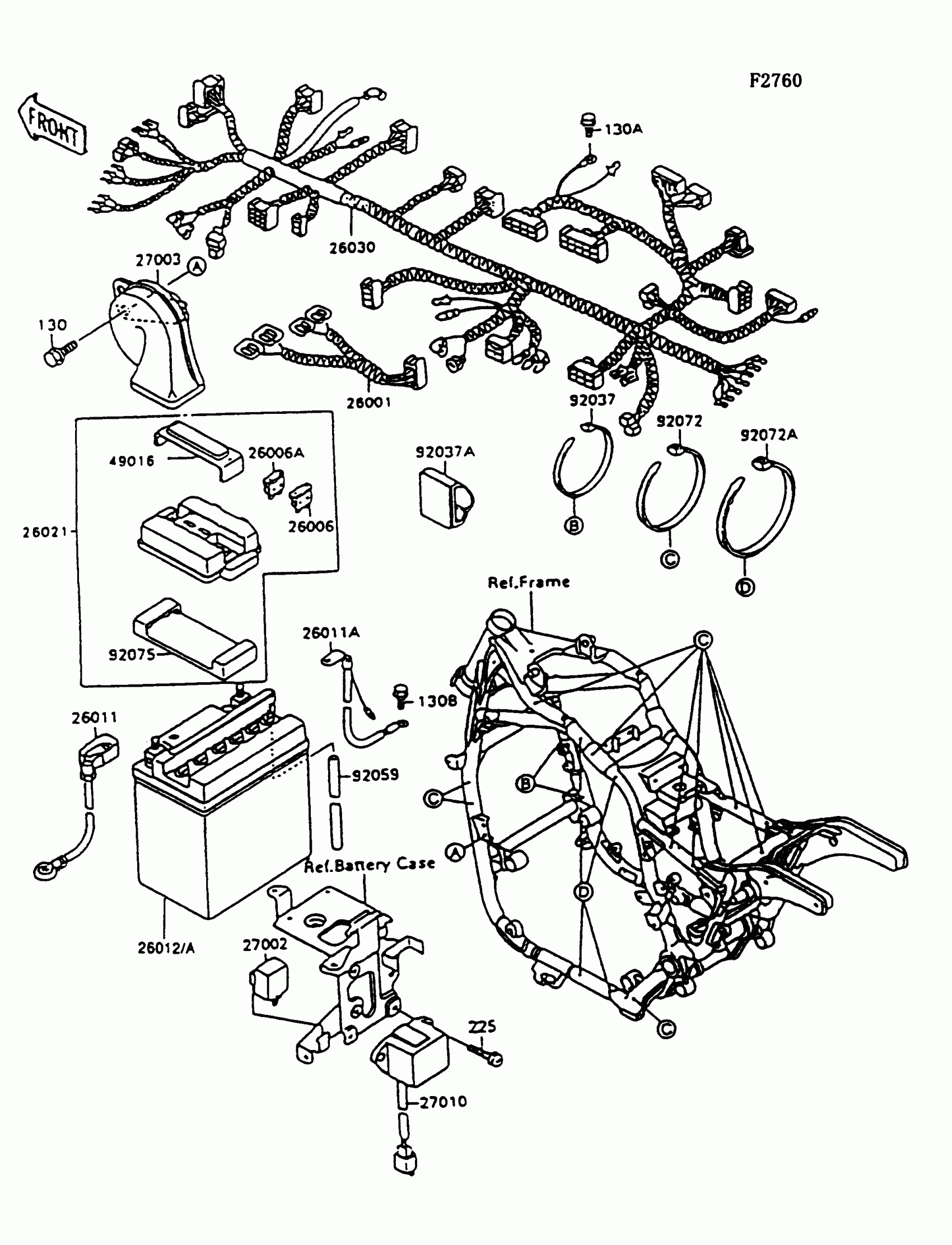

Find the part on the Chassis Electrical Equipment diagram for your 1997 Kawasaki Vulcan 1500 L, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1997 Kawasaki Vulcan 1500 L Chassis Electrical Equipment Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

130

BOLT-FLANGED,6X10

130C0610

1
Out of stock

130A

BOLT-FLANGED

130J0610

1
Out of stock

130B

BOLT-FLANGED,6X10

130V0610

1
Out of stock

225

SCREW-PAN-WSP-CROS,6X20

225B0620

1
Out of stock

26001

HARNESS,IGNITION

26001-1862

1
Out of stock

26006

FUSE,BLADE,30A,GREEN

26006-1067

1
Out of stock

26006A

FUSE,10A-R

26006-1068

1
Out of stock

26011

WIRE-LEAD,BATTERY(+)

26011-1391

1
Out of stock

26011A

WIRE-LEAD,BATTERY(-)

26011-1392

1
Out of stock

26012A

1

$101.74

In stock

26021

JUNCTION BOX

26021-1089

1
Out of stock

26030

HARNESS,MAIN

26030-1331

1
Out of stock

27002

1

$53.03

In stock

27003

HORN,LOW TONE

27003-1264

1
Out of stock

27010

1

$228.55

In stock

49016

COVER-SEAL,FUSE

49016-1177

1
Out of stock

92037

CLAMP,BAND,L=137

92037-1817

1
Out of stock

92037A

CLAMP,WIRING HARNESS

92037-1954

1
Out of stock

92059

TUBE,5X8X570

92059-1840

1
Out of stock

92072

BAND,L=202

92072-1195

1

$1.34

In stock

92072A

BAND,L=365

92072-1197

1

$7.71

In stock

92075

DAMPER,JUNCTION BOX

92075-1688

1

$13.64

In stock
