2000 Kawasaki Vulcan 1500 Drifter Turn Signals Diagram

← All diagrams

Find the part on the Turn Signals diagram for your 2000 Kawasaki Vulcan 1500 Drifter, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

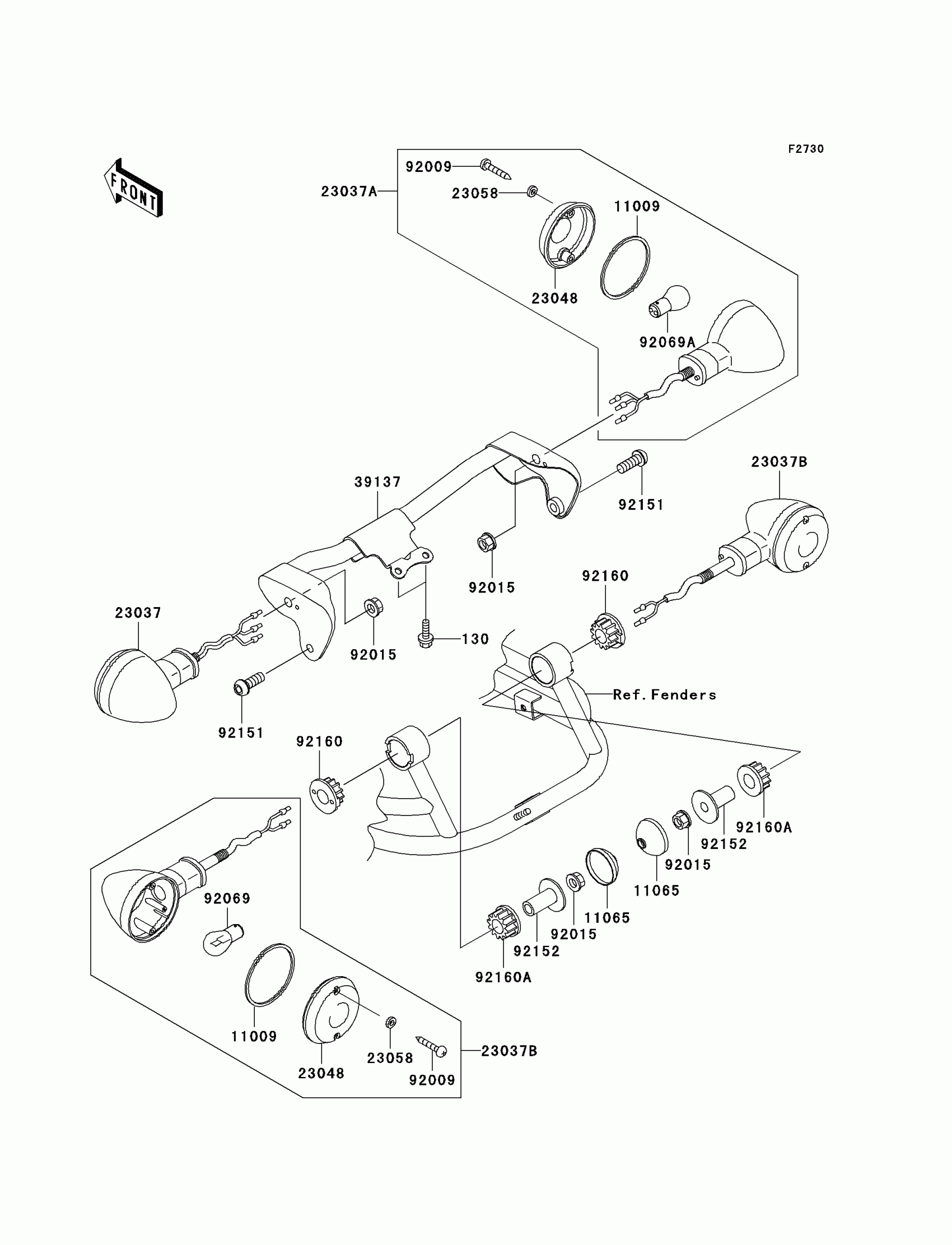

2000 Kawasaki Vulcan 1500 Drifter Turn Signals Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

130

BOLT-FLANGED,6X12

130J0612

1
Out of stock

11009

GASKET,SIGNAL LAMP

11009-1413

1
Out of stock

11065

CAP,REAR SIGNAL LAMP

11065-1115

1
Out of stock

23037

LAMP-ASSY-SIGNAL,FR,LH

23037-1357

1
Out of stock

23037A

LAMP-ASSY-SIGNAL,FR,RH

23037-1358

1
Out of stock

23037B

LAMP-ASSY-SIGNAL,RR

23037-1359

1
Out of stock

23048

LENS-SIGNAL LAMP,FR

23048-1066

1
Out of stock

23058

WASHER,PLAIN,4MM

23058-002

1
Out of stock

39137

STAY-COMP,SIGNAL LAMP,FR

39137-1072

1
Out of stock

92009

SCREW,TAPPING,4X25

92009-1637

1
Out of stock

92015

NUT,FLANGED,10MM

92015-1428

1
Out of stock

92069

BULB,12V 32CP(23W)

92069-055

1
Out of stock

92069A

BULB,12V 32/3CP(23/8W)

92069-060

1
Out of stock

92151

BOLT,SOCKET,8X25

92151-1327

1
Out of stock

92152

COLLAR,REAR SIGNAL LAMP

92152-1202

1
Out of stock

92160

DAMPER

92160-1966

1
Out of stock

92160A

DAMPER

92160-1967

1
Out of stock
