2000 Kawasaki Vulcan 1500 Drifter Starter Motor Diagram

← All diagrams

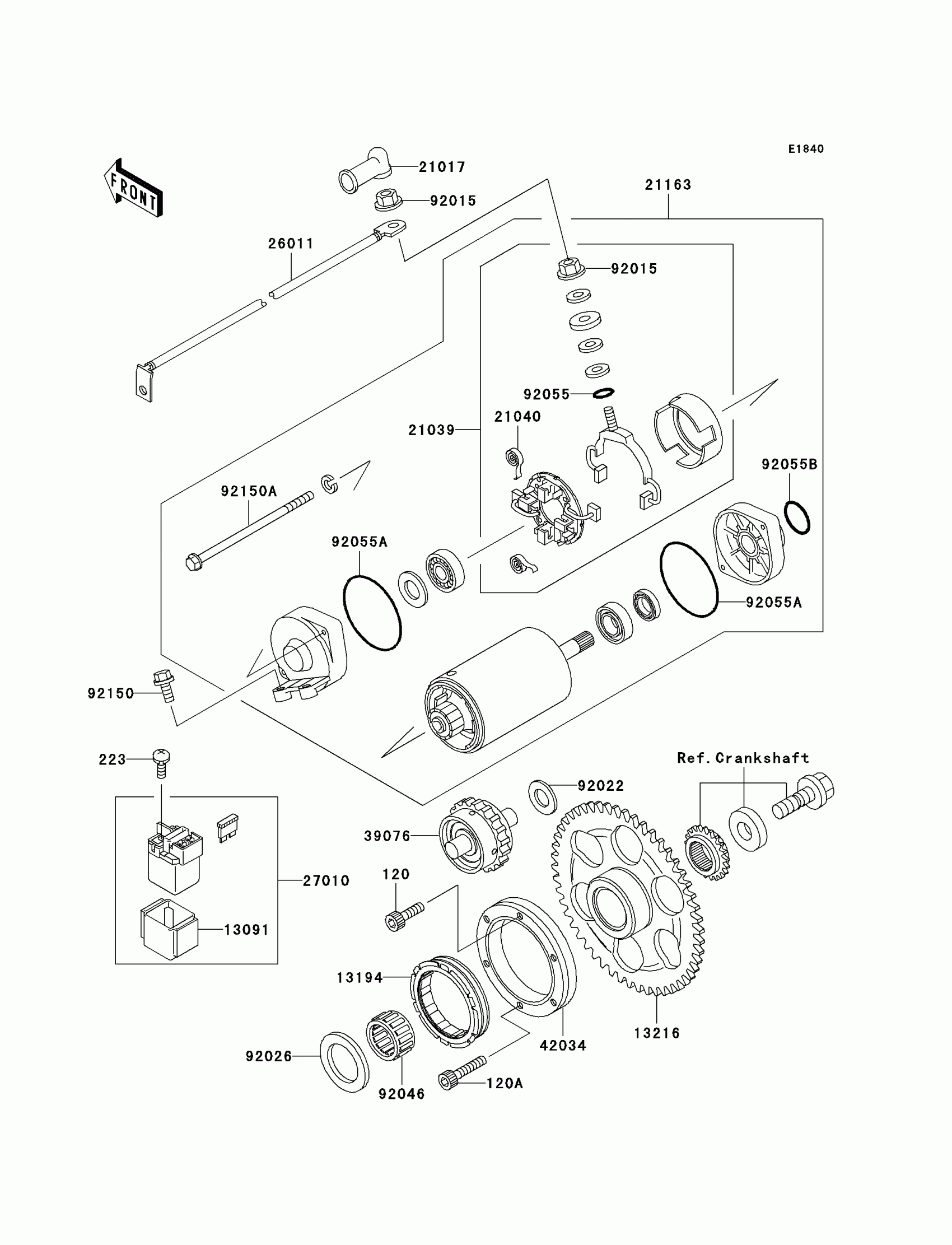

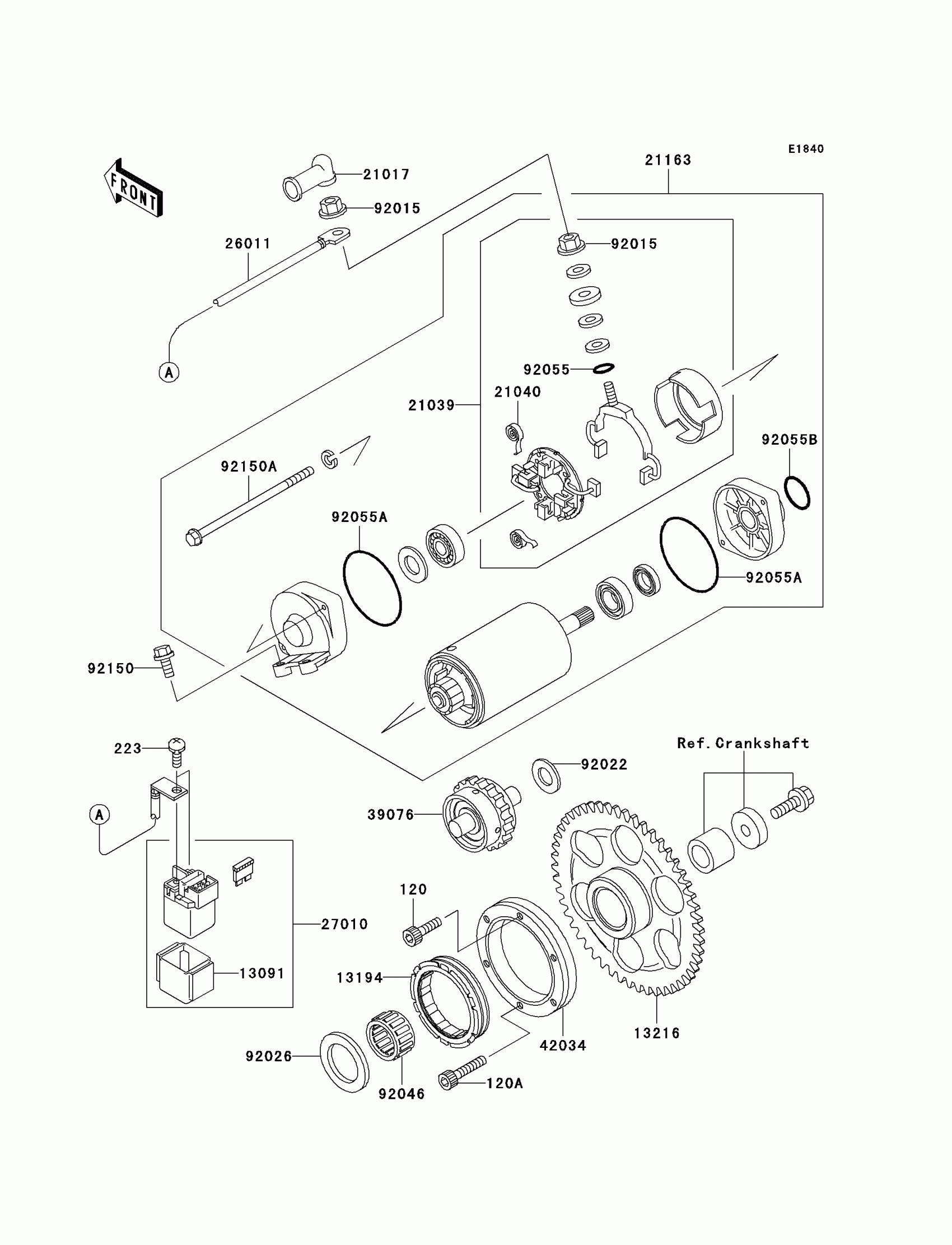

Find the part on the Starter Motor diagram for your 2000 Kawasaki Vulcan 1500 Drifter, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2000 Kawasaki Vulcan 1500 Drifter Starter Motor Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

120

BOLT-SOCKET,6X20

120S0620

1
Out of stock

120A

BOLT-SOCKET,6X30

120S0630

1
Out of stock

223

SCREW-PAN-WS-CROS,5X10

223D0510

1
Out of stock

13091

1

$11.90

In stock

13194

CLUTCH-ONEWAY

13194-1088

1

$174.61

In stock

13216

GEAR-COMP,FREE WHEEL

13216-1115

1
Out of stock

21017

1

$7.48

In stock

21039

BRUSH,CARBON

21039-1060

1

$85.95

In stock

21040

SPRING-BRUSH

21040-1055

1

$8.24

In stock

21163

STARTER-ELECTRIC

21163-1271

1

$661.71

In stock

26011

WIRE-LEAD

26011-1713

1
Out of stock

27010

SWITCH,MAGNETIC

27010-1327

1
Out of stock

39076

1

$294.64

In stock

42034

COUPLING

42034-1093

1

$103.55

In stock

92015

NUT,STARTER MOTOR

92015-1476

1

$3.85

In stock

92022

WASHER,12X27.5X1.0

92022-1852

1
Out of stock

92026

SPACER,31X49.5X1.2

92026-1490

1

$10.25

In stock

92046

BEARING-NEEDLE,K30X35X20

92046-1171

1
Out of stock

92055

RING-O,4.5X2.0

92055-1370

1

$4.17

In stock

92055A

1

$9.58

In stock

92055B

RING-O,37MM

92055-1393

1
Out of stock

92150

BOLT,FLANGED-SMALL,6X25

92150-1779

1
Out of stock

92150A

BOLT,STARTER MOTOR

92150-1913

1

$9.22

In stock
