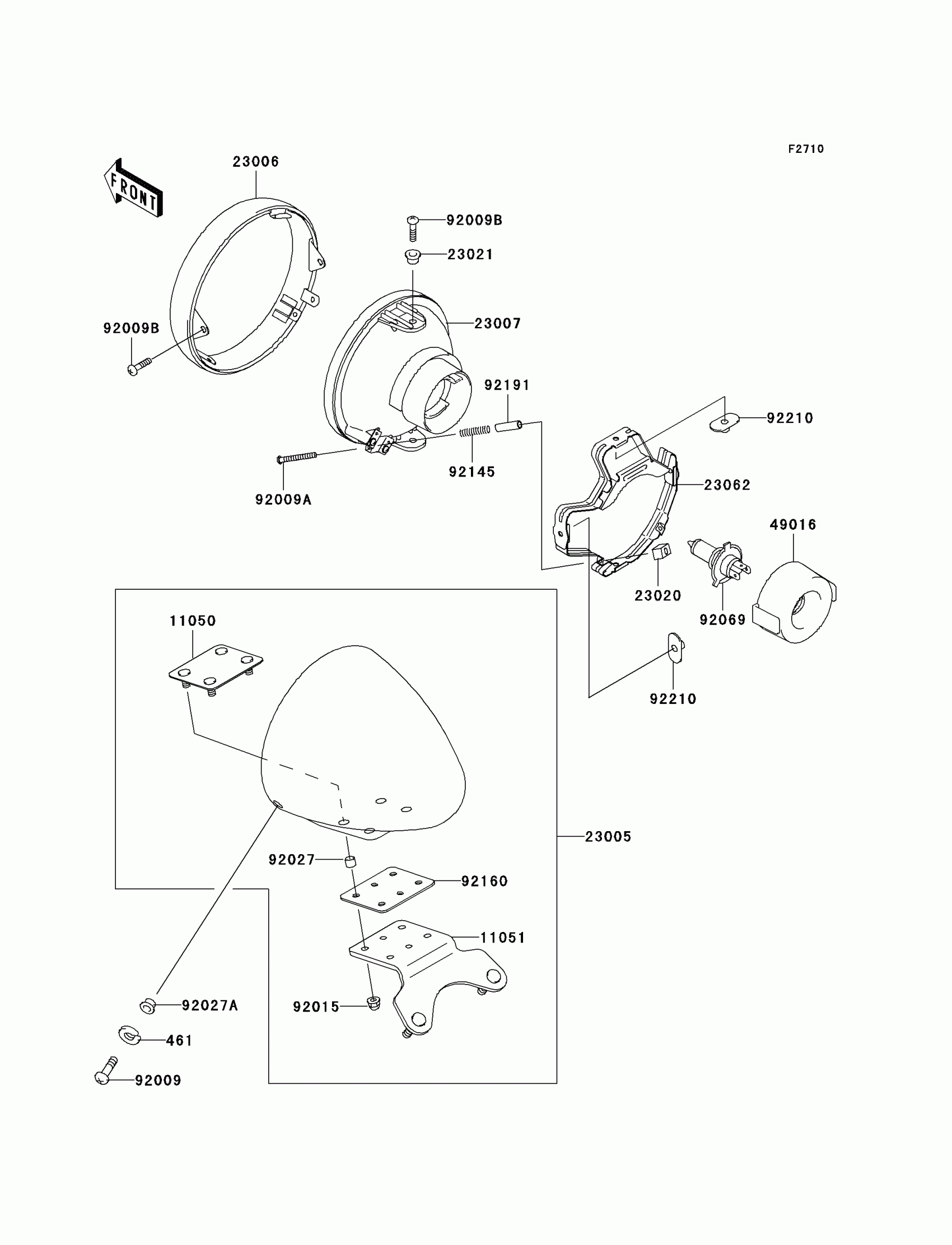

Find the part on the Headlight diagram for your 2000 Kawasaki Vulcan 1500 Drifter, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

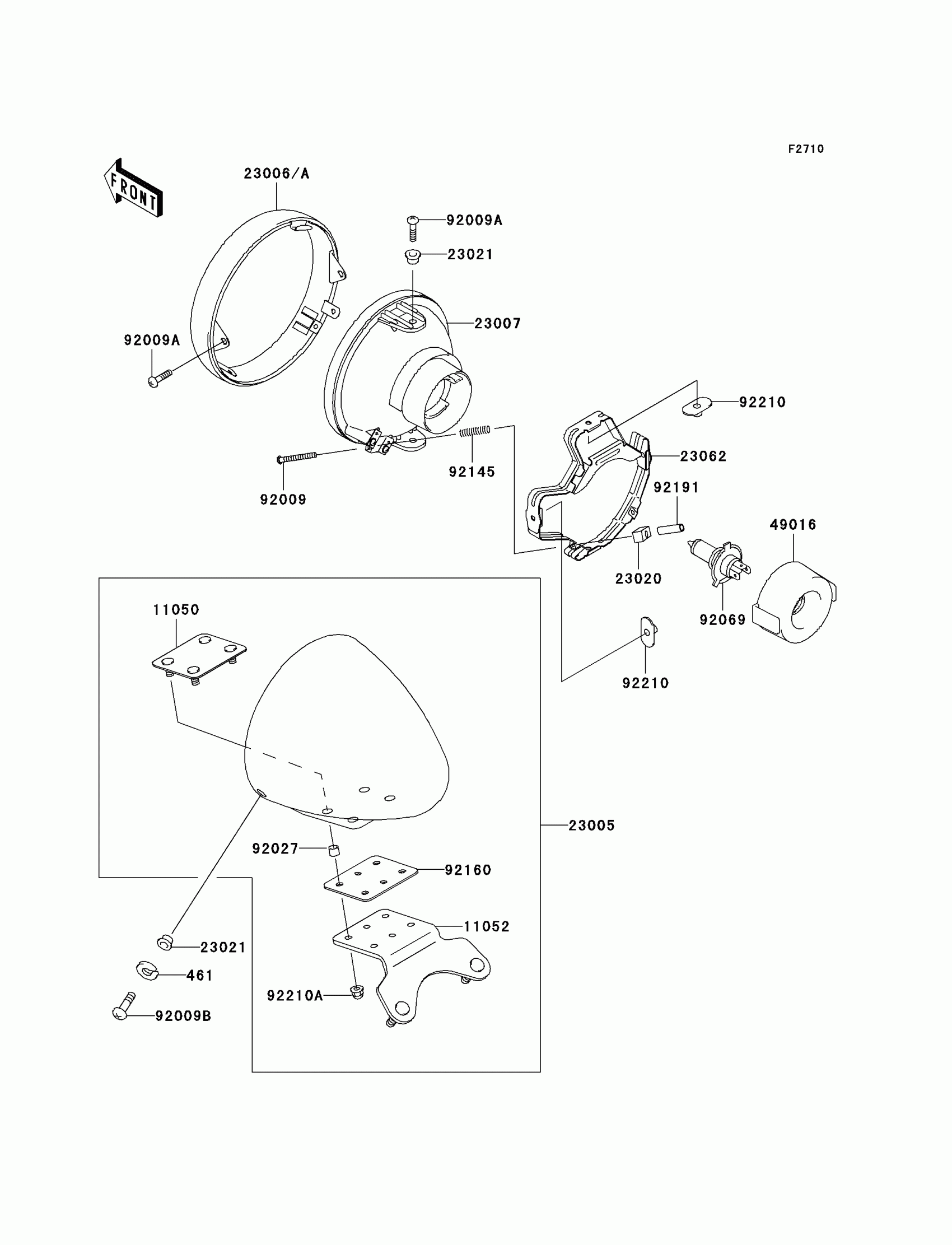

2000 Kawasaki Vulcan 1500 Drifter Headlight Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

461

WASHER-SPRING,5MM,BLACK

461K0500

1
Out of stock

11050

1

$64.75

In stock

11051

BRACKET,HEAD LAMP BODY

11051-1085

1
Out of stock

23005

1

$488.36

In stock

23006

RIM-LAMP

23006-1079

1

$98.71

In stock

23007

LENS-COMP,HEAD LAMP

23007-1359

1

$180.47

In stock

23020

1

$3.69

In stock

23021

WASHER

23021-010

1

$3.43

In stock

23062

1

$63.86

In stock

49016

COVER-SEAL,SOCKET

49016-1203

1

$11.61

In stock

92009

SCREW,5X16

92009-1693

1
Out of stock

92009A

SCREW,FOCUS ADJUST,4X60

92009-1816

1
Out of stock

92009B

SCREW,5X16

92009-1879

1
Out of stock

92015

NUT,CAP,6MM,BLACK

92015-1170

1
Out of stock

92027

COLLAR

92027-103

1

$2.78

In stock

92027A

1

$3.92

In stock

92069

BULB,12V 60/55W,H4

92069-1002

1
Out of stock

92145

1

$4.39

In stock

92160

DAMPER

92160-1960

1

$10.22

In stock

92191

TUBE,3.5X5.5X19

92191-1217

1

$2.02

In stock

92210

NUT,SPECIAL,5MM

92210-1060

1
Out of stock
