2000 Kawasaki Vulcan 1500 Drifter Ignition Switch/locks/reflectors Diagram

← All diagrams

Find the part on the Ignition Switch/locks/reflectors diagram for your 2000 Kawasaki Vulcan 1500 Drifter, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

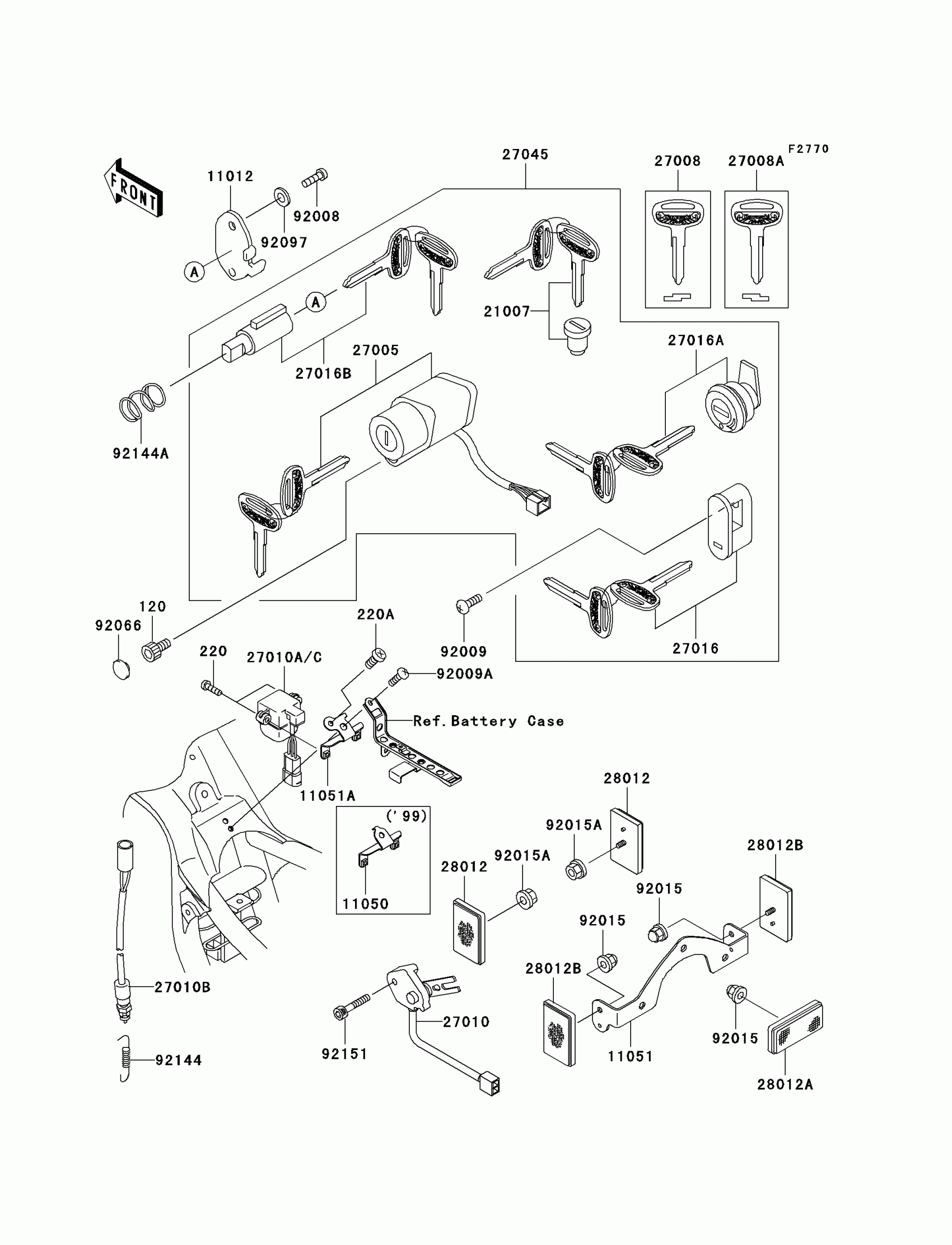

2000 Kawasaki Vulcan 1500 Drifter Ignition Switch/locks/reflectors Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

120

BOLT-SOCKET

120P0512

1
Out of stock

220

SCREW-PAN-CROS,4X20

220C0420

1
Out of stock

220A

SCREW-PAN-CROS,6X12

220C0612

1
Out of stock

11012

CAP,STEERING LOCK

11012-1586

1
Out of stock

11051

BRACKET,REFLECTOR

11051-1100

1

$14.78

In stock

11051A

BRACKET,DOWN SENSOR

11051-1763

1

$14.78

In stock

21007

ROTOR,LOCK,TANK CAP

21007-5041

1

$74.13

In stock

27005

1

$204.64

In stock

27008

KEY-LOCK,BLANK,#A

27008-1179

1
Out of stock

27008A

KEY-LOCK,BLANK,#B

27008-1180

1

$25.78

In stock

27010

SWITCH,SIDE STAND

27010-1359

1

$74.99

In stock

27010B

SWITCH,REAR BRAKE

27010-1412

1
Out of stock

27010C

SWITCH,DOWN SENSOR

27010-1416

1
Out of stock

27016

LOCK-ASSY,HELMET

27016-5243

1

$69.10

In stock

27016A

LOCK-ASSY,LID

27016-5244

1

$74.62

In stock

27016B

LOCK-ASSY,STEERING

27016-5255

1

$87.55

In stock

27045

SWITCH-ASSY

27045-5082

1
Out of stock

28012

REFLECTOR-REFLEX

28012-1003

1

$20.69

In stock

28012A

REFLECTOR-REFLEX

28012-1077

1

$21.76

In stock

28012B

REFLECTOR-REFLEX

28012-1088

1

$20.82

In stock

92008

SCREW,3.51MM

92008-007

1
Out of stock

92009

SCREW,5X12

92009-1296

1
Out of stock

92009A

SCREW,6X16

92009-1621

1
Out of stock

92015

NUT,LOCK,FLANGE CAP,5MM

92015-1263

1
Out of stock

92015A

NUT,FLANGED,5MM

92015-1656

1

$2.59

In stock

92066

PLUG

92066-1435

1

$2.25

In stock

92097

WASHER,WAVE

92097-003

1

$3.57

In stock

92144

1

$4.34

In stock

92144A

1

$3.98

In stock

92151

BOLT,SOCKET,6X35

92151-1390

1

$2.03

In stock
