2000 Kawasaki Vulcan 1500 Drifter Seat Diagram

← All diagrams

Find the part on the Seat diagram for your 2000 Kawasaki Vulcan 1500 Drifter, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

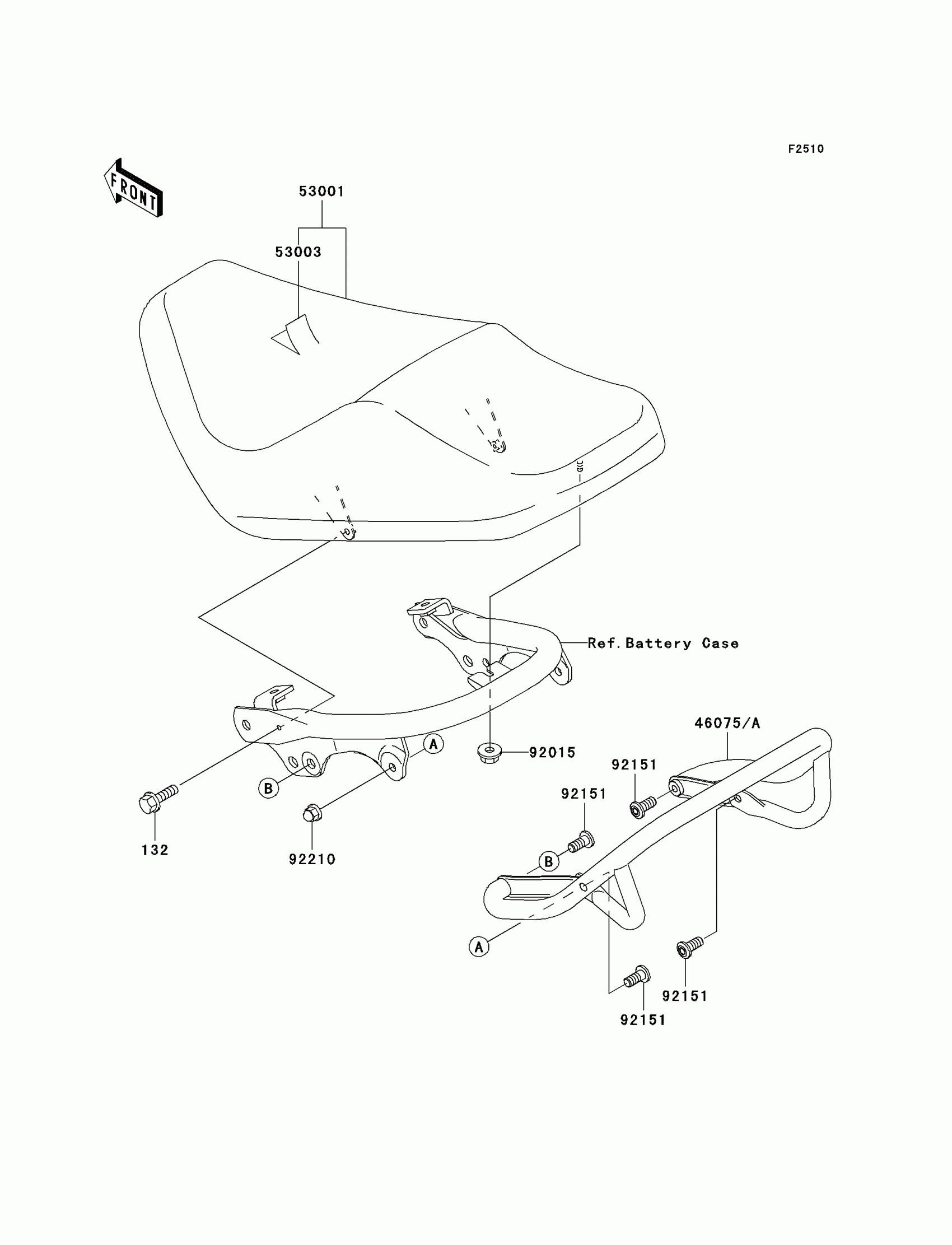

2000 Kawasaki Vulcan 1500 Drifter Seat Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

132

BOLT-FLANGED-SMALL

132J0614

1
Out of stock

46075A

GRIP

46075-1186

1

$210.26

In stock

53001

SEAT-ASSY,DUAL,BLACK

53001-1886-MA

1

$758.50

In stock

53003

LEATHER,SEAT,BLACK

53003-1431-MA

1

$274.45

In stock

92015

1

$3.72

In stock

92151

BOLT,SOCKET,10X22

92151-1577

1

$2.42

In stock

92210

NUT,CAP,10MM

92210-1189

1
Out of stock
