2000 Kawasaki Vulcan 1500 Drifter Footrests Diagram

← All diagrams

Find the part on the Footrests diagram for your 2000 Kawasaki Vulcan 1500 Drifter, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

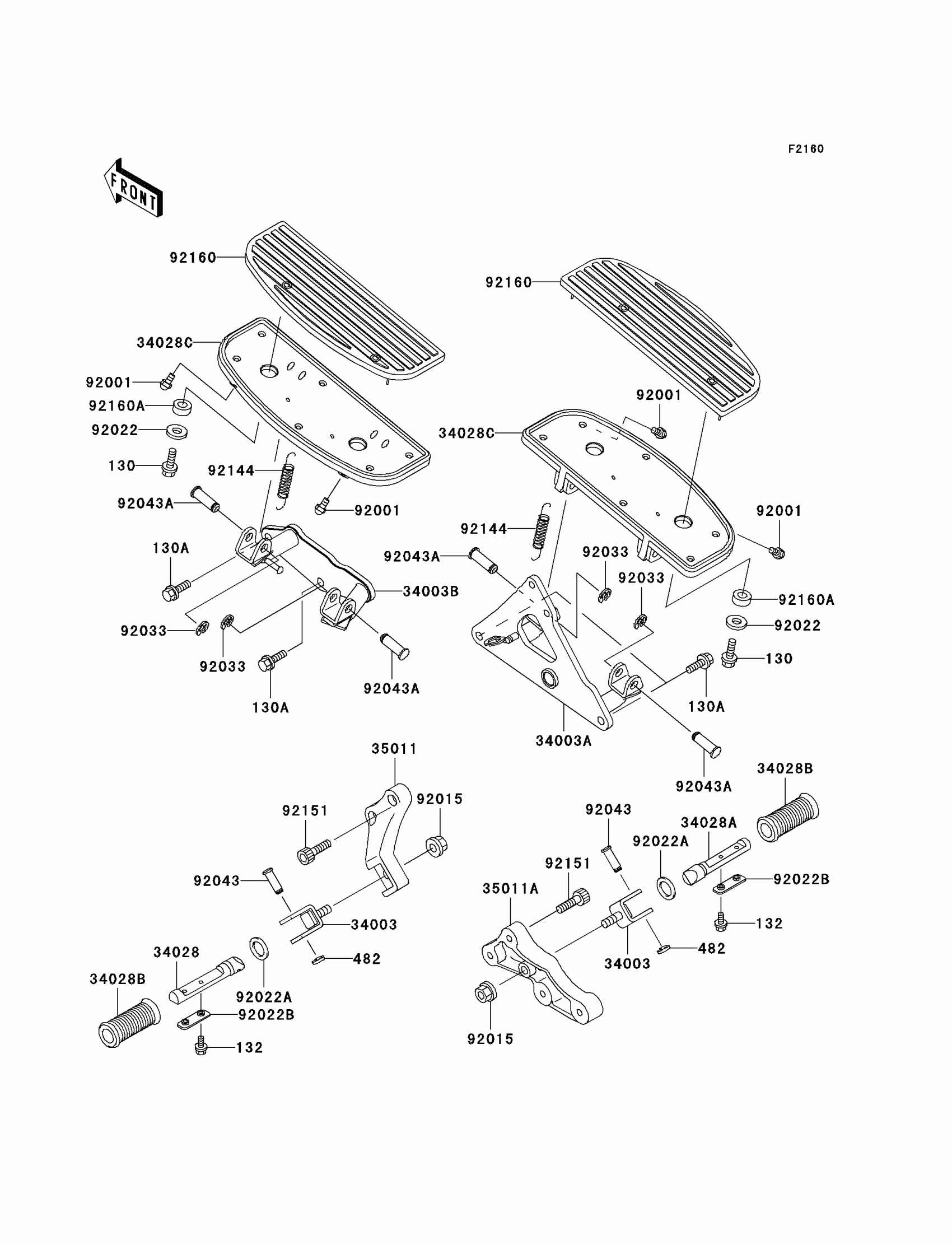

2000 Kawasaki Vulcan 1500 Drifter Footrests Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

130

BOLT-FLANGED,6X16,BLACK

130J0616

1
Out of stock

130A

BOLT-FLANGED,10X30

130J1030

1
Out of stock

132

BOLT-FLANGED-SMALL,5X10

132J0510

1
Out of stock

482

CIRCLIP-TYPE-E

482L7000

1

$3.12

In stock

34003

HOLDER-STEP,RR

34003-1292

1

$38.70

In stock

34003A

HOLDER-STEP,FR,RH

34003-1473

1

$166.32

In stock

34003B

HOLDER-STEP,FR,LH

34003-1501

1

$138.18

In stock

34028

STEP,RR,LH

34028-1219

1
Out of stock

34028A

STEP,RR,RH

34028-1220

1

$49.59

In stock

34028B

STEP,RR,RUBBER

34028-1221

1
Out of stock

34028C

STEP,FR

34028-1497

1

$153.75

In stock

35011

STAY,REAR STEP,LH

35011-1770

1

$84.78

In stock

35011A

STAY,REAR STEP,RH

35011-1974

1

$94.61

In stock

92001

BOLT,BANK SENSOR

92001-1905

1

$7.22

In stock

92015

NUT,FLANGED,10MM

92015-1428

1

$3.97

In stock

92022

1

$2.15

In stock

92022A

WASHER,20X30X2.3

92022-1568

1

$3.85

In stock

92022B

WASHER,STEP

92022-1874

1
Out of stock

92033

RING-SNAP,10MM

92033-1166

1

$3.10

In stock

92043

PIN,8X36.5

92043-1339

1

$7.71

In stock

92043A

PIN,12X37

92043-1358

1

$6.44

In stock

92144

SPRING

92144-1266

1

$6.98

In stock

92151

BOLT,SOCKET,8X25

92151-1525

1

$2.51

In stock

92160

DAMPER,FRONT STEP

92160-1727

1

$73.16

In stock

92160A

DAMPER

92160-1728

1

$3.58

In stock
