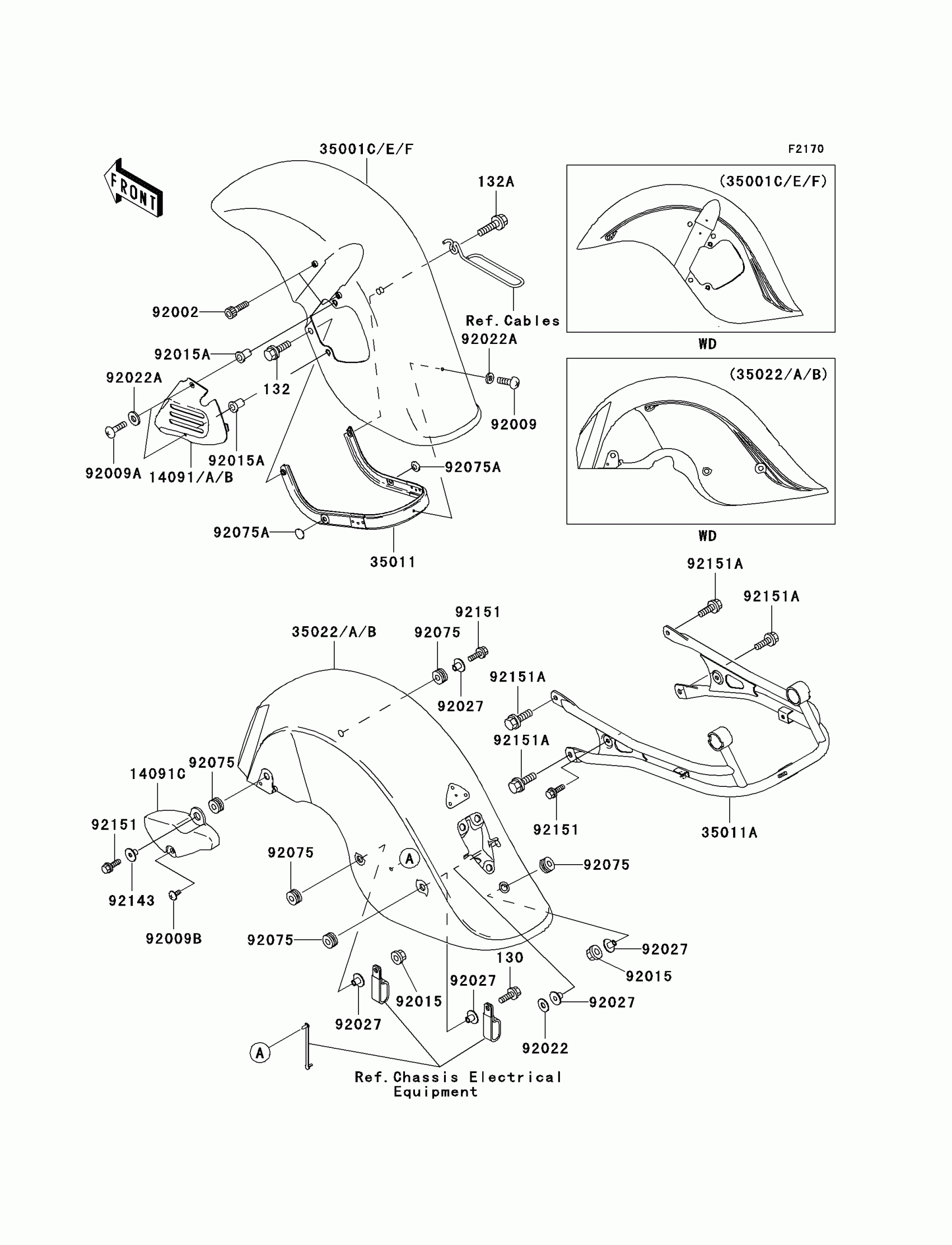

Kawasaki Vulcan 1500 Drifter Fenders Diagram

#

Description
Price

130

BOLT-FLANGED,6X22,BLACK

130J0622

Unavailable

132

BOLT-FLANGED-SMALL,8X20

132E0820

$3.72

132A

BOLT-FLANGED-SMALL,8X25

132E0825

$4.16

14091A

COVER,FRONT CALIPER,P.B.BEIGE

14091-1059-X8

Unavailable

14091B

COVER,FRONT CALIPER,D.T.GREEN

14091-1059-1M

Unavailable

14091C

COVER,COUPLER

14091-1071

$11.17

35001E

FENDER-ASSY-FRONT,P.B.BEIGE

35001-5049-X8

Unavailable

35001F

FENDER-ASSY-FRONT,D.T.GREEN

35001-5050-1M

Unavailable

35011

STAY,FRONT FENDER

35011-1962

$79.68

35011A

STAY,REAR FENDER

35011-1967

Unavailable

35022A

FENDER-COMP-REAR,P.B.BEIGE

35022-5067-X8

Unavailable

35022B

FENDER-COMP-REAR,D.T.GREEN

35022-5068-1M

Unavailable

92002

BOLT,SOCKET,8X30

92002-1179

$5.76

92009

SCREW,5X12

92009-1652

$3.16

92009A

SCREW,5X16,BLACK

92009-1654

$2.51

92009B

SCREW,6X12

92009-1877

$1.80

92015

NUT,FLANGED,6MM,BLACK

92015-1386

Unavailable

92015A

NUT,WELL,5MM

92015-1757

$5.81

92022

WASHER,6.5X16X1.0

92022-1093

$1.73

92022A

WASHER,NYLON,5.3X11.5X1.5

92022-1521

$3.12

92027

COLLAR,L=13.1,BLACK

92027-1450

$4.93

92075

DAMPER,10X24X12

92075-1690

$3.97

92075A

DAMPER,RUBBER

92075-261

$3.85

92143

COLLAR

92143-1960

$5.12

92151

BOLT,FLANGED,6X25

92151-1488

$2.97

92151A

BOLT,FLANGED,10X20

92151-1511

$3.58
