2000 Kawasaki Vulcan 1500 Drifter Frame Fittings Diagram

← All diagrams

Find the part on the Frame Fittings diagram for your 2000 Kawasaki Vulcan 1500 Drifter, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

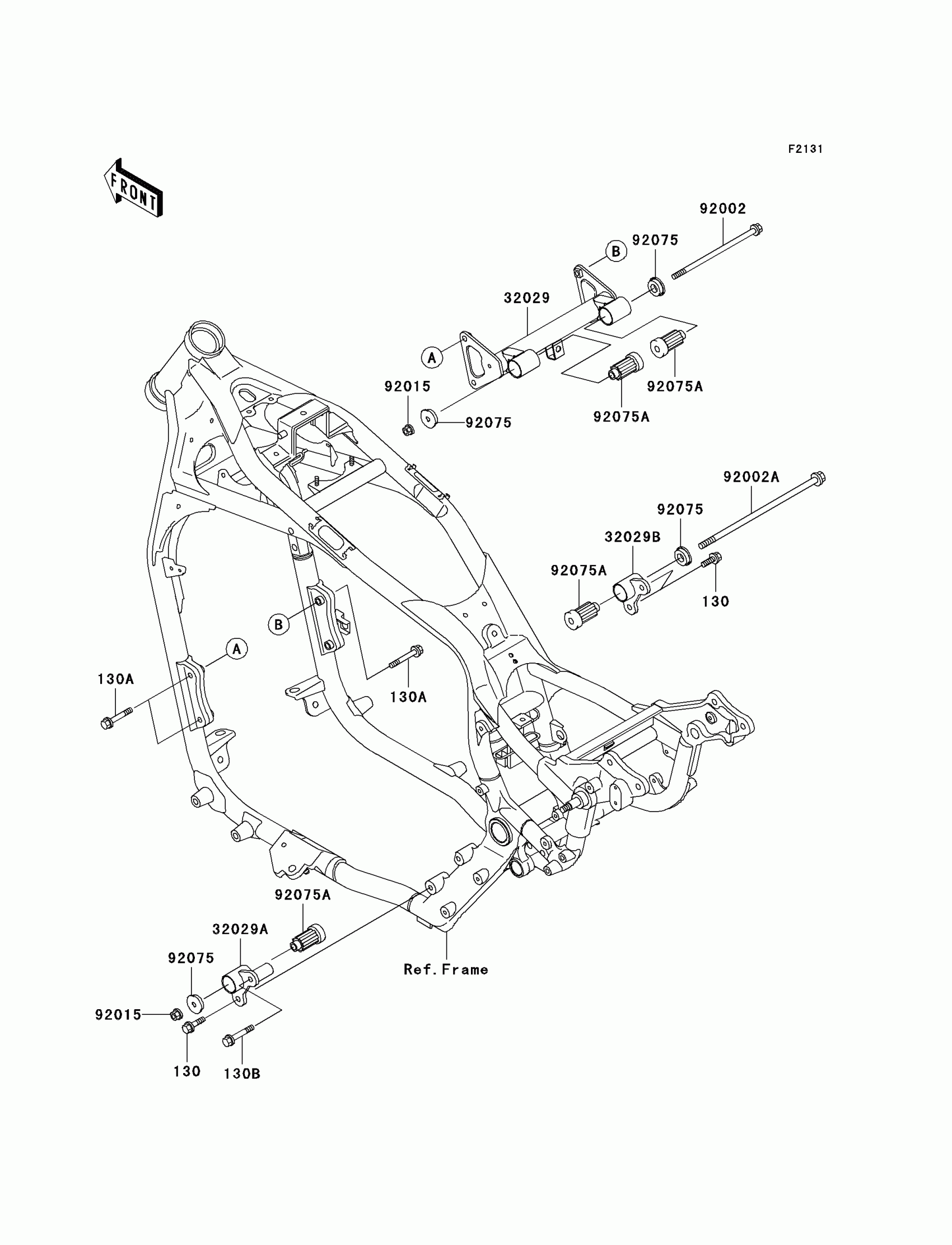

2000 Kawasaki Vulcan 1500 Drifter Frame Fittings Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

130

BOLT-FLANGED,8X25,BLACK

130J0825

1
Out of stock

130A

BOLT-FLANGED,8X40

130J0840

1
Out of stock

130B

BOLT-FLANGED,8X60

130J0860

1
Out of stock

32029

BRACKET-ENGINE,FR

32029-1985

1
Out of stock

32029A

BRACKET-ENGINE,RR,LH

32029-1986

1
Out of stock

32029B

BRACKET-ENGINE,RR,RH

32029-1987

1
Out of stock

92002

BOLT,FLANGED,10X285

92002-1206

1
Out of stock

92002A

BOLT,FLANGED,10X330

92002-1540

1
Out of stock

92015

NUT,FLANGED,10MM

92015-1180

1
Out of stock

92075

DAMPER,ENGINE MOUNT

92075-1738

1
Out of stock

92075A

DAMPER,ENGINE MOUNT,MAIN

92075-1739

1
Out of stock
