2005 Kawasaki Vulcan 1500 Drifter Fuel Pump Diagram

← All diagrams

Find the part on the Fuel Pump diagram for your 2005 Kawasaki Vulcan 1500 Drifter, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

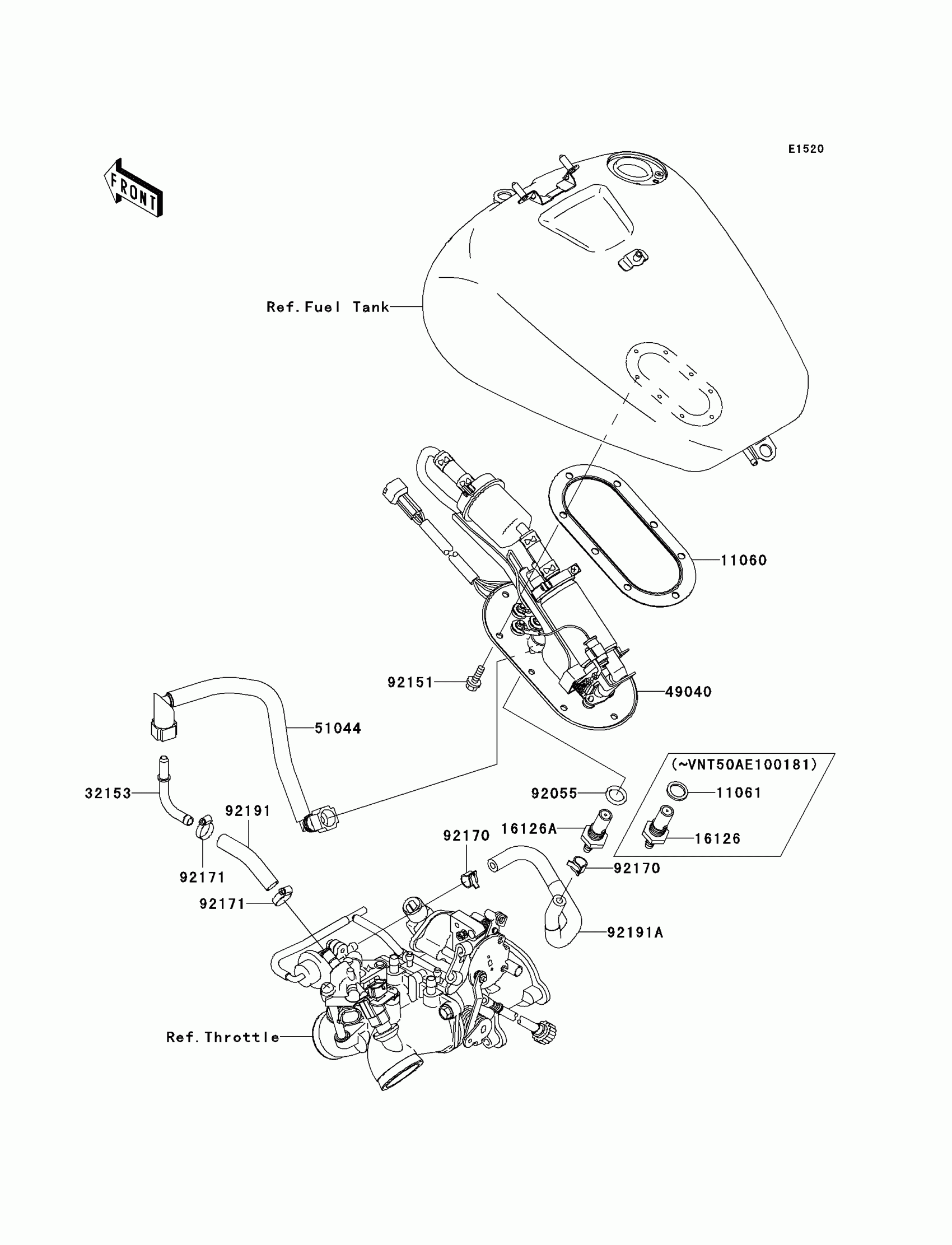

2005 Kawasaki Vulcan 1500 Drifter Fuel Pump Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11060

GASKET

11060-1929

1

$50.54

In stock

16126A

VALVE

16126-1418

1
Out of stock

32153

PIPE

32153-1414

1

$15.34

In stock

49040

PUMP-FUEL

49040-1071

1

$564.92

In stock

51044

TUBE-ASSY

51044-0010

1

$159.55

In stock

92055

RING-O,14.8X2.4

92055-1667

1

$4.32

In stock

92151

BOLT,5X12

92151-1599

1

$1.28

In stock

92170

CLAMP

92170-1492

1

$3.97

In stock

92171

CLAMP

92171-1274

1

$9.90

In stock

92191

TUBE

92191-1536

1
Out of stock

92191A

TUBE

92191-1557

1
Out of stock
