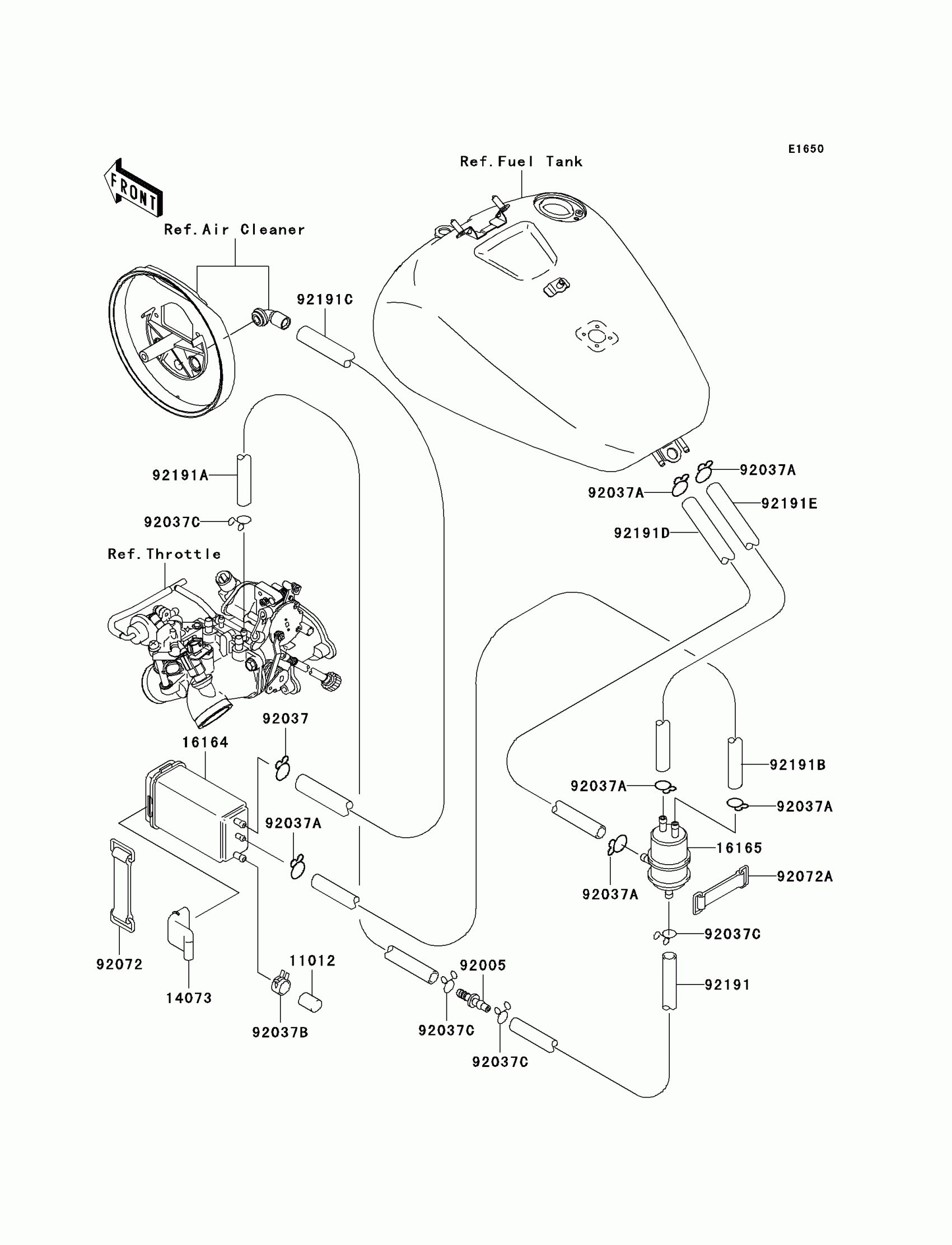

Find the part on the Fuel Evaporative System diagram for your 2005 Kawasaki Vulcan 1500 Drifter, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2005 Kawasaki Vulcan 1500 Drifter Fuel Evaporative System Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11012

CAP,CANISTER

11012-1388

1
Out of stock

14073

DUCT,CANISTER

14073-1219

1
Out of stock

16164

CANISTER

16164-1070

1
Out of stock

16165

SEPARATOR

16165-1001

1
Out of stock

92005

FITTING

92005-1206

1
Out of stock

92037

CLAMP-HOSE

92037-1104

1
Out of stock

92037A

CLAMP,TUBE

92037-147

1
Out of stock

92037B

CLAMP,CANISTER

92037-1512

1
Out of stock

92037C

CLAMP

92037-1712

1
Out of stock

92072

BAND,L=150

92072-1188

1
Out of stock

92072A

BAND,L=50

92072-1419

1
Out of stock

92191

TUBE,THROTTLE-SEPARATOR,WHITE

92191-1375

1
Out of stock

92191A

TUBE,4X9X180,WHITE

92191-1414

1
Out of stock

92191B

TUBE,SEPARATOR-CANISTER,BLUE

92191-1462

1
Out of stock

92191C

TUBE,CANISTER-CLEANER,GREEN

92191-1530

1
Out of stock

92191D

TUBE,TANK-SEPARATOR,RED

92191-1695

1
Out of stock

92191E

TUBE,TANK-SEPARATOR,BLUE

92191-1696

1
Out of stock
