2001 Yamaha VT500XLF 8DX3 Meter Diagram

← All diagrams

Find the part on the Meter diagram for your 2001 Yamaha VT500XLF 8DX3, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

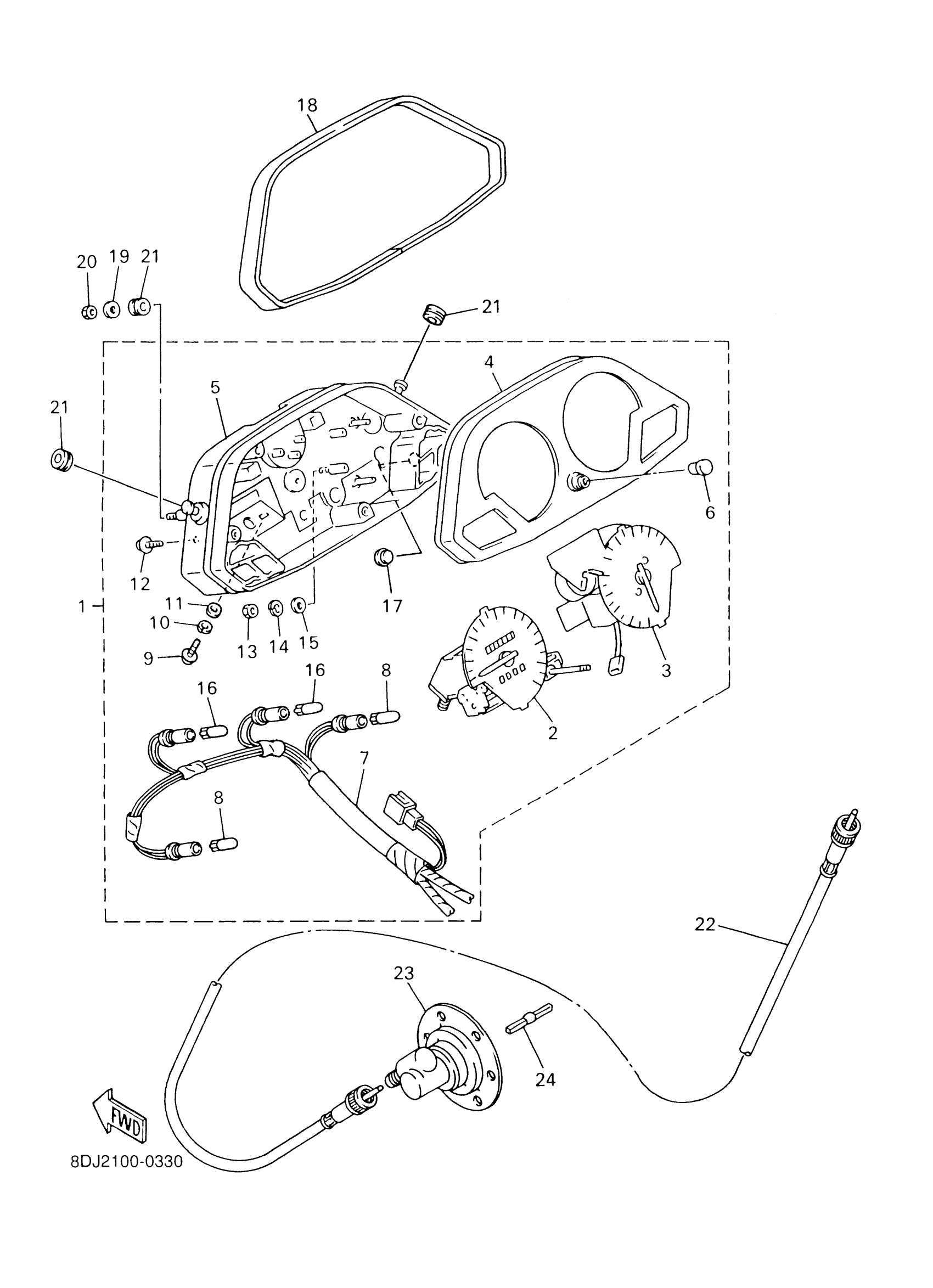

2001 Yamaha VT500XLF 8DX3 Meter Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SPEEDOMETER ASSY (MILE/H)

8DX-83500-40-00

1
Out of stock

2

SPEEDOMETER ASSY

8CR-83580-40-00

1
Out of stock

3

TACHOMETER ASSY

8CR-83540-40-00

—

$295.83

In stock

4

COVER, METER

8DX-83559-40-00

—

$122.77

In stock

5

. CASE, UNDER

8DJ-8353H-40-00

1
Out of stock

6

KNOB, TRIP METER

29L-83578-00-00

—

$24.29

In stock

7

SOCKET CORD ASSY

8DJ-83509-40-00

—

$65.77

In stock

8

BULB, MTR.12V3.4W

4G1-84744-00-XX

1
Out of stock

9

SCREW, PAN HEAD

98517-04012-00

1

$3.28

In stock

10

WASHER(6TA)

92907-04100-00

1

$5.98

In stock

11

WASHER(JF2)

92907-04600-00

1

$1.23

In stock

12

SCREW, TRUSS TAP.

97707-40014-00

—

$6.00

In stock

13

NUT(6TA)

95307-04600-00

1

$6.69

In stock

14

WASHER(6TA)

92907-04100-00

1

$5.98

In stock

15

WASHER(JF2)

92907-04600-00

1

$1.23

In stock

16

BULB (12V-1.7W)

3GM-83517-00-00

—
Out of stock

17

. PLUG, BLIND

4BE-8352K-00-00

1
Out of stock

18

TRIM 5

8CR-77225-00-00

1
Out of stock

19

WASHER, PLATE

90201-06380-00

—

$0.57

In stock

20

NUT(6TA)

95317-06600-00

—

$2.69

In stock

21

DAMPER

5J0-83513-00-00

—
Out of stock

22

SPEEDOMETER CABLE ASSY

8CR-83550-10-00

—

$72.28

In stock

23

METER GEAR HOUSING COMP.

8DP-47700-00-00

1
Out of stock

24

JOINT

8K4-47715-00-00

—

$4.60

In stock
