2001 Yamaha VT500XLF 8DX3 Handle Switch. Lever Diagram

← All diagrams

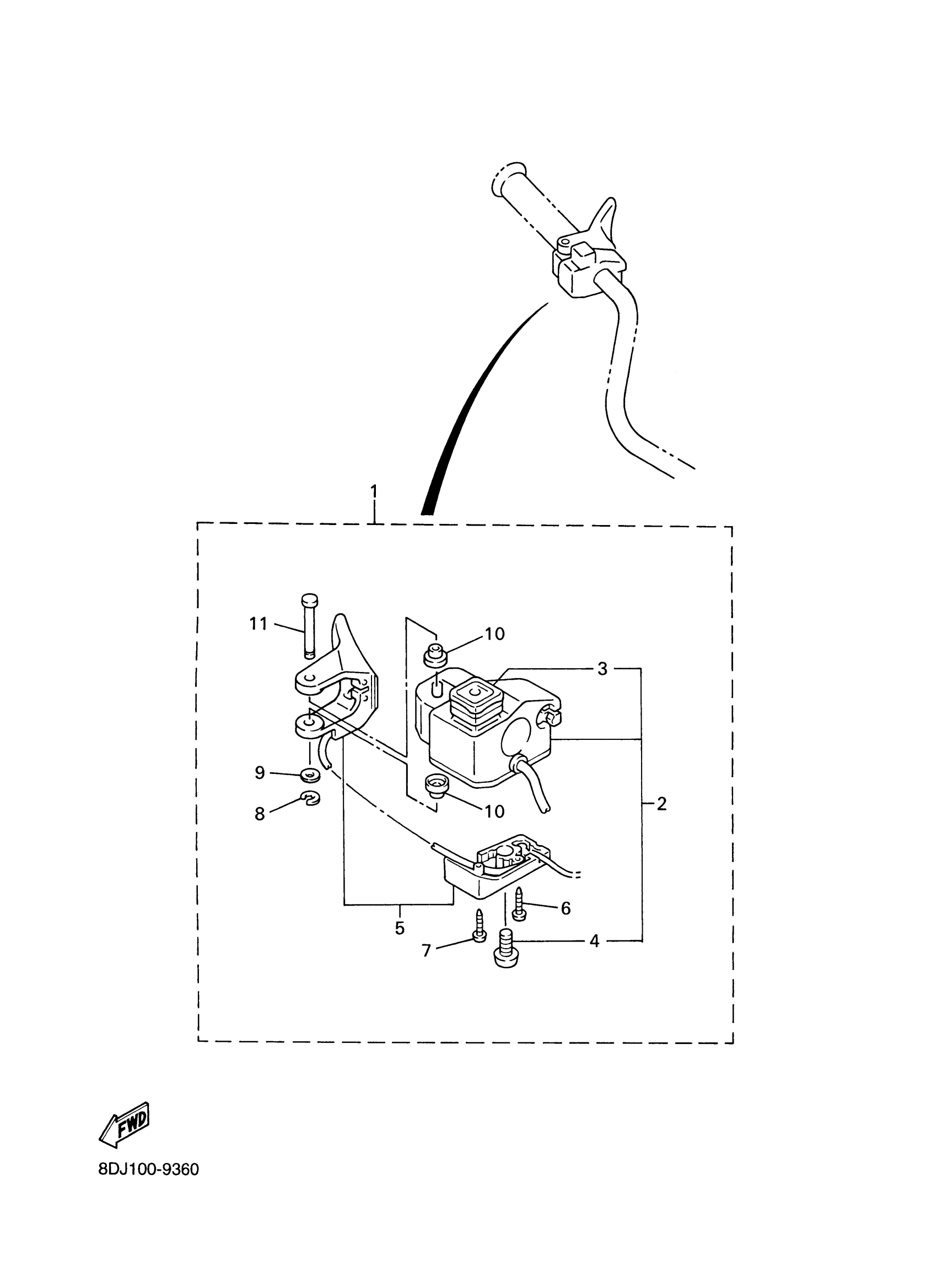

Find the part on the Handle Switch. Lever diagram for your 2001 Yamaha VT500XLF 8DX3, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2001 Yamaha VT500XLF 8DX3 Handle Switch. Lever Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

LEVER HOLDER ASSY (RIGHT)

8BK-82720-00-00

1
Out of stock

2

SWITCH, HANDLE 3 (RIGHT)

8AU-83963-00-00

1
Out of stock

3

ENGINE STOP SWITCH ASSY

8AU-82575-09-00

1
Out of stock

4

SCREW, ADJUSTING

8R6-83928-00-00

1
Out of stock

5

. THUMB WARMER ASSY

8BK-82970-00-00

1
Out of stock

6

SCREW, TAPPING(88J)

97706-30620-00

1
Out of stock

7

SCREW, PAN TAP.2 SLIT

97707-30630-00

—
Out of stock

8

CIRCLIP (EU0)

99080-04600-00

1
Out of stock

9

WASHER, SPECIAL

85G-83663-00-00

1
Out of stock

10

CAP 1

85G-83956-00-00

1
Out of stock

11

SHAFT

88T-8399F-00-00

—
Out of stock
