2001 Yamaha VT500XLF 8DX3 Electrical 1 Diagram

← All diagrams

Find the part on the Electrical 1 diagram for your 2001 Yamaha VT500XLF 8DX3, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

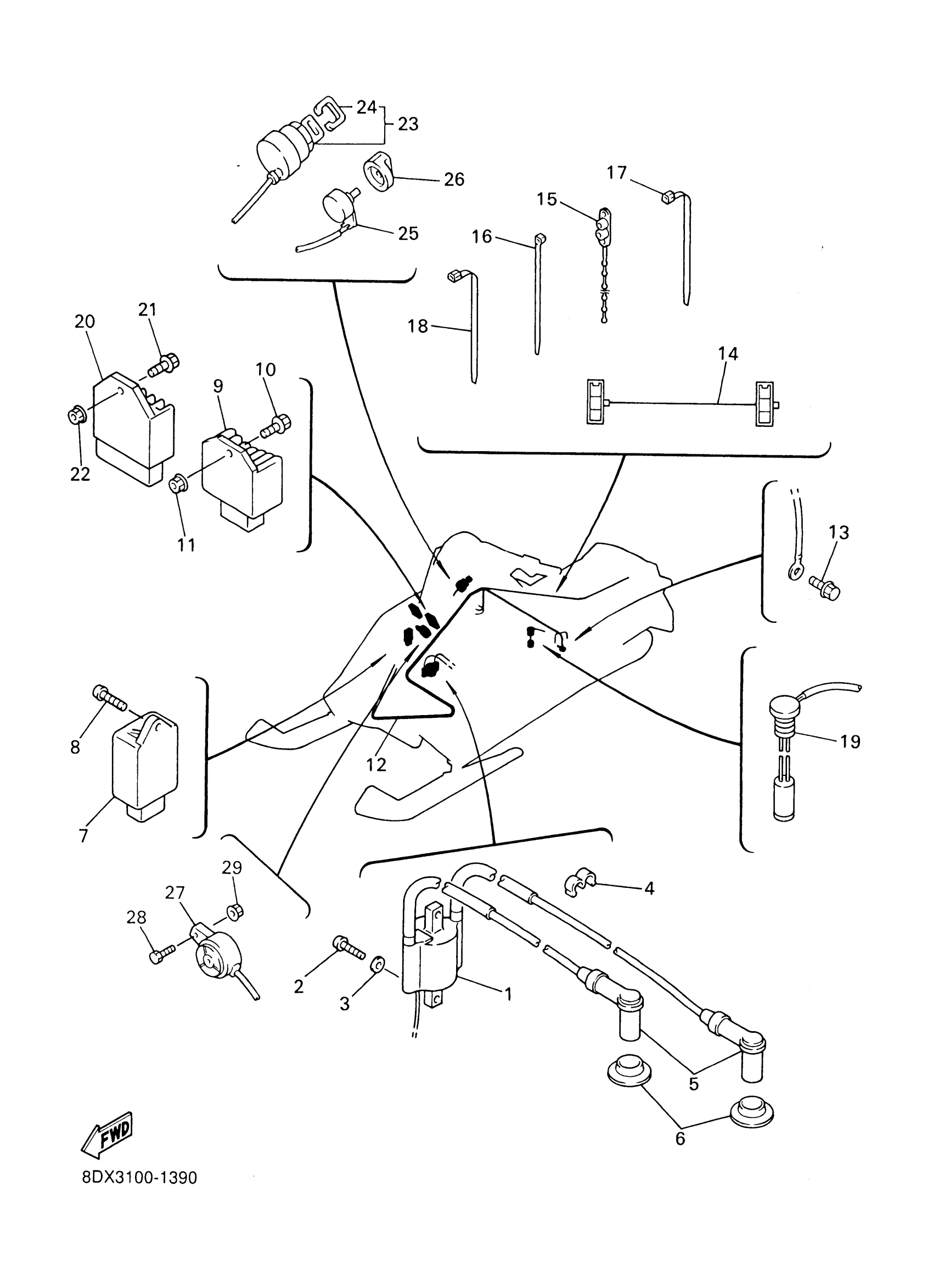

2001 Yamaha VT500XLF 8DX3 Electrical 1 Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

IGNITION COIL ASSY

8DJ-82310-09-00

1

$104.38

In stock

2

SCREW PAN HEAD

98580-06020-00

1

$5.10

In stock

3

WASHER, PLAIN (646)

92990-06600-00

1

$2.48

In stock

4

CLAMP(6M7)

90464-09M31-00

1

$6.23

In stock

5

PLUG CAP ASSY

85G-82370-20-00

1

$28.09

In stock

6

SEAL, PLUG CAP

8V0-82372-00-00

1

$3.86

In stock

7

C.D.I. UNIT ASSY

8DJ-85540-00-00

—
Out of stock

8

SCREW, TAPPING(65J)

97780-60625-00

1

$2.75

In stock

9

RECTIFIER & REGULATOR ASSY

8DX-81960-00-00

1
Out of stock

10

BOLT, FLANGE

95817-06016-00

1

$1.49

In stock

11

NUT, FLANGE(4MV)

95707-06500-00

1

$0.78

In stock

12

WIRE HARNESS ASSY

8DX-82590-00-00

—
Out of stock

13

BOLT, FLANGE

95817-06010-00

1

$3.91

In stock

14

WIRE, LEAD

8CR-8471G-00-00

1
Out of stock

15

CLAMP

90464-20031-00

1

$2.62

In stock

16

CLAMP(4FM)

90464-15195-00

—

$2.77

In stock

17

CLAMP(4FM)

90464-15195-00

—

$2.77

In stock

18

CLAMP

90464-13077-00

—

$6.68

In stock

19

OIL LEVEL GAUGE ASSY

8CR-85720-02-00

1

$44.61

In stock

20

VOLTAGE REGULATOR ASSY

8AB-81910-00-00

1
Out of stock

21

BOLT, FLANGE

95817-06016-00

1

$1.49

In stock

22

NUT, FLANGE(4MV)

95707-06500-00

1

$0.78

In stock

23

MAIN SWITCH ASSY

8AB-82510-01-00

—
Out of stock

24

CAP, KEY

526-82579-00-00

—

$6.72

In stock

25

RESISTOR, VARIABLE

8CR-87283-00-00

1
Out of stock

26

KNOB, VARIABLE RESISTOR

8AB-87284-00-00

1
Out of stock

27

BUZZER

8CW-83383-00-00

—

$141.28

In stock

28

BOLT(3JK)

97027-05020-00

—

$2.48

In stock

29

NUT, FLANGE(3GM)

95707-05500-00

—

$6.18

In stock
