2001 Yamaha VT500XLF 8DX3 Electrical 2 Diagram

← All diagrams

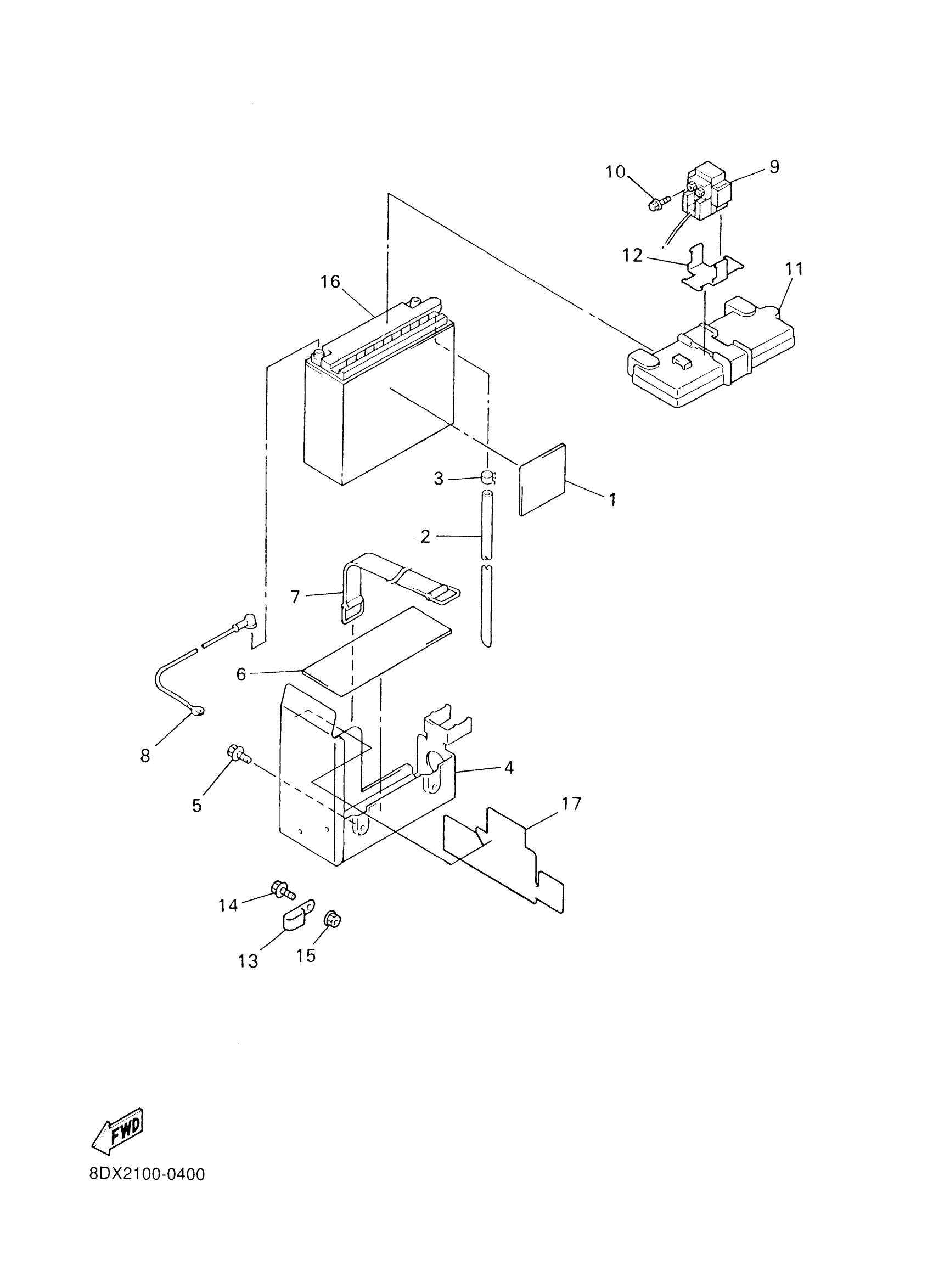

Find the part on the Electrical 2 diagram for your 2001 Yamaha VT500XLF 8DX3, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2001 Yamaha VT500XLF 8DX3 Electrical 2 Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

DAMPER

8CW-82176-00-00

—

$6.14

In stock

2

PIPE (L320)

8CW-8235W-01-00

1
Out of stock

3

CLIP(41W)

90467-08092-00

1

$6.86

In stock

4

BRACKET, BATTERY

8DX-2199G-00-00

1
Out of stock

5

BOLT, FLANGE

95817-06014-00

—

$2.15

In stock

6

SEAT, BATTERY

84N-82122-00-00

1

$4.38

In stock

7

BAND, BATTERY

8CY-82131-00-00

1

$10.26

In stock

8

WIRE, PLUS LEAD

8DY-82115-00-00

—

$21.60

In stock

9

1

$28.11

In stock

10

BOLT, SMALL FLANGE

95027-06008-00

1

$5.60

In stock

11

COVER, BATTERY

8DX-82129-01-00

1
Out of stock

12

. HOLDER, RELAY

8CY-81952-00-00

1
Out of stock

13

CLAMP(83R)

90461-08113-00

—

$10.48

In stock

14

BOLT, FLANGE

95817-06014-00

—

$2.15

In stock

15

NUT,SELF-LOCKING

95607-06200-00

1

$10.25

In stock

16

YB16ALA2 YUASA BATTERY

YB1-6ALA2-00-00

1
Out of stock

17

SHIELD, HEAT

8DX-2199H-00-00

1
Out of stock
