1993 Suzuki VS800GL Starting Motor Diagram

← All diagrams

Find the part on the Starting Motor diagram for your 1993 Suzuki VS800GL, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

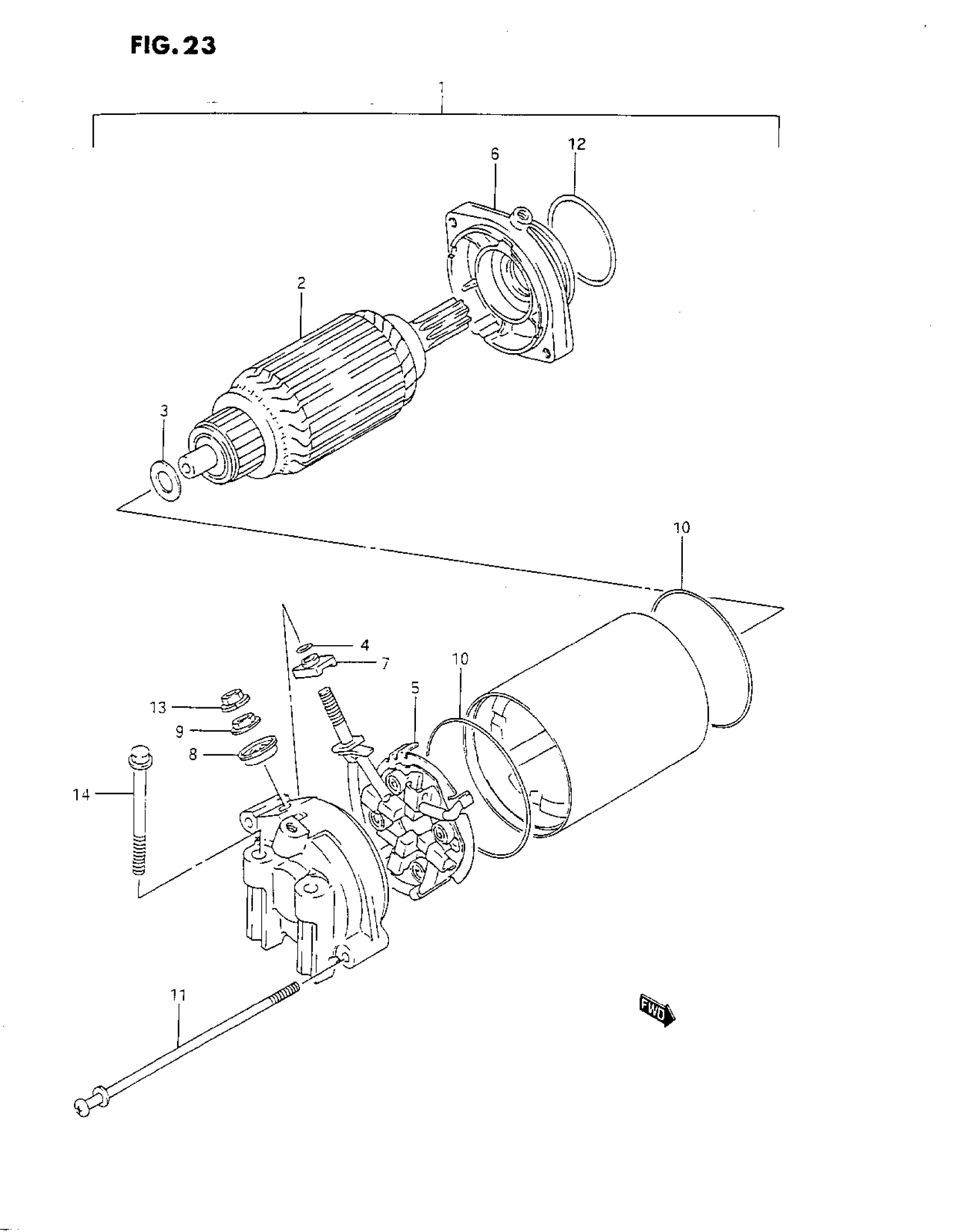

1993 Suzuki VS800GL Starting Motor Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

MOTOR ASSY,STARTING This part replaces 31100-45C00.

31100-45C02

1
Out of stock

2

ARMATURE

31310-45C00

1
Out of stock

3

.SHIM SET This part replaces 31361-47010.

31170-43400

1
Out of stock

4

O-RING

31143-38300

1
Out of stock

5

BRUSH HOLDER SET

31132-45C00

1
Out of stock

6

BRACKET SET

31150-38A00

1
Out of stock

7

BUSHING

31172-38300

1
Out of stock

8

BUSHING

31173-88C00

1
Out of stock

9

.NUT | MODEL N This part replaces 08310-32068.

08310-00067

1
Out of stock

9

.NUT | MODEL P/R This part replaces 08310-22067.

08310-00067

1
Out of stock

10

O-RING

31264-44110

2
Out of stock

11

BOLT | MODEL N/P This part replaces 31281-38A00.

31281-31D00

2
Out of stock

11

SCREW | MODEL R

31281-31D00

2
Out of stock

12

O-RING

31156-38A00

1
Out of stock

13

NUT This part replaces 08361-35066.

08361-3506A

1
Out of stock

14

BOLT

01547-06607

2
Out of stock
