1991 Suzuki VS750GLPM Water Pump Diagram

← All diagrams

Find the part on the Water Pump diagram for your 1991 Suzuki VS750GLPM, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

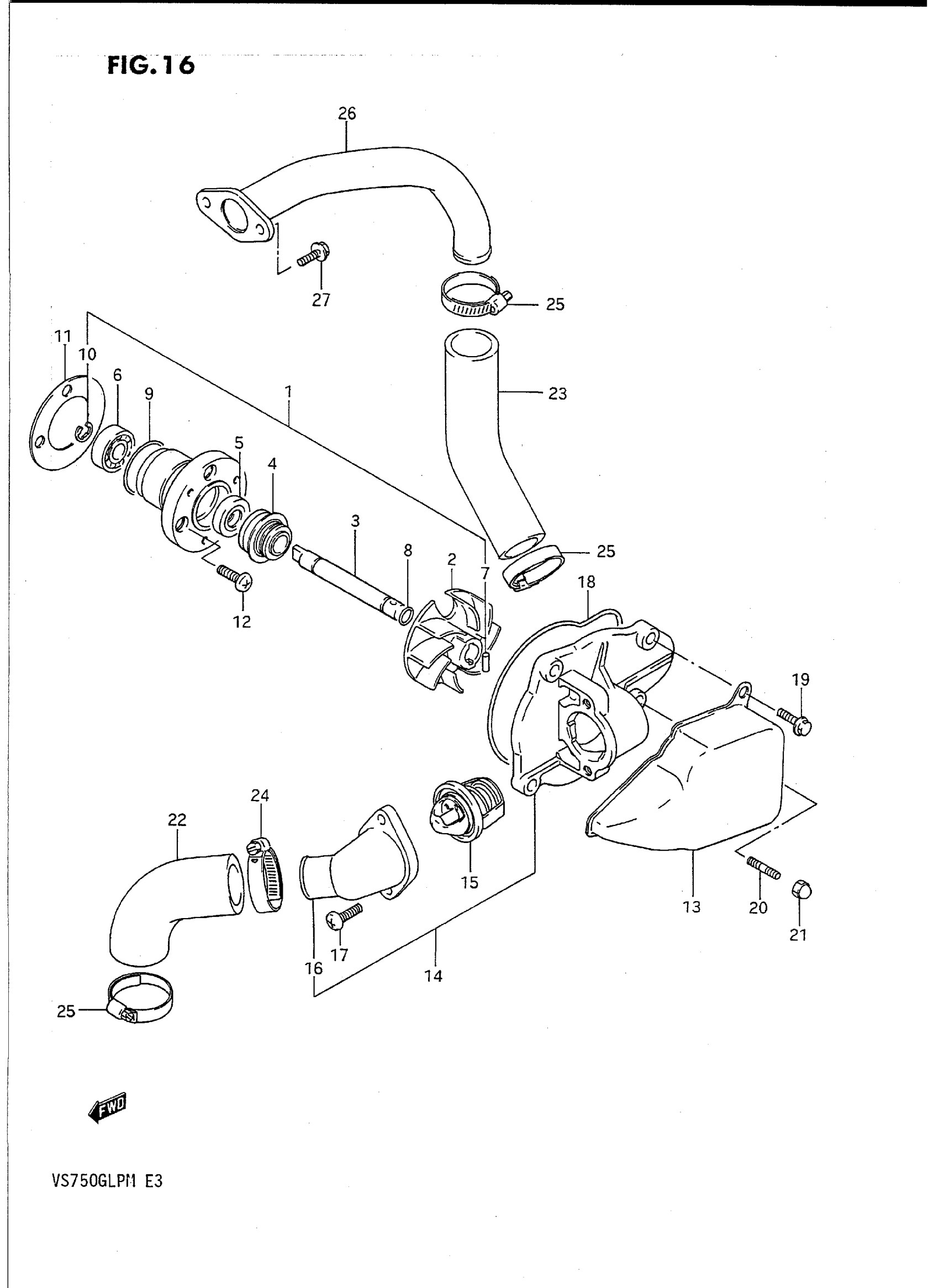

1991 Suzuki VS750GLPM Water Pump Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

PUMP ASSY,WATER | Includes Item(s) 2 - 10 This part replaces 17400-38A02.

17400-38A11

1
Out of stock

2

IMPELLER

17491-38A00

1
Out of stock

3

SHAFT

17511-38A00

1
Out of stock

4

.SEAL,MECHANICAL This part replaces 17470-46A00.

17470-02F11

1
Out of stock

5

.SEAL OIL (10X21X5) This part replaces 17461-38A00.

09283-10004

1
Out of stock

6

BEARING (10X26X8) This part replaces 17451-38A00.

09262-10014

1
Out of stock

7

PIN

17516-38A00

1
Out of stock

8

O RING

17515-38A00

1
Out of stock

9

.O RING This part replaces 17417-38A00.

17417-38A01

1
Out of stock

10

.E-RING This part replaces 08332-11086.

08332-1108A

1
Out of stock

11

GASKET, WATER PUMP | MODEL J/K/L This part replaces 17431-38A00.

17431-38A10

1
Out of stock

11

GASKET, WATER PUMP | MODEL M

17431-38A10

1
Out of stock

12

SCREW This part replaces 02112-06126.

02112-0612A

3
Out of stock

13

COVER, WATER PUMP

17441-38A02

1
Out of stock

14

CASE ASSY,WATER | Includes Item(s) 15 - 17 This part replaces 17410-38A00.

17410-38A01

1
Out of stock

15

THERMOSTAT,WATE This part replaces 17670-33410.

17670-33411

1
Out of stock

16

CONNECTOR | MODEL J/K/L This part replaces 17412-38A00.

17412-45C00

1
Out of stock

16

CONNECTOR | MODEL M

17412-45C00

1
Out of stock

17

SCREW

02112-06167

2
Out of stock

18

O RING

17435-38A00

1
Out of stock

19

BOLT

01547-06207

3
Out of stock

20

STUD BOLT (6X20)

09108-06046

1
Out of stock

21

NUT, LICENSE HOLDER This part replaces 08313-11067.

08313-10067

1
Out of stock

22

HOSE, WATER PUMP IN

17857-38A02

1
Out of stock

23

HOSE, WATER PUMP OUT This part replaces 17858-38A01.

17858-38820

1
Out of stock

24

CLAMP This part replaces 09402-30501.

09402-32511

1
Out of stock

25

CLAMP This part replaces 09402-30502.

09402-32511

3
Out of stock

26

PIPE, CYLINDER IN

17890-38A00

1
Out of stock

27

BOLT

01547-06167

2
Out of stock
