1991 Suzuki VS750GLPM CAM Chain Diagram

← All diagrams

Find the part on the CAM Chain diagram for your 1991 Suzuki VS750GLPM, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

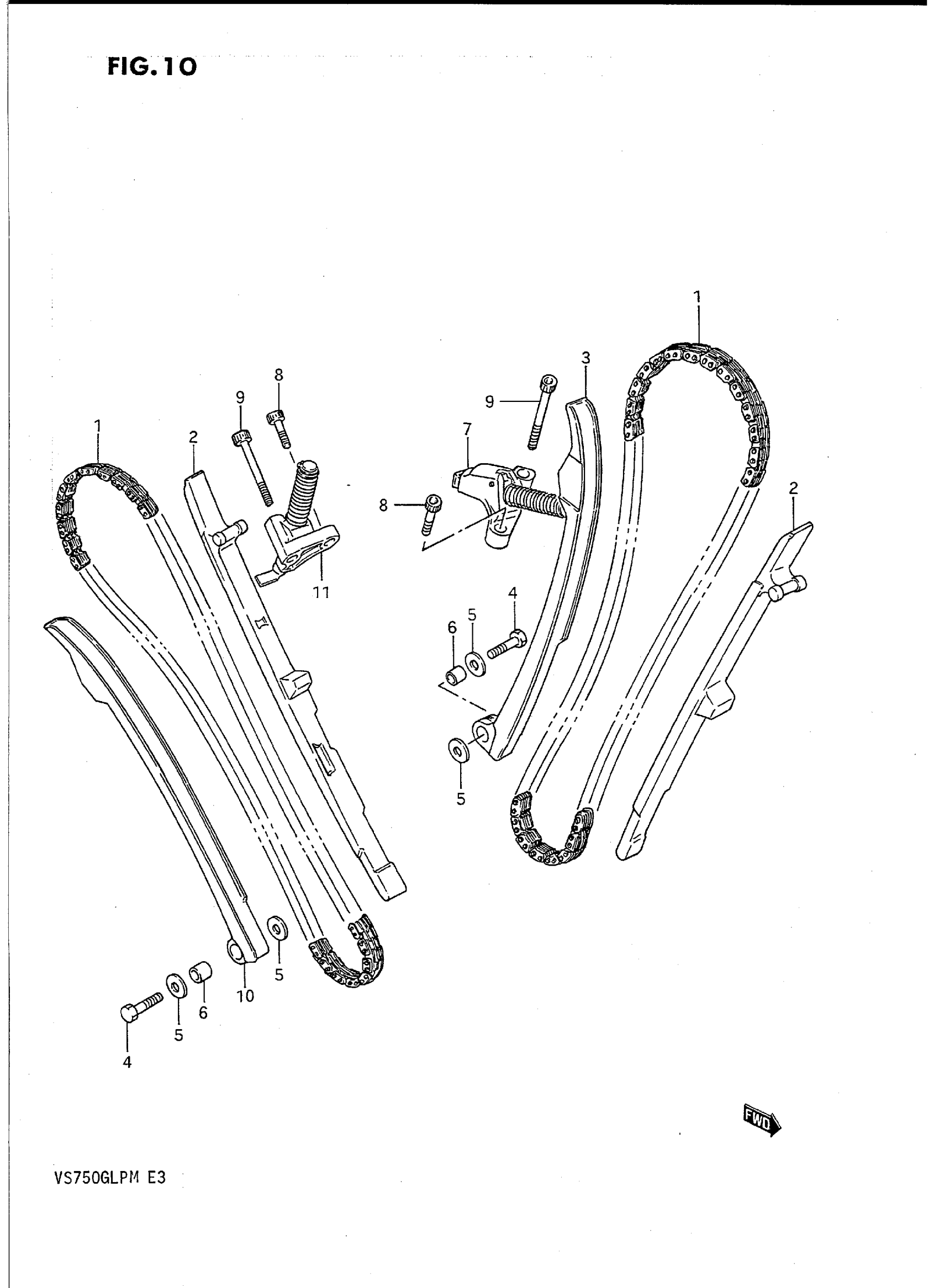

1991 Suzuki VS750GLPM CAM Chain Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CHAIN, CAM SHAFT DRIVE | MODEL J This part replaces 12760-38A00.

12760-38A11

2
Out of stock

1

CHAIN, CAM SHAFT DRIVE | MODEL K/L/M This part replaces 12760-38A10.

12760-38A11

2
Out of stock

2

GUIDE, CAM CHAIN

12771-38A02

2
Out of stock

3

TENSIONER, CAM CHAIN FRONT

12811-38A01

1
Out of stock

4

BOLT

09100-06129

2
Out of stock

5

WASHER

08211-06182

4

$2.08

In stock

6

SPACER

09180-06148

2
Out of stock

7

ADJUSTER ASSY, TENSIONER FRONT This part replaces 12831-38A00.

12831-38A01

1
Out of stock

8

BOLT, FRONT BRG HOUSING This part replaces 07110-06205.

07130-0620B

2
Out of stock

9

BOLT This part replaces 07110-06455.

07130-0645B

2
Out of stock

10

TENSIONER, CAM CHAIN REAR

12816-38A01

1
Out of stock

11

ADJUSTER ASSY, TENSIONER REAR This part replaces 12832-38A00.

12832-38A01

1
Out of stock
