1991 Suzuki VS750GLPM Crankcase Cover Diagram

← All diagrams

Find the part on the Crankcase Cover diagram for your 1991 Suzuki VS750GLPM, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

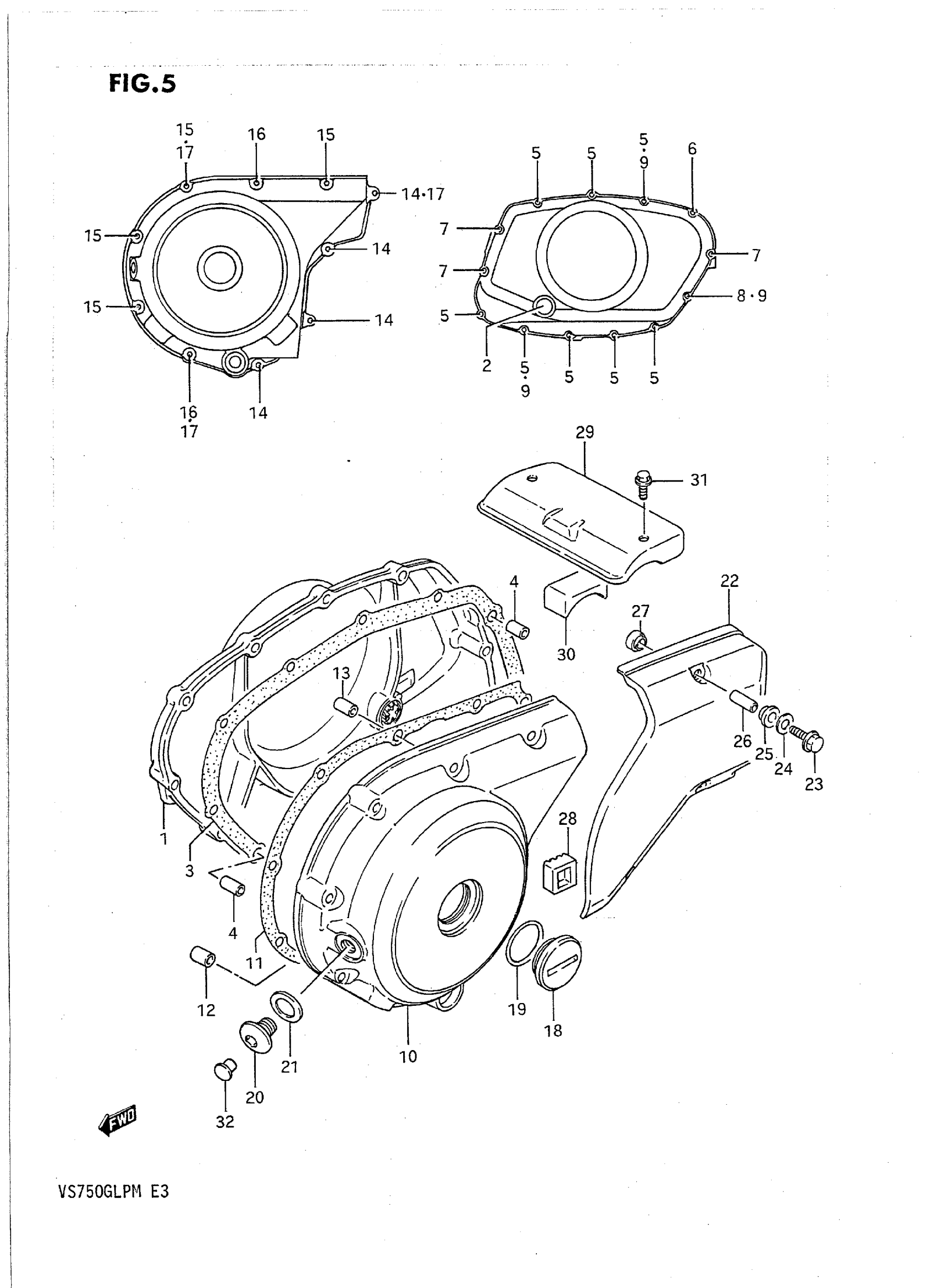

1991 Suzuki VS750GLPM Crankcase Cover Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

1

$413.45

In stock

2

LENS, OIL LEVEL

11971-33210

1

$18.15

In stock

4

PIN

04211-09189

2
Out of stock

5

BOLT

01547-06307

8

$2.22

In stock

6

BOLT

01547-06357

1
Out of stock

7

BOLT

01547-06457

3
Out of stock

8

BOLT

01547-06607

1

$3.47

In stock

9

GASKET

09168-06023

3
Out of stock

10

COVER, GENERATOR This part replaces 11351-38A01.

11351-38A02

1
Out of stock

12

1

$6.85

In stock

13

PIN

04211-09189

1
Out of stock

14

BOLT

01547-06307

4

$2.22

In stock

15

BOLT

01547-06407

4
Out of stock

16

BOLT

01547-06507

2
Out of stock

17

GASKET

09168-06023

3
Out of stock

18

PLUG, ACCESS

09259-36008

1

$11.37

In stock

19

.O-RING (D:3.1,ID:32.7)

09280-33004

1
Out of stock

20

PLUG, SHAFT This part replaces 09248-14005.

09248-14011

1
Out of stock

21

GASKET

09168-14004

1

$1.96

In stock

22

COVER, SECONDARY DRIVE

11361-38A50

1
Out of stock

23

BOLT

01547-06457

3
Out of stock

24

WASHER This part replaces 09160-06097.

09160-06125

3
Out of stock

25

CUSHION, OUTER

09161-09006

3

$2.56

In stock

27

CUSHION, INNER

09161-09005

3

$2.52

In stock

28

DAMPER, SECONDARY COVER

11369-38A00

1
Out of stock

29

COVER, STARTER MOTOR This part replaces 31210-38A00.

31210-38A01

1
Out of stock

30

DAMPER

31212-38A00

1
Out of stock

31

BOLT

01547-05087

2

$1.87

In stock

32

CAP

09250-08014

1

$2.92

In stock
