2003 Suzuki VS1400GLP Fuel Tank Diagram

← All diagrams

Find the part on the Fuel Tank diagram for your 2003 Suzuki VS1400GLP, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

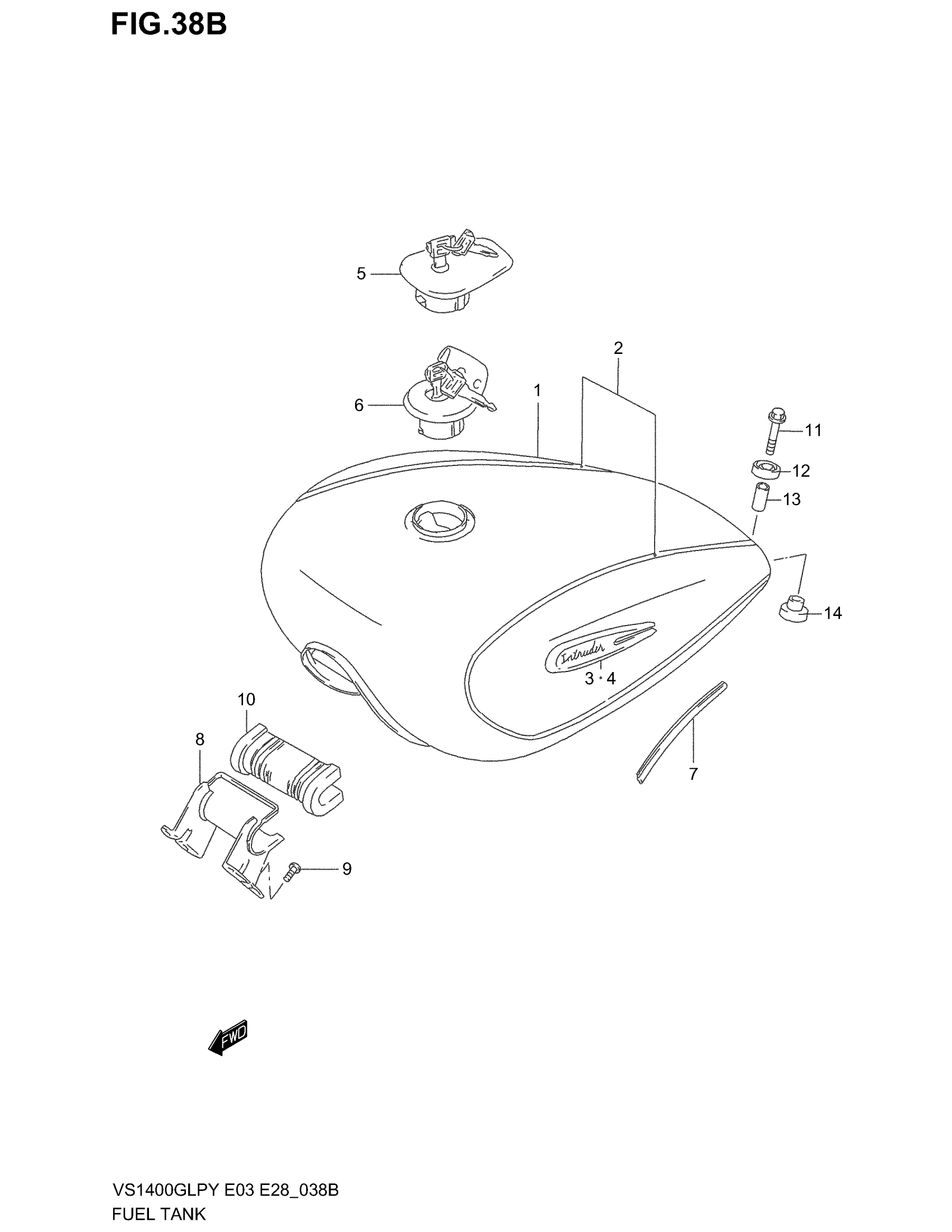

2003 Suzuki VS1400GLP Fuel Tank Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

NO DESCRIPTION AVAILABLE This part replaces 49100-38B00-E88.

49100-38B10-E88

1
Out of stock

1

NO DESCRIPTION AVAILABLE This part replaces 49100-38B00-G2P.

49100-38B10-G2P

1
Out of stock

1

NO DESCRIPTION AVAILABLE | E33 This part replaces 49100-38B20-E88.

44110-38B13-YD8

1
Out of stock

1

NO DESCRIPTION AVAILABLE | E33; Includes Item(s) 2 - 4 This part replaces 49100-38B20-G2P.

44110-38B13-YD8

1
Out of stock

2

TAPE SET, FUEL TANK | FOR E88

68110-38B60-L3U

1
Out of stock

2

TAPE SET, FUEL TANK | FOR G2P

68110-38B60-J5S

1
Out of stock

3

EMBLEM, RH

68111-38B00

1
Out of stock

4

EMBLEM, LH

68121-38B00

1
Out of stock

5

CAP SET, FUEL TANK

44200-38820

1

$121.12

In stock

5

CAP SET, FUEL TANK | OPT E3,E28

44200-38860

1
Out of stock

5

CAP SET, FUEL TANK | OPT E3,E28

44200-38870

1
Out of stock

7

MOLDING

68241-04X50-00B

1

$28.00

In stock

8

BRACKET, FRONT (BLACK) This part replaces 44250-38B00-13Z.

44250-38B00-019

1
Out of stock

9

4

$2.31

In stock

10

CUSHION, FRONT

44511-38B01

1

$12.85

In stock

11

BOLT This part replaces 01550-06353.

01550-0635A

2
Out of stock

12

CUSHION

09320-14013

2

$2.54

In stock

13

SPACER

09180-06274

2

$3.67

In stock

14

CUSHION (9X24X18) This part replaces 09320-10020.

09320-10071

2
Out of stock
