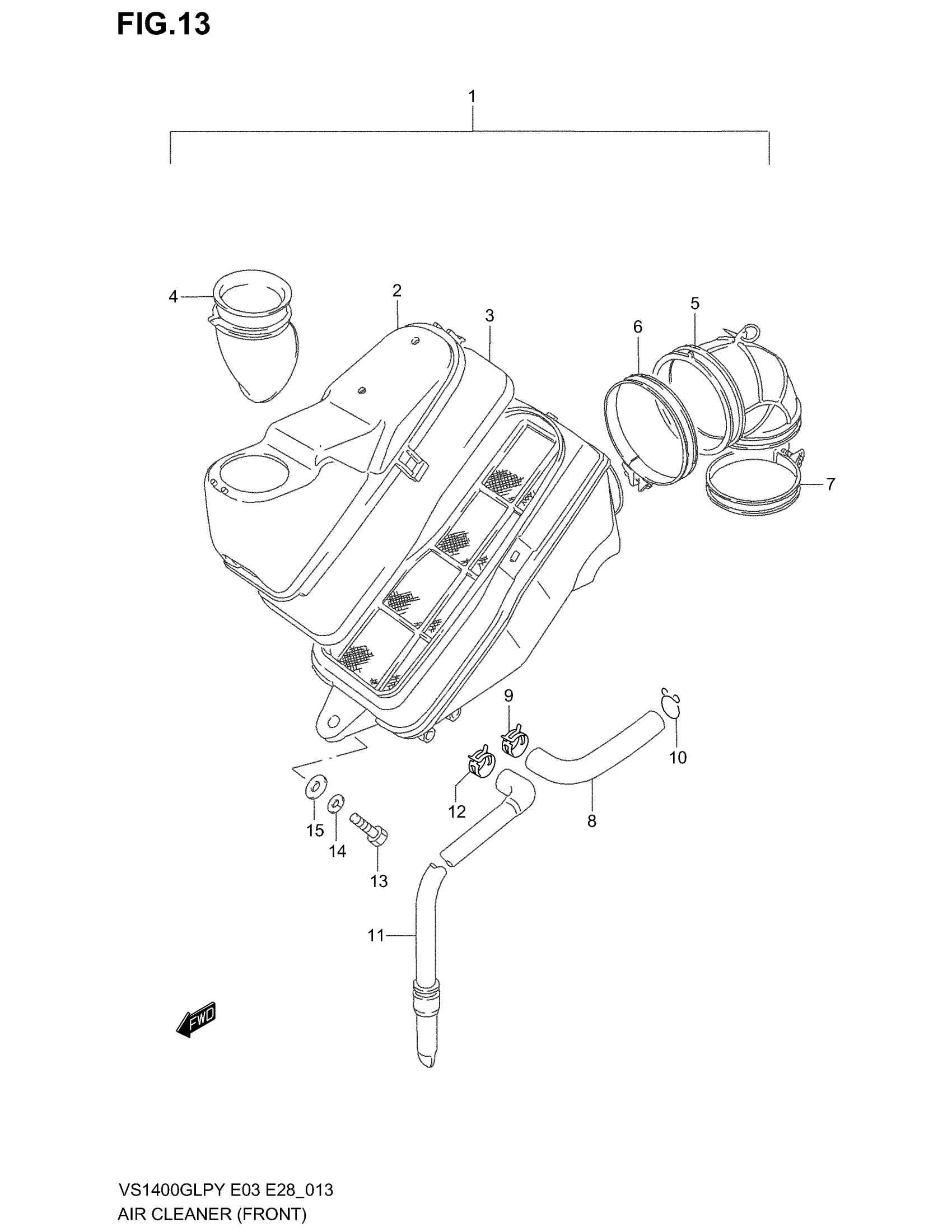

Suzuki VS1400GLP (2003) AIR CLEANER (FRONT) Diagram

#

Description
Price

1

CLEANER ASSY,AI | Includes Item(s) 2 - 12 This part replaces 13700-38B20.

13700-38B21

$232.28

2

CAP

13740-38B01

$46.98

3

FILTER

13781-38B10

$11.84

4

TUBE,INLET This part replaces 13891-38B00.

13891-38B01

$19.00

5

TUBE OUTLET This part replaces 13881-38B00.

13881-38B01

$24.64

6

CLAMP This part replaces 09402-72207.

09402-72203

$6.35

7

CLAMP

09402-58208

$4.84

8

TUBE, BREATHER

13854-38B00

$20.33

9

CLAMP

09401-15407

$3.08

10

CLIP

09401-14301

$2.17

11

TUBE,DRAIN This part replaces 13870-21628.

13870-21629

$25.85

12

CLAMP | MODEL T/V/W This part replaces 09401-13413.

09401-13417

$2.24

12

CLAMP | MODEL X/Y/K1/K2/K3

09401-13417

$2.24

13

BOLT

01500-06207

$1.99

14

LOCK WASHER

08321-01067

$1.83

15

WASHER

09160-06019

$1.38
