2003 Suzuki VS1400GLP Carburetor Diagram

← All diagrams

Find the part on the Carburetor diagram for your 2003 Suzuki VS1400GLP, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

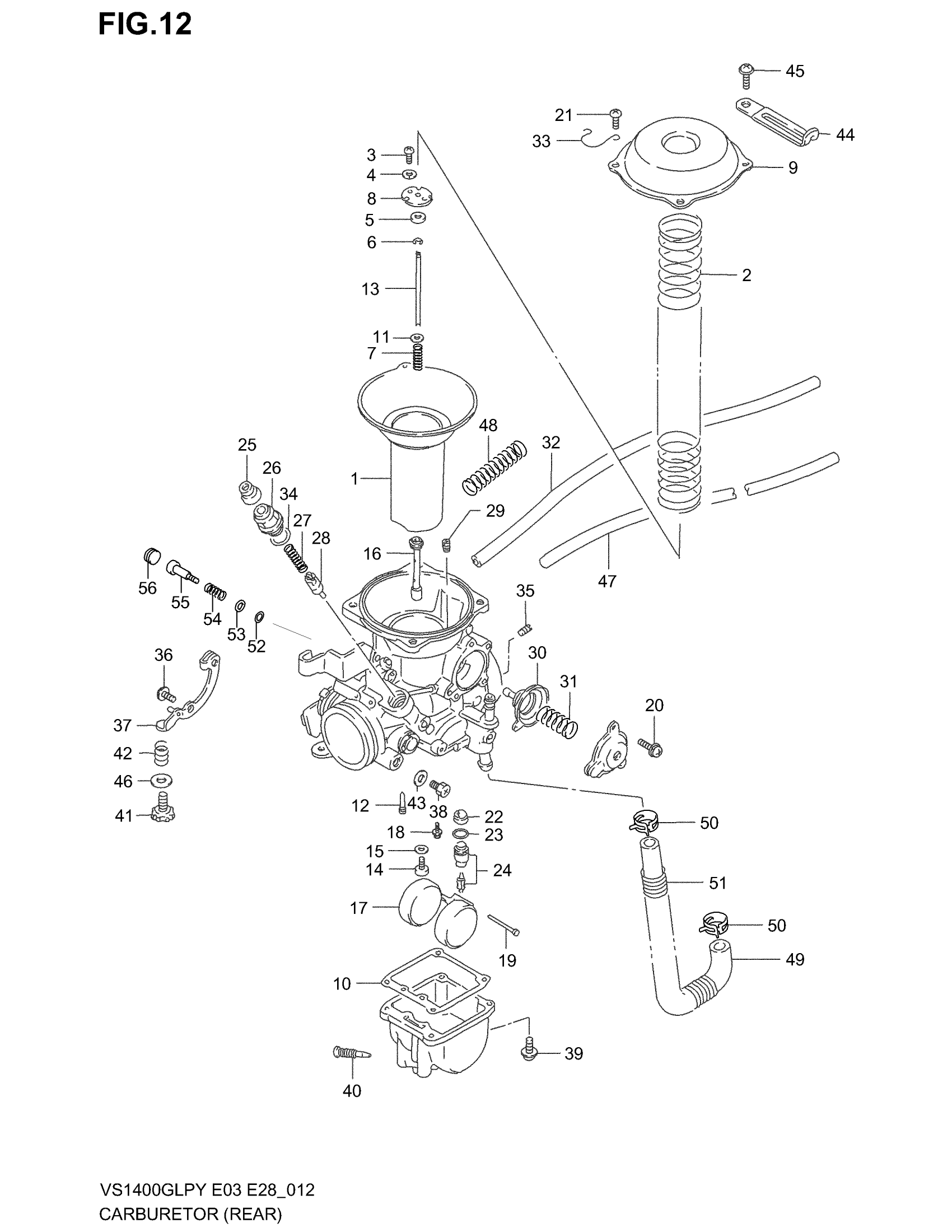

2003 Suzuki VS1400GLP Carburetor Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

CARBURETOR ASSY, REAR | MODEL T E3

13220-38B40

1
Out of stock

CARBURETOR ASSY, REAR | MODEL T E28

13220-38B70

1
Out of stock

CARBURETOR ASSY, REAR | MODEL T E33

13220-38B50

1
Out of stock

CARBURETOR ASSY, REAR | MODEL V/W/X/Y/K1/K2/K3 E3,E28 This part replaces 13220-38BE0.

13220-38BE1

1
Out of stock

CARBURETOR ASSY, REAR | MODEL V/W/X/Y/K1/K2/K3 E33; Includes Item(s) 1 - 48

13220-38BF0

1
Out of stock

1

DIAPHRAGM ASSY

13500-38A10

1
Out of stock

1

DIAPHRAGM ASSY | MODEL T E28

13500-38B10

1
Out of stock

2

SPRING

13503-05A10

1
Out of stock

3

SCREW This part replaces 02112-03063.

02112-0306B

2
Out of stock

4

LOCK WASHER This part replaces 08321-21033.

08321-2103B

2
Out of stock

5

RING

13387-47010

1
Out of stock

6

E RING

13394-10010

1
Out of stock

7

SPRING

13388-44030

1
Out of stock

8

PLATE

13389-37400

1
Out of stock

9

COVER | MODEL T/V/W/X/Y This part replaces 13502-38A10.

13502-45CE0

1
Out of stock

9

COVER | MODEL K1/K2/K3

13502-45CE0

1
Out of stock

10

GASKET

13251-38A10

1
Out of stock

11

WASHER

13382-44030

1
Out of stock

12

JET, PILOT (55)

09492-55014

1
Out of stock

12

JET, PILOT (57.5) | MODEL T E28

09492-57004

1
Out of stock

13

NEEDLE, JET (5D35-1)

13383-38B00

1
Out of stock

13

NEEDLE, JET (5D38-3) | MODEL T E28

13383-38B80

1
Out of stock

14

.JET, MAIN (#140)

09491-28010

1
Out of stock

15

WASHER, NEEDLE JET | MODEL T/V This part replaces 13332-44080.

13382-03110

1
Out of stock

15

WASHER | MODEL W/X/Y/K1/K2/K3

13382-03110

1
Out of stock

16

JET, NEEDLE (P-2) | MODEL T E3,E33

09494-00571

1
Out of stock

16

JET, NEEDLE | MODEL T E28 This part replaces 09494-00573.

09494-00856

1
Out of stock

16

JET, NEEDLE (P-2M) | MODEL V/W/X/Y/K1/K2/K3

09494-00895

1
Out of stock

17

FLOAT

13252-23010

1
Out of stock

18

SCREW

13602-05A10

1
Out of stock

19

PIN

13254-92311

1
Out of stock

20

SCREW This part replaces 02112-04103.

02112-0410A

3
Out of stock

21

SCREW This part replaces 02112-04083.

02112-0408A

3
Out of stock

22

FILTER | MODEL T/V/W/X/Y This part replaces 13376-84110.

13376-19F00

1
Out of stock

22

FILTER | MODEL K1/K2/K3

13376-19F00

1
Out of stock

23

O RING | MODEL T/V/W/X/Y This part replaces 13374-44080.

13374-35C00

1
Out of stock

23

O RING | MODEL K1/K2/K3

13374-35C00

1
Out of stock

24

VALVE ASSY, NEEDLE

13370-39A00

1
Out of stock

25

.CAP This part replaces 13681-04010.

13681-04011

1
Out of stock

26

HOLDER, GUIDE

13418-43410

1
Out of stock

27

SPRING

13417-22010

1
Out of stock

28

PLUNGER ASSY

13411-01400

1
Out of stock

29

JET, PILOT AIR (1.55)

09493-31001

1
Out of stock

29

JET, PILOT AIR (1.9) | MODEL T E28

09493-38002

1
Out of stock

30

DIAPHRAGM ASSY This part replaces 13480-05A10.

13480-05A11

1
Out of stock

31

SPRING

13481-38B40

1
Out of stock

32

HOSE ASSY, FUEL | L:225!175 This part replaces 13683-38A20.

13683-38A21

1
Out of stock

33

CLIP

13692-02500

1
Out of stock

34

.O RING (16) This part replaces 13278-47090.

13278-47091

1
Out of stock

35

JET, PILOT AIR (40) | MODEL T/V This part replaces 09492-40019.

09492-40018

1
Out of stock

35

JET, PILOT AIR (40) | MODEL W/X/Y/K1/K2/K3

09492-40018

1
Out of stock

35

JET, ENRICHMENT | MODEL T E28 This part replaces 09492-60010.

09492-60012

1
Out of stock

36

SCREW

13602-05A30

1
Out of stock

37

LEVER ASSY | MODEL T/V/W/X/Y This part replaces 13554-38B00.

13554-45C20

1
Out of stock

37

LEVER ASSY | MODEL K1/K2/K3

13554-45C20

1
Out of stock

38

SCREW

13605-73000

1
Out of stock

39

SCREW

13601-04148

4
Out of stock

40

SCREW, DRAIN | MODEL T/V/W/X/Y This part replaces 13247-13A00.

13247-02340

1
Out of stock

40

SCREW | MODEL K1/K2/K3

13247-02340

1
Out of stock

41

ADJUSTER | MODEL T/V/W/X/Y This part replaces 13267-38A10.

13267-39E50

1
Out of stock

41

ADJUSTER | MODEL K1/K2/K3

13267-39E50

1
Out of stock

42

SPRING

13271-93011

1
Out of stock

43

WASHER

13249-78100

1
Out of stock

44

CLAMP(L:80) | E33 This part replaces 09404-06434.

09404-06036

1
Out of stock

45

SCREW This part replaces 02142-04083.

02142-0408B

1
Out of stock

46

WASHER

13277-37100

1
Out of stock

47

HOSE (5X8X430) | E33 This part replaces 13683-38B00.

13683-38B01

1
Out of stock

48

SPRING

13446-38B00

1
Out of stock

49

HOSE, FUEL (PUMP & CARB) This part replaces 15801-38B00.

15801-38B01

1
Out of stock

50

CLIP This part replaces 09401-11407.

09401-11415

2
Out of stock

51

SPRING

09440-14030

1
Out of stock

52

O-RING This part replaces 13295-29900.

13295-29901

1
Out of stock

53

WASHER

13291-29900

1
Out of stock

54

.SPRING (NT:45)

13268-47070

1
Out of stock

55

SCREW, PILOT FUEL

13279-47070

1
Out of stock

56

PLUG

13281-05A00

1
Out of stock
