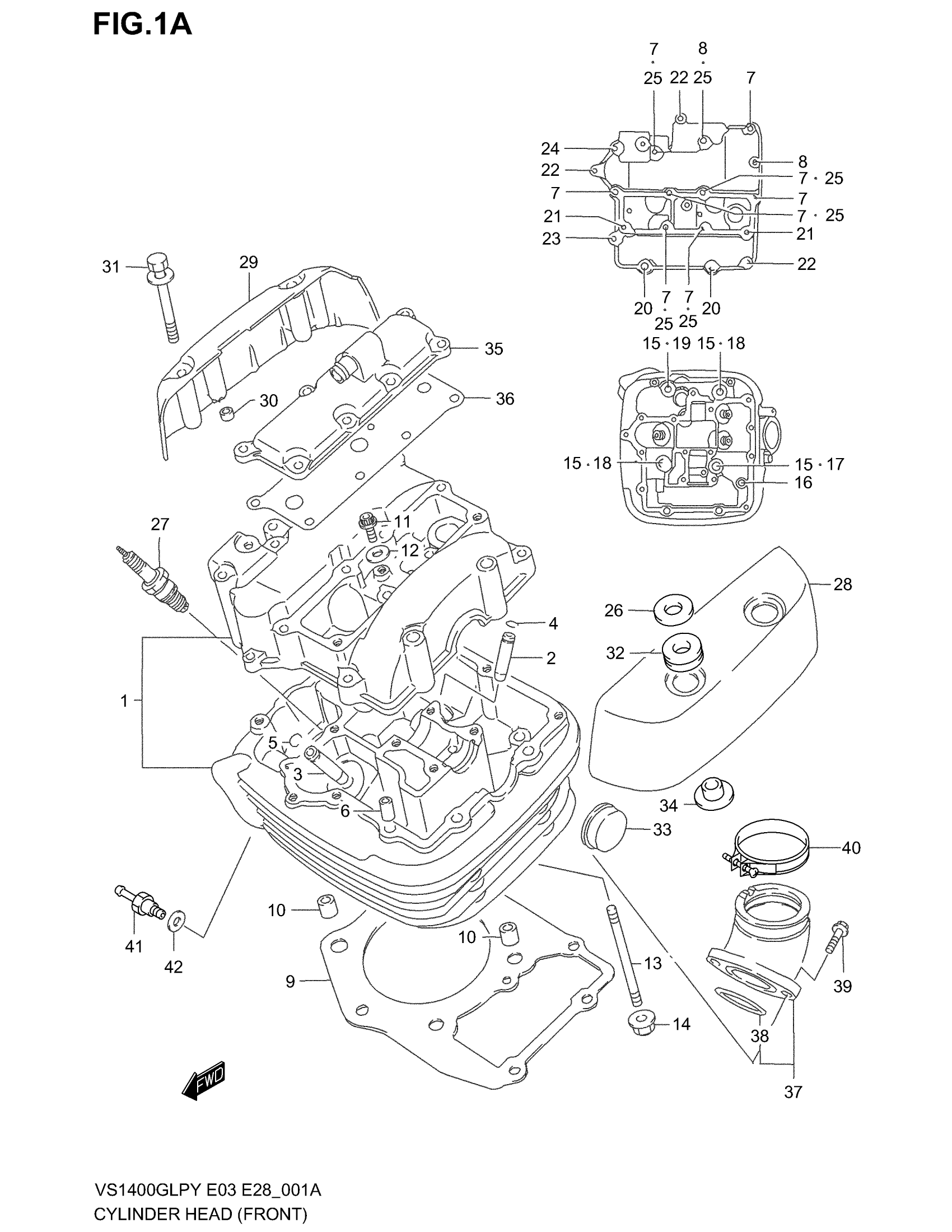

Find the part on the Cylinder Head diagram for your 2003 Suzuki VS1400GLP, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2003 Suzuki VS1400GLP Cylinder Head Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HEAD ASSY, CYLINDER FRONT | MODEL T/V/W

11101-38B20

1
Out of stock

1

HEAD ASSY, CYLINDER FRONT | MODEL X/Y/K1/K2/K3; Includes Item(s) 2 - 8

11101-38B50

1
Out of stock

2

GUIDE, VALVE INTAKE (OS:0.3)

11115-38B70

2
Out of stock

3

GUIDE, VALVE EXHAUST (OS:0.3)

11115-45740

1
Out of stock

4

.RING (10X85)

09381-10004

2
Out of stock

5

RING, VALVE GUIDE EXHAUST

09381-10003

1
Out of stock

6

PIN

09206-08001

2
Out of stock

7

BOLT (6X60)

09103-06064

8
Out of stock

8

BOLT (6X55)

09103-06102

2
Out of stock

9

GASKET, CYLINDER HEAD FRONT

11141-38B00

1
Out of stock

10

PIN

04211-13189

2
Out of stock

11

1

$4.18

In stock

11

BOLT, OIL GALLERY | E.NO.153689% This part replaces 07120-06123.

07120-0612B

1
Out of stock

12

GASKET

09168-06018

1
Out of stock

13

STUD BOLT (L:30)

09108-08142

2
Out of stock

14

NUT

08316-10087

2
Out of stock

15

WASHER | MODEL T

09160-10039

4
Out of stock

15

WASHER (10.5X22X2.3) | MODEL V/W/X/Y/K1/K2/K3 This part replaces 09160-10060.

09160-10039

4
Out of stock

16

BOLT (8X70)

09103-08099

1
Out of stock

17

BOLT (10X180)

09103-10178

1
Out of stock

18

BOLT (10X190)

09103-10179

2
Out of stock

19

BOLT (L:200)

09103-10180

1
Out of stock

20

BOLT (8X268)

09103-08213

2
Out of stock

21

BOLT | %E.NO.153688

01550-06207

2
Out of stock

21

BOLT | E.NO.153689% This part replaces 01550-06203.

01550-0620A

2
Out of stock

22

BOLT | %E.NO.153688

01550-06307

3
Out of stock

22

BOLT | E.NO.153689% This part replaces 01550-06303.

01550-0630A

3
Out of stock

23

BOLT | %E.NO.153688

01550-06357

1
Out of stock

23

BOLT | E.NO.153689% This part replaces 01550-06353.

01550-0635A

1
Out of stock

24

BOLT | %E.NO.153688

01550-06707

1

$4.68

In stock

24

BOLT | E.NO.153689% This part replaces 01550-06703.

01550-0670B

1
Out of stock

25

GASKET

09168-06023

6
Out of stock

26

WASHER | MODEL T/V This part replaces 09160-08098.

09160-08130

2
Out of stock

26

WASHER | MODEL W/X/Y/K1/K2/K3

09160-08130

2
Out of stock

27

SPARK PLUG (NGK,DPR8EA-9)

09482-00334

1
Out of stock

27

SPARK PLUG (DENSO,X24EPR-U9) This part replaces 09482-00335-111.

09482-00335

1
Out of stock

27

SPARK PLUG (NGK,DPR7EA-9) | MODEL T/V/W OPT This part replaces 09482-00352.

09482-00354

1
Out of stock

27

NO DESCRIPTION AVAILABLE | MODEL T/V/W OPT This part replaces 09482-00353-111.

09482-00353

1
Out of stock

27

SPARK PLUG (NGK,DPR9EA-9) | MODEL T/V/W OPT This part replaces 09482-00328.

09482-00330

1
Out of stock

27

SPARK PLUG (ND,X27EP-U9) | MODEL T/V/W OPT

09482-00329-111

1
Out of stock

27

SPARK PLUG (NGK,DPR7EA-9) | OPT

09482-00354

1
Out of stock

27

SPARK PLUG (NGK,DPR7EA-9) | OPT This part replaces 09482-00355-111.

09482-00354

1
Out of stock

27

SPARK PLUG (NGK,DPR9EA-9) | OPT

09482-00330

1
Out of stock

27

SPARK PLUG (DENSO,X27EPR-U9) | OPT This part replaces 09482-00331-111.

09482-00331

1
Out of stock

28

CAP, HEAD COVER LH

11171-38B00

1
Out of stock

29

CAP, HEAD COVER RH

11172-38B00

1
Out of stock

30

CUSHION, HEAD COVER CAP

11273-24B00

2
Out of stock

31

2

$3.51

In stock

32

CUSHION

09320-13015

2
Out of stock

33

PLUG, CYLINDER HEAD

09241-30008

1
Out of stock

34

BUSH

09301-08007

2
Out of stock

35

COVER, BREATHER

11180-38B10

1
Out of stock

36

GASKET, BREATHER COVER

11177-38B01-H17

1
Out of stock

38

O RING (D:2.4,ID:41.7)

09280-42003

1
Out of stock

39

BOLT This part replaces 01550-06163.

01550-0616A

2
Out of stock

40

CLAMP, INTAKE PIPE

09402-52501

1
Out of stock

41

UNION, INTAKE PORT

09362-06002

1
Out of stock

42

GASKET

09168-06018

1
Out of stock
