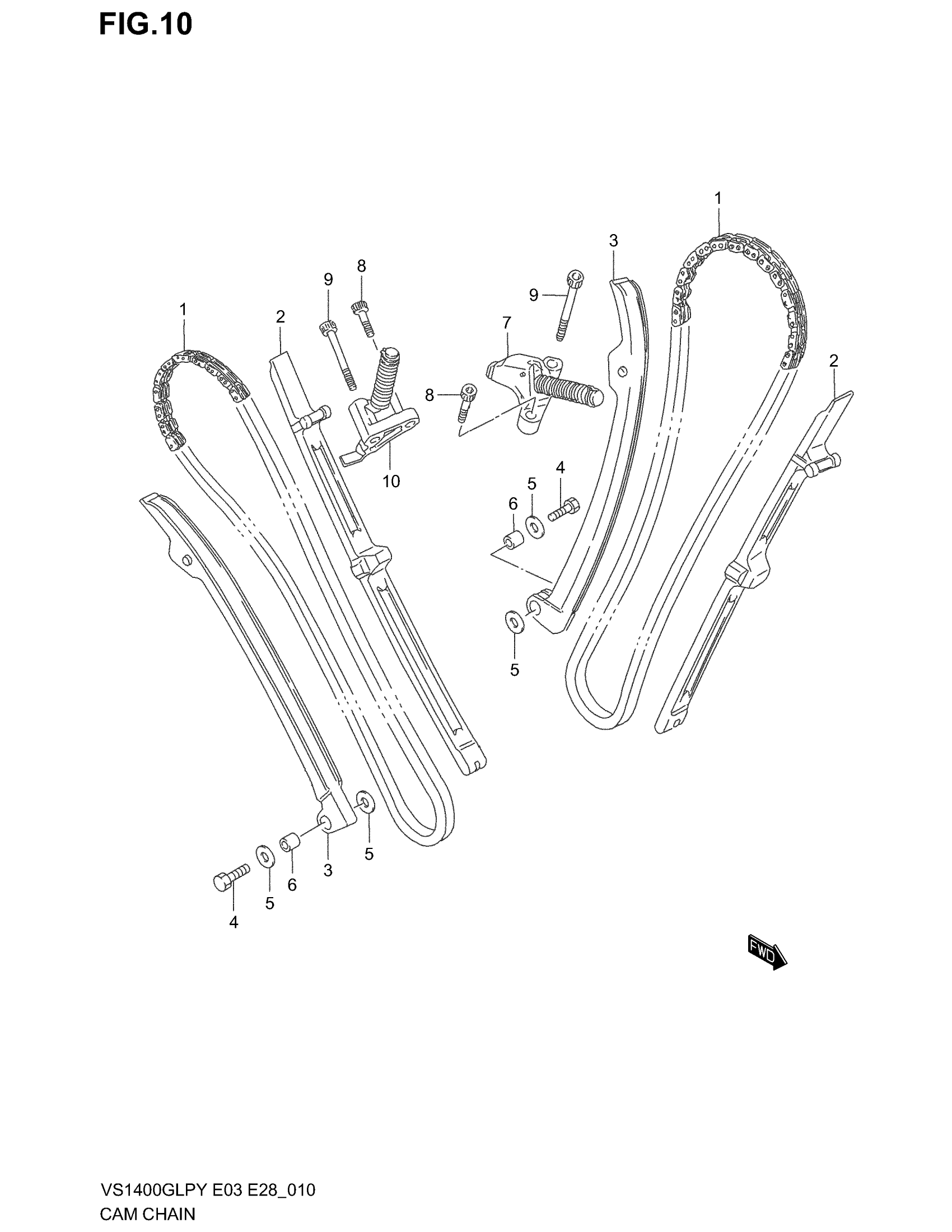

Suzuki VS1400GLP (2003) CAM CHAIN Diagram

#

Description

Price

1

CHAIN, CAM SHAFT DRIVE

12760-38B00

$146.87

2

GUIDE, CAM CHAIN

12771-38B00

$81.27

3

TENSIONER, CAM CHAIN

12811-38B00

$79.35

4

BOLT (6X26)

09100-06129

$2.58

5

WASHER

08211-06182

$2.08

6

SPACER

09180-06184

Unavailable

7

ADJUSTER ASSY, TENSIONER FRONT This part replaces 12831-38A00.

12831-38A01

$168.88

8

BOLT, FRONT BRG HOUSING This part replaces 07130-06203.

07130-0620B

$2.80

9

BOLT This part replaces 07130-06453.

07130-0645B

$4.45

10

ADJUSTER ASSY, TENSIONER REAR This part replaces 12832-38A00.

12832-38A01

$173.67
