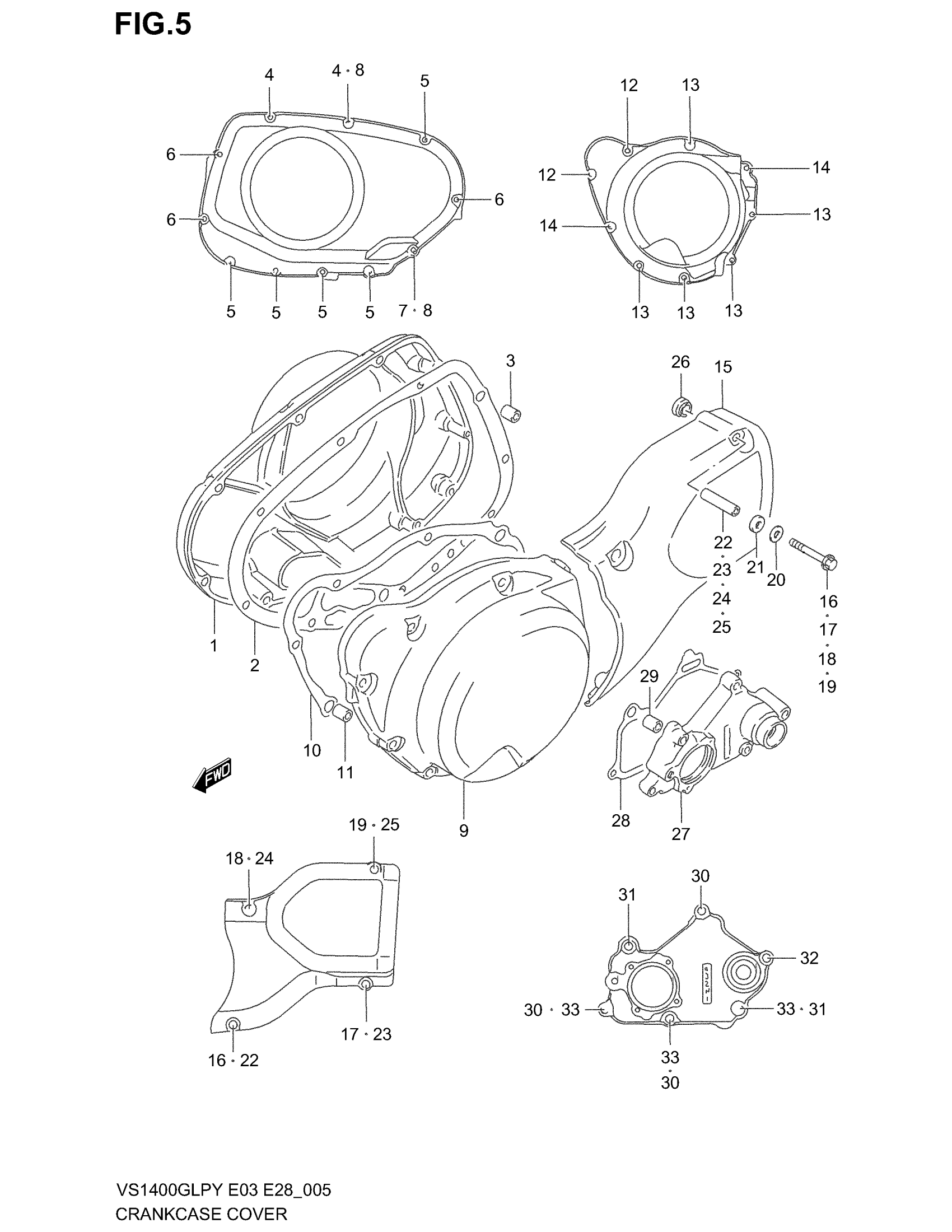

Suzuki VS1400GLP (2003) CRANKCASE COVER Diagram

#

Description
Price

1

COVER, CLUTCH | %F.NO.W2101994 !11341-38B01 W/01547-06307(2PCS) This part replaces 11341-38B00.

11341-38B01

Unavailable

1

COVER, CLUTCH | F.NO.W2101995%

11341-38B01

Unavailable

2

GASKET, CLUTCH COVER | MODEL T/V This part replaces 11482-38B00-H17.

11482-38B20

$22.07

2

GASKET, CLUTCH COVER | MODEL W/X/Y/K1/K2/K3 This part replaces 11482-38B10.

11482-38B20

$22.07

3

PIN

04211-09189

$1.70

4

BOLT | %F.NO.W2101994

01547-06257

$2.09

4

BOLT | F.NO.W2101995%

01547-06307

$2.13

5

BOLT

01547-06307

$2.13

6

BOLT

01547-06407

$2.40

7

BOLT

01547-06557

$2.42

8

GASKET (5.8X11X1.2) | %E.NO.175273

09168-06024

$2.19

8

GASKET (5.8X13X1.2) | E.NO.175274%

09168-06023

$2.09

9

COVER, GENERATOR

11351-38B00

$398.18

10

GASKET, GENERATOR COVER This part replaces 11483-38B00-H17.

11483-38B10

$11.30

11

PIN (11X20) | MODEL T This part replaces 09206-11005.

09206-11017

$6.85

11

PIN | MODEL V/W/X/Y/K1/K2/K3

09206-11017

$6.85

12

BOLT

01547-06307

$2.13

13

BOLT

01547-06357

$2.09

14

BOLT

01547-06457

$2.39

15

COVER, SECONDARY CASE

11361-38B00

Unavailable

16

BOLT

01547-06357

$2.09

17

BOLT

01547-06407

$2.40

18

BOLT

01547-06607

$3.47

19

BOLT

01547-06607

$3.47

20

WASHER | MODEL T/V This part replaces 09160-06097.

09160-06125

$1.97

20

WASHER | MODEL W/X/Y/K1/K2/K3

09160-06125

$1.97

21

CUSHION, OUTER

09161-09005

$2.40

22

SPACER (L:18.2)

09180-06301

Unavailable

23

SPACER (L:23)

09180-06302

$5.81

24

SPACER (L:43)

09180-06303

$9.90

25

SPACER (L:45.9) | %E.NO.155401 This part replaces 09180-06183.

09180-06281

$9.33

25

SPACER (L:45.9) | E.NO.155402%

09180-06281

$9.33

26

CUSHION, INNER

09161-09005

$2.40

27

COVER, GEAR SHIFT | MODEL T E3,E33

11371-38B01

Unavailable

27

COVER, GEAR SHIFT | MODEL T E28 This part replaces 11371-38B10.

11371-38B20

Unavailable

27

COVER, GEAR SHIFT | MODEL V/W This part replaces 11371-38B10.

11371-38B20

Unavailable

27

COVER, GEAR SHIFT | MODEL X/Y/K1/K2/K3

11371-38B20

Unavailable

28

GASKET, GEAR SHIFT COVER | MODEL T/V This part replaces 11485-38B00-H17.

11485-38B20

$8.57

28

GASKET, GEAR SHIFT COVER | MODEL W/X/Y/K1/K2/K3 This part replaces 11485-38B10.

11485-38B20

$8.57

29

PIN

04211-09109

$1.70

30

BOLT

01547-06257

$2.09

31

BOLT

01547-06357

$2.09

32

BOLT

01547-06457

$2.39

33

GASKET (5.8X11X1.2) | %E.NO.175273

09168-06024

$2.19

33

GASKET (5.8X13X1.2) | E.NO.175274%

09168-06023

$2.09
