2009 Suzuki VS1400 Transmission Diagram

← All diagrams

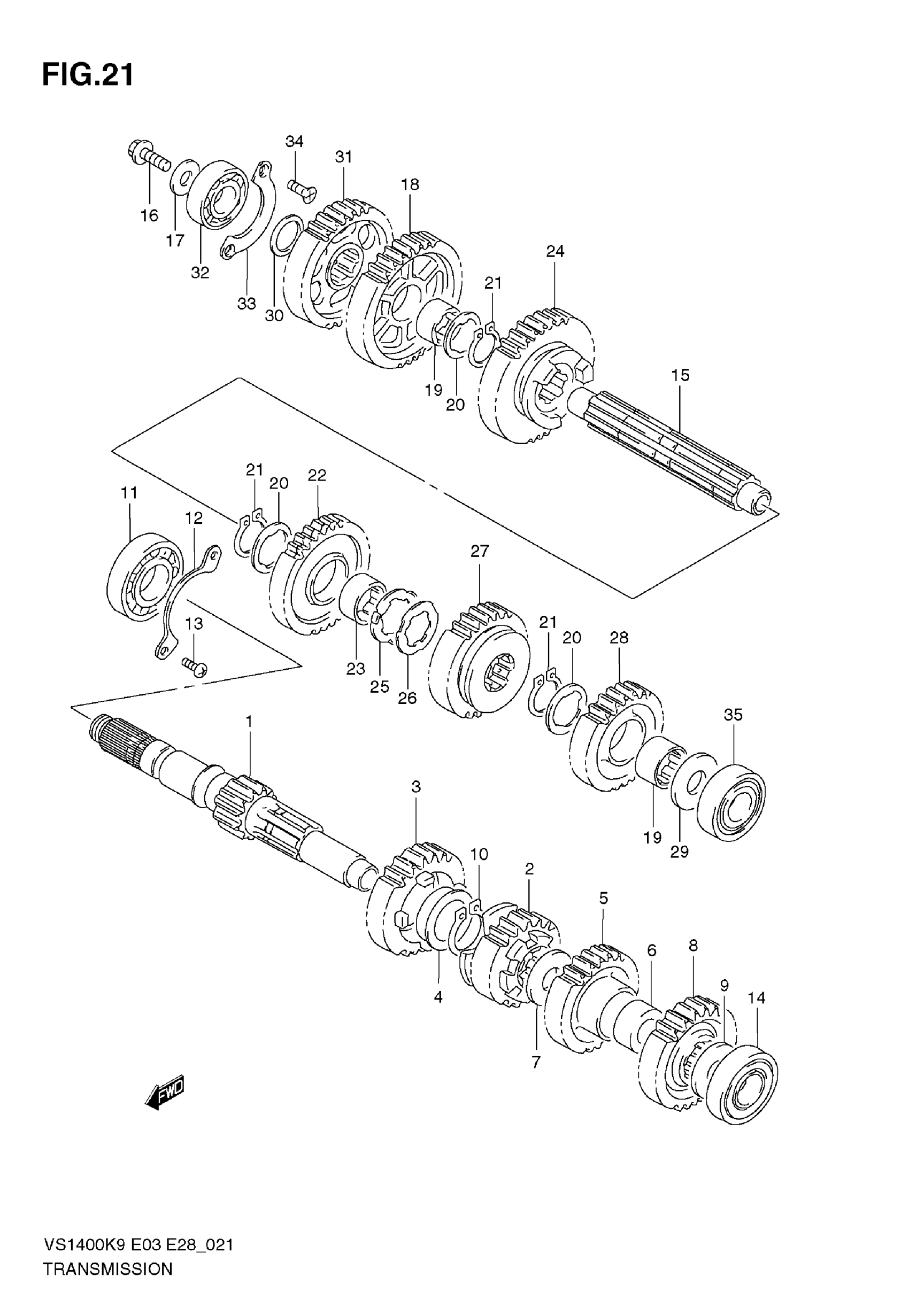

Find the part on the Transmission diagram for your 2009 Suzuki VS1400, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2009 Suzuki VS1400 Transmission Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

COUNTERSHAFT (NT:12)

24120-38B10

1
Out of stock

2

GEAR, 2ND DRIVE (NT:17)

24221-38B12

1
Out of stock

3

GEAR, 3RD DRIVE (NT:21)

24231-38B11

1
Out of stock

4

BUSH, 3RD DRIVE GEAR

09301-28001

1

$21.67

In stock

5

GEAR, 4TH DRIVE (NT:24)

24241-38B11

1
Out of stock

6

BUSH, 4TH DRIVE GEAR

24242-38B10

1
Out of stock

7

WASHER (22X32X1.0)

09181-22195

1
Out of stock

8

GEAR, 5TH DRIVE (NT:25)

24251-38B11

1
Out of stock

9

WASHER (20X32X1.0)

09181-20223

1
Out of stock

10

1

$2.67

In stock

11

1

$42.13

In stock

12

RETAINER, COUNTER

24741-38A00

1
Out of stock

13

SCREW (6X12)

09125-06110

2

$2.31

In stock

14

1

$42.13

In stock

15

DRIVE SHAFT

24131-38B20

1
Out of stock

16

BOLT

09103-10112

1
Out of stock

17

WASHER

08211-10305

1
Out of stock

18

GEAR, 1ST DRIVEN (NT:36)

24311-38B20

1
Out of stock

19

BUSH

24332-24A00

2
Out of stock

20

WASHER (28.1X38X1)

09167-28001

3

$5.00

In stock

21

3

$2.67

In stock

22

GEAR, 2ND DRIVEN (NT:31)

24321-38B20

1
Out of stock

23

BUSH, 2ND DRIVEN GEAR

24332-49000

1

$19.95

In stock

24

GEAR, 3RD DRIVEN (NT:28)

24331-38B12

1
Out of stock

25

LOCK WASHER, RH

09169-28001

1

$4.18

In stock

26

LOCK WASHER, RH

09167-28002

1

$5.17

In stock

27

GEAR, 4TH DRIVEN (NT:25)

24341-38B12

1
Out of stock

28

GEAR, 5TH DRIVEN (NT:24)

24351-38B11

1
Out of stock

29

WASHER

08211-20382

1
Out of stock

30

WASHER (22X32X3)

09160-22032

1

$5.80

In stock

31

GEAR, OVERDRIVING (NT:34)

24621-38B00

1
Out of stock

32

1

$82.58

In stock

33

RETAINER, DRIVE BEARING

24741-38401

1
Out of stock

34

SCREW (6X12)

09126-06011

2
Out of stock

35

1

$42.13

In stock
