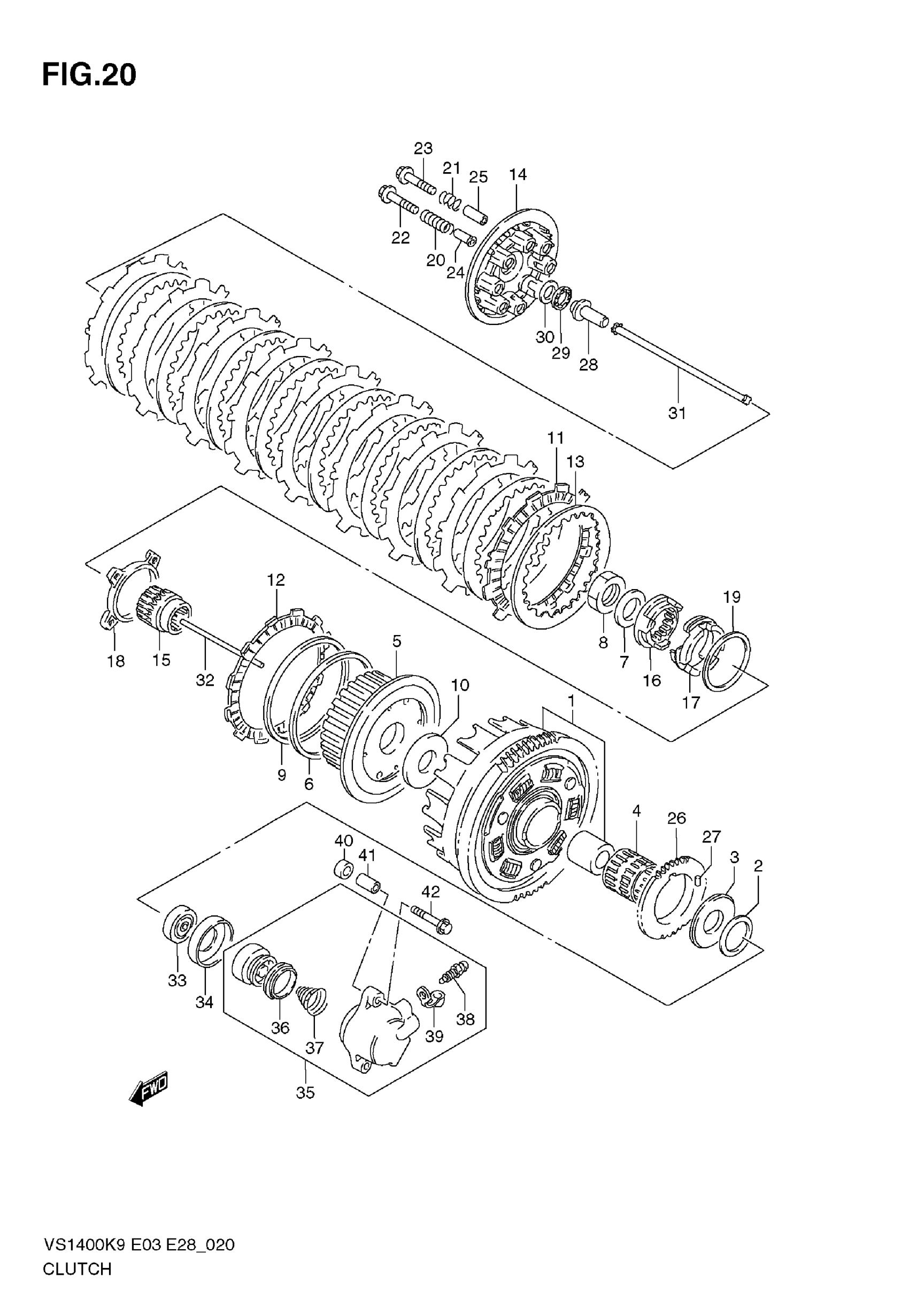

Suzuki VS1400 (2009) CLUTCH Diagram

#

Description
Price

1

GEAR, PRIMARY DRIVEN (NT:79)

21200-38823

$506.95

2

WASHER, INNER (25X38X2.5)

09160-25066

$6.71

3

WASHER (25X54X2.5)

09160-25037

$9.62

4

BEARING (35X40X35.8)

09263-35017

$37.12

5

HUB, SLEEVE

21410-38B00

$186.88

6

SEAT, WAVE WASHER

21471-37400

$8.95

7

WASHER (22.4X45X2.50)

09164-22008

$8.96

8

NUT

09140-22011

Unavailable

9

WASHER (110.5X119X0.9)

09164-00004

$10.39

10

WASHER (25X60X2.50)

09160-25065

$20.32

11

PLATE, DRIVE NO.1

21441-12D01

$18.89

12

PLATE, CLUTCH DRIVE NO.2

21442-37401

$17.09

13

PLATE, DRIVEN

21451-05A00

$9.26

14

DISC, PRESSURE

21462-38B00

Unavailable

15

SPACER

21621-38B00

Unavailable

16

CAM, CLUTCH NO.1

26111-38B03

Unavailable

17

CAM, CLUTCH NO.2

26112-38B02

Unavailable

18

SLIDER, CLUTCH SPRING

21613-38B01

$82.18

19

WASHER, THRUST (54X62X1)

09160-54002

Unavailable

20

SPRING

09440-14021

$3.47

21

SPRING, NO.2

09440-14022

$3.47

22

BOLT (6X40)

09116-06135

$2.87

23

BOLT, NO.2 (6X35)

09116-06136

$2.53

24

SPACER (6.1X9X25.1)

09180-06177

$6.77

25

SPACER (6.1X9X24.1)

09180-06276

$5.52

26

GEAR, OIL PUMP DRIVE (NT:40)

16321-38B00

Unavailable

27

PIN

09261-06002

$1.61

28

PIECE, PUSH

23121-38B00

$31.18

29

BEARING (15X28X2)

09263-15003

$7.49

30

WASHER (15X28X1)

09160-15045

$3.52

31

ROD, PUSH RH

23110-38B00

$21.22

32

ROD, PUSH LH

23111-24A01

$12.18

33

OIL SEAL

09283-06010

$15.16

34

RETAINER

23117-38A00

$4.75

35

CYLINDER COMP,C | Includes Item(s) 36 - 39 This part replaces 23160-38B00.

23160-38B01

$93.07

36

CUP

23163-06B00

$6.61

37

SPRING

23164-05A00

$3.97

38

BLEEDER

59121-01A00

$7.99

39

CAP

59122-01A00

$3.97

40

SPACER (9X16X11)

09180-09019

$7.37

41

PIN

09206-09011

$9.53

42

BOLT

01550-0640A

$2.43
